SCHNEIDER ELECTRIC 9001KR1YH13 Non-illuminated Push Button 30mm 1no/1nc | AG6QRR 45C495

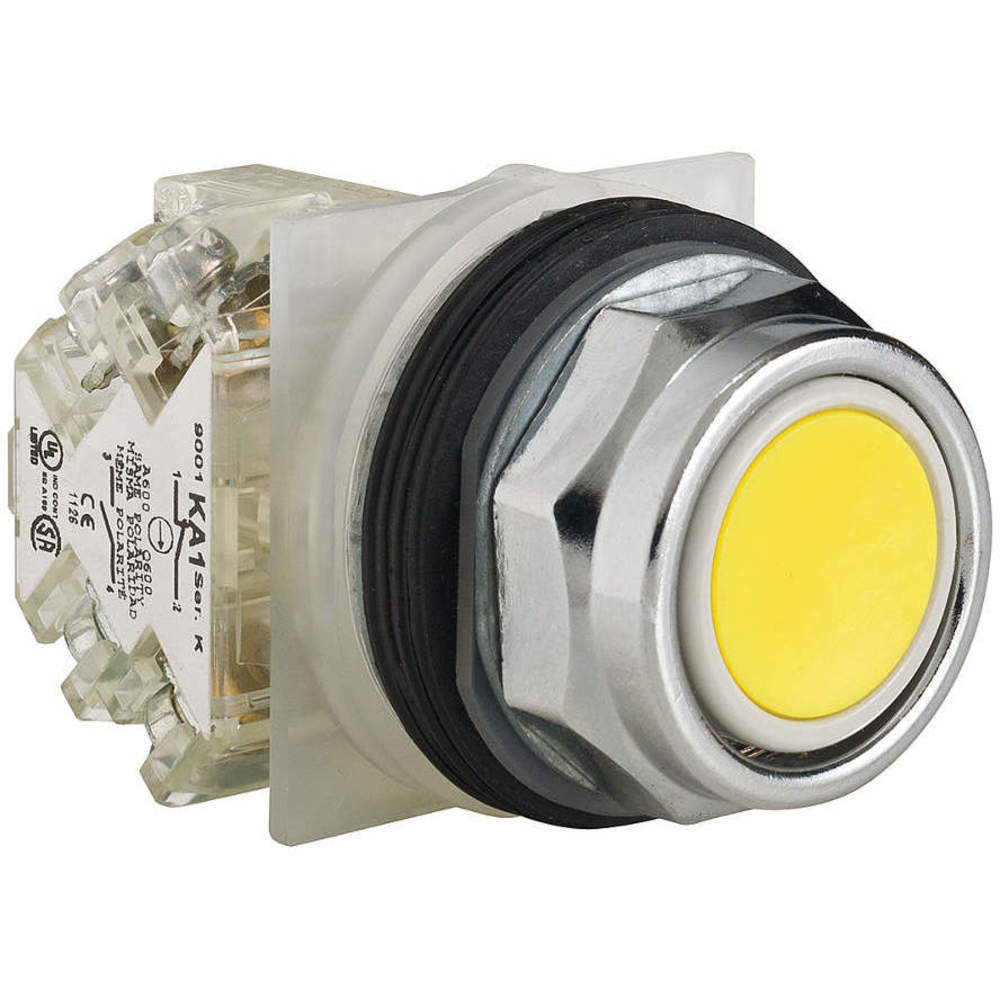

SCHNEIDER ELECTRIC 9001KR1YH13 Non-illuminated Push Button 30mm 1no/1nc

Item: AG6QRR Model: 9001KR1YH13Cross Ref: 45C495
In Stock

Get it by Thursday, Jun 12

Flat Shipping at €24.99 + VAT €24.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.

€242.04 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemNon-Illuminated Push Button
Action TypeMomentary
Basic MaterialMetal
Cap/operator Or Lens ColourYellow
ColorYellow
Contact Rating10A @ 600V AC
Device PresentationComplete Product
Head MaterialMetal
LegendNo Legend
MaterialMetal
Mounting Diameter30 mm
Nema Contact Rating DesignationA600/Q600
Nema RatingNEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13
Number Of Operators1
Terminal ConnectionPressure Plate
Terminal Connection TypePressure Plate
Type Of OperatorFull Guard
Ac Contact Rating1.2A @ 600V, 1.5A @ 480V, 3A @ 240V, 6A @ 120V
ActionMomentary
Bezel MaterialMetal
Contact FormSPDT
Dc Contact Rating0.1 A @ 600 V, 0.27 A @ 250 V, 0.55 A @ 125 V
Display Qty1
Head/lens ColorYellow
Ip RatingIP20, IP65
Manufacturer Warranty Length18 Months
Nema Enclosure RatingNEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13
Number Of Indicator Lights0
Operating Temperature - Maximum140°F
Operating Temperature - Minimum-22°F
Operator IlluminationNon Illuminated
Operator MaterialMetal
Operator Voltage Rating - Maximum600V AC
Panel Mounting Hole Diameter30 mm
Product TypePush Button Operators
Push Button StyleFlush
Series9001K Series
StandardsCE, CSA LR25490 CLASS 3211 03, REACH, ROHS, UL E42259 CCN NKCR, WEEE

Shipping Info:

Ship weight (kg) 0.135
Ship height (cm)5.38
Ship length (cm)9.19
Ship width (cm)4.6
HS code8536509065
Country of OriginMX

Product Variants

ProductModelType Of OperatorDiameterAction TypeNema RatingLegendTerminal ConnectionNumber Of OperatorsContact RatingPrice
SCHNEIDER ELECTRIC 9001KR1BH5 Non-illuminated Push Button 30mm 1no Black | AF9GFX 2EN14 9001KR1BH5Full Guard-MomentaryNEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13No LegendPressure Plate110A @ 600V AC€102.54
SCHNEIDER ELECTRIC 9001KR1BH6 Non-illuminated Push Button 30mm 1nc Black | AF9GFY 2EN15 9001KR1BH6Full Guard-MomentaryNEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13No LegendPressure Plate110A @ 600V AC€102.54
SCHNEIDER ELECTRIC 9001KR1RH13 Non-illuminated Push Button 30mm 1no/1nc Red | AF9GGB 2EN18 9001KR1RH13Full Guard-MomentaryNEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13No LegendPressure Plate110A @ 600V AC€278.43
SCHNEIDER ELECTRIC 9001KR1GH13 Non-illuminated Push Button 30mm 1no/1nc Green | AF9KFD 2XVR9 9001KR1GH13Full Guard-MomentaryNEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13No LegendPressure Plate110A @ 600V AC€278.43
SCHNEIDER ELECTRIC 9001KR1GH5 Non-illuminated Push Button 30mm 1no Green | AF9KFE 2XVT1 9001KR1GH5Full Guard-MomentaryNEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13No LegendPressure Plate110A @ 600V AC€102.54
SCHNEIDER ELECTRIC 9001KR1GH6 Non-illuminated Push Button 30mm 1nc Green | AF9KFF 2XVT2 9001KR1GH6Full Guard-MomentaryNEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13No LegendPressure Plate110A @ 600V AC€102.54
SCHNEIDER ELECTRIC 9001KR1RH5 Non-illuminated Push Button 30mm 1no Red | AF9KFG 2XVT3 9001KR1RH5Full Guard-MomentaryNEMA 1, NEMA 2, NEMA 3, NEMA 3R, NEMA 4, NEMA 6, NEMA 12, NEMA 13No LegendPressure Plate110A @ 600V AC€102.54
