RIDGID 15682 Pipe Threading Machine 1/8 to 2 Inch | AH9KHA 3Z987

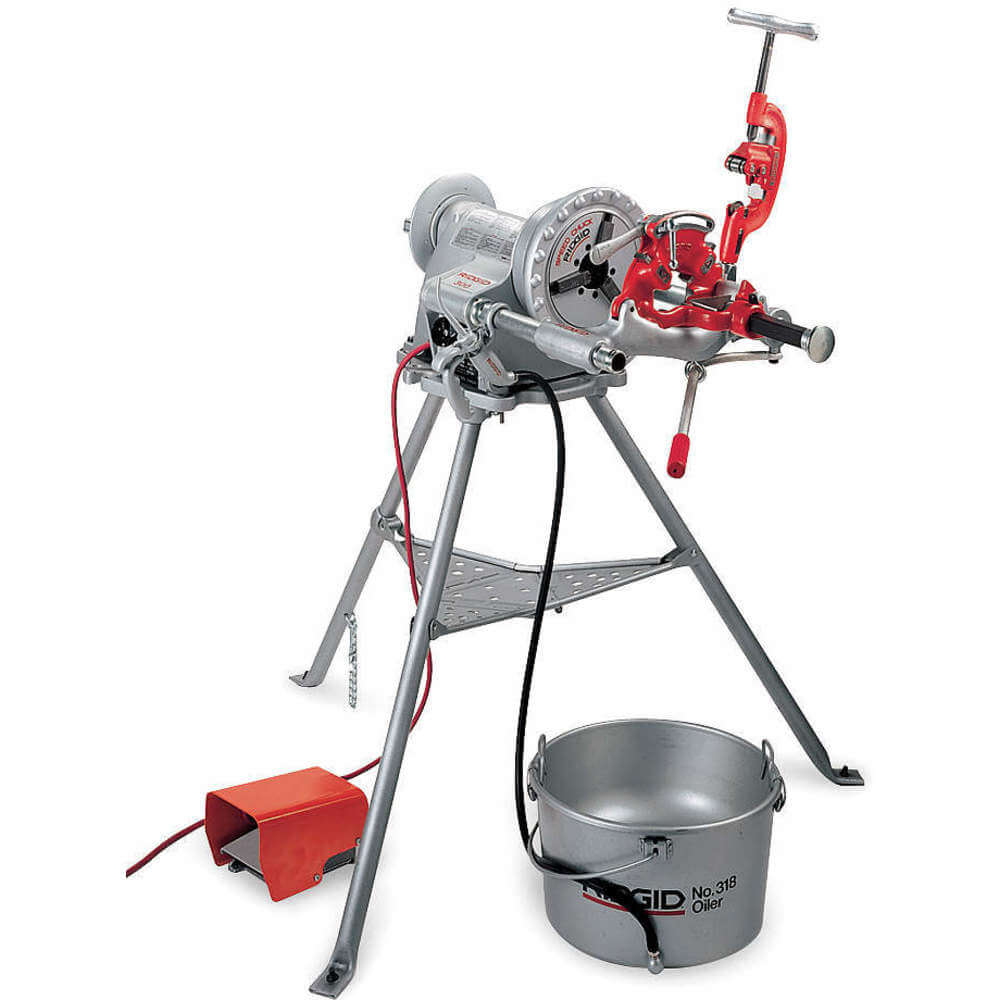

RIDGID 15682 300 Complete Pipe Threading Machine 1/8 to 2 Inch

Item: AH9KHA Model: 15682Cross Ref: 3Z987 / 300 Complete
See variants (2)
In Stock
Check Availability

Get it by Friday, Jun 13

€8,140.55 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemPipe Threading Machine
ChuckSpeed Grip Chuck With Replaceable Jaw Inserts
Corded/wirelessCorded
Frequency25-60 Hz
Hp1/2 hp
No Load Rpm38 RPM
Oil Capacity1 gal.
Overall Length19"
Overall Width15 1/2"
Phase1
ReversingYes
Switch TypeForward/Off/Reverse Switch And Integral On/Off Foot Switch
Chuck TypeManual
Current15A
Die Head Sizes1/2" to 2"
FeaturesRear Centering Device
Free Speed38 RPM
Head Opening TypeQuick Opening
Horsepower1/2 hp
Includes1 gal Premium Thread Cutting Oil, Carriage with Lever, Clip-On Tool Tray, Full Floating Self Centering Cutter, Oiler, Quick-Open Right Hand NPT Die Head, Reamer, Stand, Transporter
Kit ContentsBare Tool
Machine TypeStationary Power Threading Machine
Max. Bolt Size2"
Max. Pipe Dia.2"
Min. Bolt Size1/4"
Min. Pipe Dia.1/8"
Motor TypeStandard
Mount TypeStand
No. Of Die Heads1
No. Of Speeds1
Plug TypeThree-Prong
PortabilityPortable
Power SourceCorded
Pump TypeHand Pump
ReversibleYes
StandardsNRTLC, UL LISTED
Thread TypeNPT
Threading Equipment Included(2) Die Sets, Cutter, Die Head, Oiler, Reamer, Stand
Through-the-head OilingYes
Tool SeriesSeries 300
Tool Weight212 lbs.
Voltage120V

Shipping Info:

Ship weight (kg) 95.4
Ship height (cm)117.6
Ship length (cm)60.96
Ship width (cm)42.42
Country of OriginUS

Product Details:

RIDGID 15682 pipe threading machine is used to create threaded ends to connect pipes and fittings in sprinkler systems, gas lines and drain lines.

Features:

  • This pipe threading machine is equipped with a stand to provide a stable base for reaming pipes.
  • It features an all-weather 418 oiler that pumps 50% more oil per stroke than conventional hand-held oilers.
  • It has an ON/OFF foot switch and a heavy-duty FOR/OFF/REV switch.
  • It includes a cutter, a 5-flute right-hand reamer, a carriage with lever, an oil pan, a set of 1 to 2-inch universal alloy dies, a set of 1/2 to 3/4-inch universal alloy dies, a stand and a universal quick-opening die head.

Compatible Accessories:

Standards and Approvals:

  • UL
  • NRTLC

Frequently Asked Questions:

Q. What size of pipe threading machine die heads is used in RIDGID 15682 pipe threading machine?

A. The die head sizes used in this machine range from 1/8 to 2 inches.

Q. What is the oil capacity of RIDGID 15682 pipe threading machine?

A. This machine has an oil capacity of 1 gallon.

Product Variants

ProductModelHpOverall LengthOverall WidthReversingNo Load RpmOil CapacityPhaseCorded/wirelessPrice
RIDGID 93287 Pipe Threading Machine 1/8 To 2 In | AD2NHA 3RY43 932871/2 hp38 1/8"20 1/2"Yes36 RPM1.75 gal.1-€10,500.85
RIDGID 26092 Pipe Threading Machine 1/4 To 4 In | AD6ZVQ 4CW39 260921 1/2 hp18 1/2"72 1/2"No12/36 RPM-1-€14,139.16
