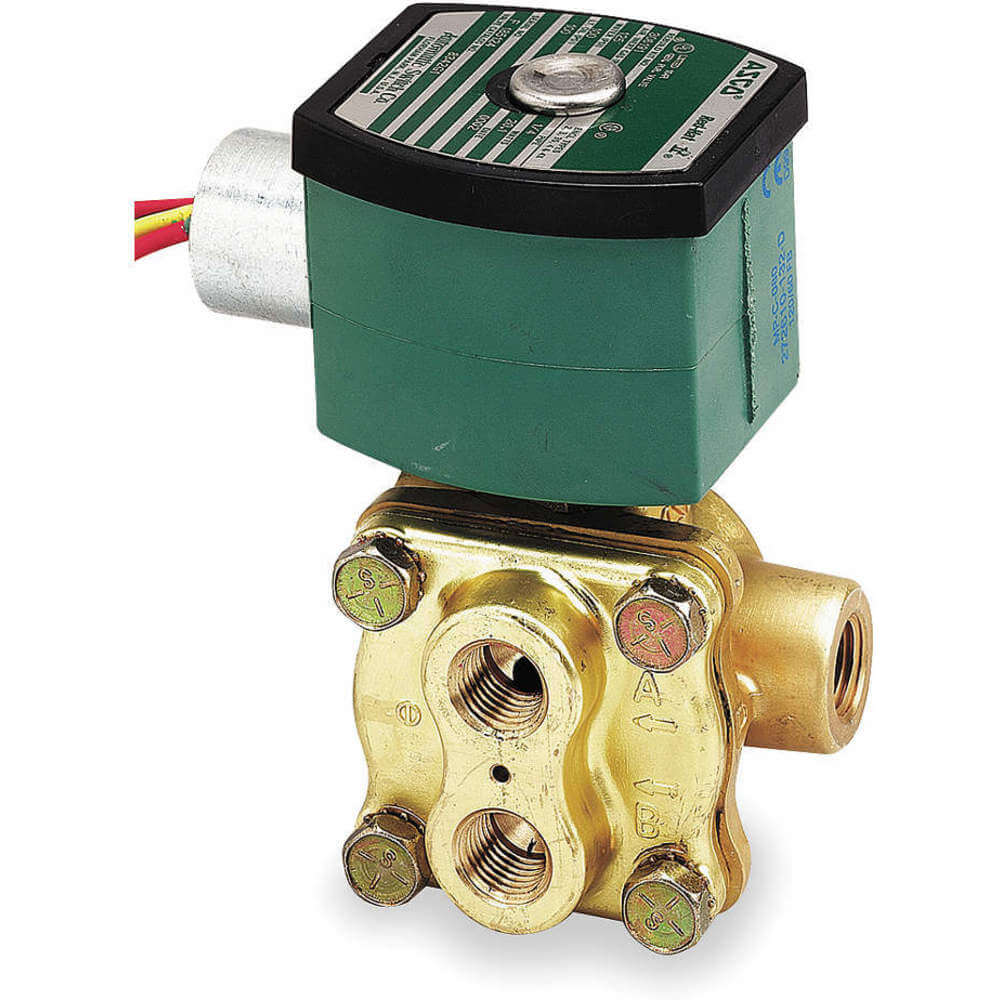

RED HAT 8342G020 Dual Solenoid Valve 4/2 1/4 Inch 120/110v | AB7ZRE 24W661

ASCO VALVES 8342G020 Dual Solenoid Valve 4/2 1/4 Inch 120/110v

Item: AB7ZRE Model: 8342G020Cross Ref: 24W661
In Stock

Get it by Tuesday, Jun 17

Flat Shipping at €24.99 + VAT €24.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.

€761.96 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemSolenoid Valve
Body MaterialBrass
Center Line Pipe Center Size2 1/2"
ClassClass F
Coefficient Of Volume0.7
Coil EnclosureWatertight No Junction Box
Coil Insulation ClassF
Hz50/60 Hz
Max. Fluid Temp.160°F
Max. Operating Pressure Differential Air/inert Gas125 psi
Max. Operating Pressure Differential Light Oil125 psi
Max. Operating Pressure Differential Water125 psi
Media TypeAir, Inert Gas, Light Oil, Water
Min. Operating Pressure Differential0 psi
Nema RatingNEMA 1, NEMA 2, NEMA 3, NEMA 3S, NEMA 4, NEMA 4X
OperationDirect Acting
Orifice Dia.0.188"
Overall Height6 1/4"
Overall Length2 5/8"
Overall Width2.688"
Pipe Size1/4"
Seal MaterialNbr
Valve ConfigurationConfigurable
Valve Ways And Positions4 Ways And 2 Positions
Voltage24-480V AC
Wattage16.1 W
ApplicationAnalytical And Diagnostic Equipment, Biofuel And Heating Systems, Dust Collector Systems, Heating Equipment, Refining Applications
Coefficient Of Volume (cv)0.7
Electrical Connections1/2" Conduit w/18" Leads
For MediaAir, Inert Gases, Light Oil, Water
Frequency60 Hz
Includes CoilYes
Includes SealYes
Inlet Connection TypeNPTF
Ip RatingIP66
Max. Ambient Temperature125°F
Max. Fluid Temperature160°F
Max. Operating Pressure Differential - Air/inert Gas125 psi
Max. Operating Pressure Differential - Light Oil100 psi
Max. Operating Pressure Differential - SteamNot Rated
Max. Operating Pressure Differential - Water100 psi
Min. Ambient Temperature32°F
Mounting OrientationHorizontal, Vertical
Nominal Pipe Size1/4"
Operating EnvironmentIndoor, Outdoor
Operation TypeDirect Acting
Orifice Diameter3/16"
Outlet Connection TypeNPTF
StandardsCSA, UL LISTED
Valve Positions2 Position
Valve TypeNAMUR Mount
Valve Ways4-Way

Shipping Info:

Ship weight (kg) 1.7325
Ship height (cm)21.34
Ship length (cm)10.92
Ship width (cm)8.38
HS code8481809005
Country of OriginMX

Product Variants

ProductModelValve Ways And PositionsValve ConfigurationPipe SizeVoltageOperationBody MaterialSeal MaterialMin. Operating Pressure DifferentialPrice
RED HAT HT8353G041V120/60 110/50DA Solenoid Valve 2/2 1 Inch Nc 120/110v Aluminium | AB7ZPV 24W626 HT8353G041V120/60 110/50DA2 Ways And 2 PositionsNormally Closed1"24-480V ACPilot OperatedAluminumFKM5 psi€392.86
RED HAT EFHC8321G001125/DCDD Solenoid Valve 3/2 1/4 Inch Nc 125v Brass | AB7ZQQ 24W647 EFHC8321G001125/DCDD3 Ways And 2 PositionsNormally Closed1/4"24-480V ACPilot OperatedBrassNbr10 psi€683.84
RED HAT EF8342G020120/60DA Dual Solenoid Valve 4/2 1/4 Inch 120/110v | AB7ZRY 24W678 EF8342G020120/60DA4 Ways And 2 PositionsConfigurable1/4"24-480V ACDirect ActingBrassNbr0 psi€995.71
ASCO NUMATICS 8212A019S0100F0 Solenoid Valve 2-way/2-position 1/2 Inch | AF6RZW 20HP07 8212A019S0100F02 Ways And 2 PositionsNormally Closed1/2"24-240V ACNPT ThreadPPEElastomer5 psi€250.17
ASCO NUMATICS 8212A019S0100F1 Solenoid Valve 2-way/2-position 1/2 Inch | AF6RZX 20HP08 8212A019S0100F12 Ways And 2 PositionsNormally Closed1/2"24-240V ACNPT ThreadPPEElastomer5 psi€222.44
ASCO NUMATICS 8212A019L1100F0 Solenoid Valve 2-way/2-position 1/2 Inch | AF6RZY 20HP09 8212A019L1100F02 Ways And 2 PositionsNormally Closed1/2"24-240V ACNPT ThreadPPEElastomer5 psi€259.79
ASCO NUMATICS 8212A019L1100F1 Solenoid Valve 2-way/2-position 1/2 Inch | AF6RZZ 20HP10 8212A019L1100F12 Ways And 2 PositionsNormally Closed1/2"24-240V ACNPT ThreadPPEElastomer5 psi€260.77
