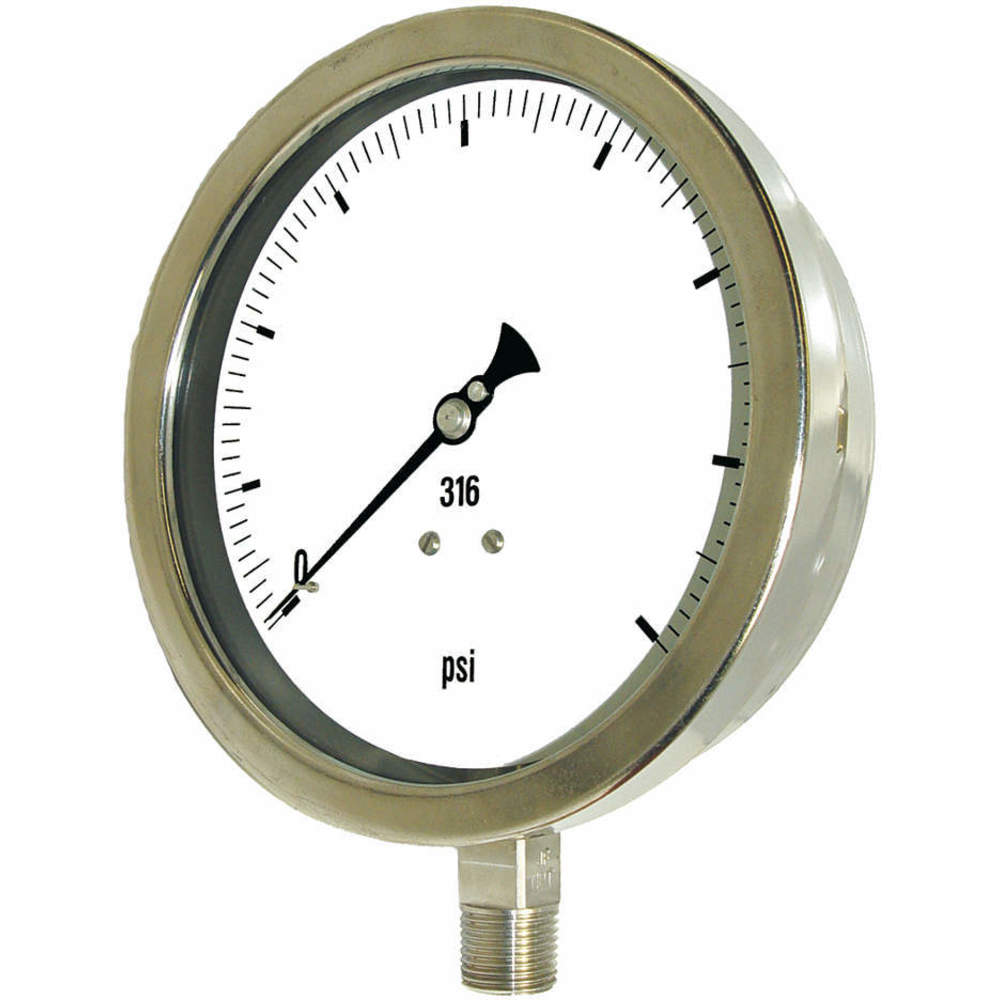

| Item | Pressure Gauge |
| Accuracy | -1% to +1% |
| Accuracy Scale | Full Scale |
| Application | General Purpose , Process |
| Basic Gauge Case Material | Stainless Steel |
| Basic Gauge Sensor Material | Stainless Steel |
| Basic Gauge Socket Material | Stainless Steel |
| Bezel Material | Stainless Steel |
| Bezel Mounting Type | Removable |
| Blowout Safety Back | No |
| Calibration Certificate | No |
| Calibration Certificate Included | No |
| Case Color | Metallic , Stainless Steel |
| Case Depth | 2.05" |
| Case Dia. | 6 3/4" |
| Case Material | Stainless Steel |
| Cleaned For Oxygen Service | No |
| Connection Location | Bottom , Lower |
| Connection Size | 1/4" |
| Dial Size | 6" |
| Field Fillable | Yes |
| Freeze Resistant Movement | No |
| Gauge Connection Location | Bottom |
| Gauge Connection Size | 1/4" |
| Gauge Nominal Dial Size | 6" |
| Gauge Panel Mountable | No |
| Gauge Primary Range No.ed Graduations | 500 |
| Gauge Primary Range Units | Psi |
| Gauge Special Options | Heavy Duty |
| Gauge Type | Heavy Duty |
| Graduations | 500 psi |
| Hazardous Location Rating | Not Rated |
| Includes | Vent Plug |
| Includes Vent Plug | Yes |
| Ip Rating, Nema Rating | Not Rated |
| Lens Material | Glass , Laminated Safety Glass |
| Liquid Filled | No |
| Liquid-filled Case | No |
| Mounting Hardware Included | No |
| Nominal Dial Size | 6" |
| Non-sparking | No |
| Operating Temp. Range | -30°F to +180°F |
| Panel-mountable | No |
| Pointer Characteristics | Adjustable |
| Pointer Material | Aluminum |
| Pressure And Vacuum Gauge Type | Pressure Gauge |
| Pressure Range Type | Pressure |
| Primary Application | General Purpose |
| Primary Scale Numeric Increments | 500 |
| Primary Scale Units | Psi |
| Process Connection Gender | Male |
| Process Connection Location | Bottom |
| Process Connection Size | 1/4" |
| Range | 0 psi to 5000 psi |
| Removable Bezel | Yes |
| Required Gauge Adapter | No |
| Scale Type | Single |
| Sensor Material | Stainless Steel |
| Smallest Graduation | 50 , 50 psi |
| Socket Material | Stainless Steel |
| Wetted Materials | Stainless Steel |
| Accuracy Grade | ASME B40.100 Grade 1A |
| Ambient Operating Temperature Range | -30°F to +180°F |
| Case Construction | Welded Joint |
| Case Diameter | 6.75" |
| Dial Color | White |
| Dial Face Color | White |
| Dry Dampening Feature | None |
| Gauge Accuracy Grade | Grade 1A Industrial |
| Gauge Case Liquid | None |
| Gauge Case Material | Stainless Steel |
| Gauge Wetted Parts | Stainless Steel |
| Includes Calibration Certificate | No |
| Includes Mounting Hardware | No |
| Ip/nema Rating | Not Rated |
| Lens Material - Gauge | Safety Glass |
| Manufacturer Warranty Length | 1 yr. |
| Mounting Type | Stem Mount |
| Pointer Color | Black |
| Pressure Gauge Type | Industrial Pressure Gauge |
| Pressure Range | 0 psi to 5000 psi |
| Primary Pressure Range | 0 to 5000 |
| Primary Scale Minor Graduations | 50 |
| Process Connection | 1/4" NPT Male |
| Process Connection Type | NPT |
| Series | 6000 Series |
| Standards | ASME |
| Vibration Resistance | Field Fillable |
| Wetted Parts Material | 316 Stainless Steel |
