PIC GAUGES

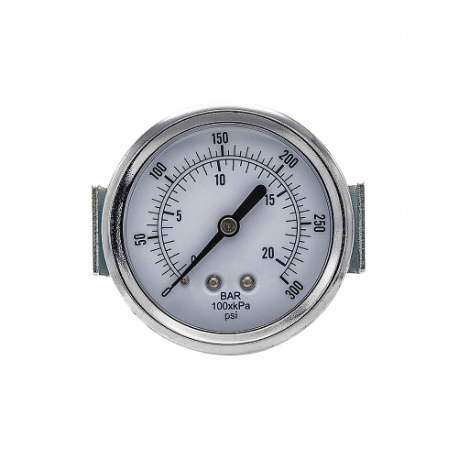

PIC GAUGES 103D-258H Industrial Pressure Gauge, U-Clamp, 0 To 300 PSI, 2 1/2 Inch Dial, 1/8 Inch Npt Male

Item: CT7TPM Model: 103D-258HCross Ref: 54XR08

See variants (12)

In Stock

Check Availability

Get it by Friday, Jun 13

Flat Shipping at €24.99 + VAT €24.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.

€13.58 /unit

Add To Cart

Request a Quote

Payment

Delivery

Product Specifications:

Item	Pressure Gauge
Accuracy	±3-2-3%
Accuracy Grade	Grade B
Accuracy Scale	Mid Scale
Ambient Temp. Range	-50°F to +160°F
Application	General Purpose , U-Clamp
Bezel Material	Steel
Bezel Mounting Type	Fixed
Blowout Safety Back	No
Calibration Certificate Included	No
Case Color	Metallic
Case Depth	1.18"
Case Dia.	2 17/25"
Case Material	Stainless Steel
Cleaned For Oxygen Service	No
Connection Location	Center Back
Dial Color	White
Dial Face Material	Aluminum
Dry Dampening Feature	None
Field Fillable	No
Freeze Resistant Movement	No
Gauge Case Color	Black
Gauge Case Liquid	None
Gauge Connection Location	Center Back
Gauge Connection Size	1/8"
Gauge Nominal Dial Size	2 1/2"
Gauge Primary Range No.ed Graduations	50
Gauge Primary Range Units	Psi
Gauge Secondary Range Units	Bar
Gauge Socket Material	Copper Alloy
Gauge Wetted Parts	Copper
Graduations	50 psi
Hazardous Location Rating	Not Rated
Includes	U-Clamp
Includes Mounting Hardware	No
Includes Vent Plug	No
Ip Rating, Nema Rating	Not Rated
Lens Material	Plastic
Liquid Filled	No
Liquid-filled Case	No
Mfr. Series	103D Series
Mounting Hardware Included	No
Nominal Dial Size	2 1/2"
Non-sparking	No
Panel-mountable	No
Pointer Color	Black
Pointer Material	Aluminum
Pressure Gauge Type	Industrial Pressure Gauge
Pressure Range	0 psi to 300 psi
Pressure Range Type	Pressure
Primary Scale Units	Psi
Process Connection Gender	Male
Process Connection Location	Center Back
Process Connection Size	1/8"
Process Connection Type	NPT
Range	0 psi to 300 psi
Removable Bezel	No
Scale Type	Dual
Secondary Pressure Range	0 Bar to 21 Bar
Secondary Scale Units	Bar
Sensor Material	Copper Alloy
Socket Material	Brass
Vibration Resistance	None
Wetted Materials	Copper Alloy
Ambient Operating Temperature Range	-50°F to +160°F
Case Diameter	2.68"
Gauge Accuracy Grade	Grade B Commercial
Gauge Case Material	Stainless Steel
Gauge Mounting Type	U-Clamp
Includes Calibration Certificate	No
Ip/nema Rating	Not Rated
Lens Material - Gauge	Plastic
Manufacturer Warranty Length	1 yr.
Mounting Type	Stem Mount
Primary Pressure Range	0 to 300
Primary Scale Minor Graduations	50
Process Connection	1/8" NPT Male
Series	103D Series
Standards	ASME
Wetted Parts Material	Copper Alloy

Shipping Info:

Ship weight (kg)	0.3352
Ship height (cm)	6.81
Ship length (cm)	6.35
Ship width (cm)	3
Country of Origin	CN

Product Variants

Model	Pressure Range Type	Pressure Range	Nominal Dial Size	Panel-mountable	Application	Socket Material	Sensor Material	Primary Scale Units	Price
103D-254M	Pressure	0 psi to 1000 psi	2 1/2"	No	General Purpose	Brass	Copper Alloy	Psi	€13.78
103D-204M	Pressure	0 psi to 1000 psi	2"	No	General Purpose	Brass	Copper Alloy	Psi	€10.67
103D-208M	Pressure	0 psi to 1000 psi	2"	No	General Purpose	Brass	Copper Alloy	Psi	€11.43
103D-208P	Pressure	0 psi to 3000 psi	2"	No	General Purpose	Brass	Copper Alloy	Psi	€11.43
103D-258C	Pressure	0 psi to 30 psi	2 1/2"	No	General Purpose	Brass	Copper Alloy	Psi	€12.56
103D-258I	Pressure	0 psi to 400 psi	2 1/2"	No	General Purpose	Brass	Copper Alloy	Psi	€12.56
103D-258D	Pressure	0 psi to 60 psi	2 1/2"	No	General Purpose	Brass	Copper Alloy	Psi	€12.17
