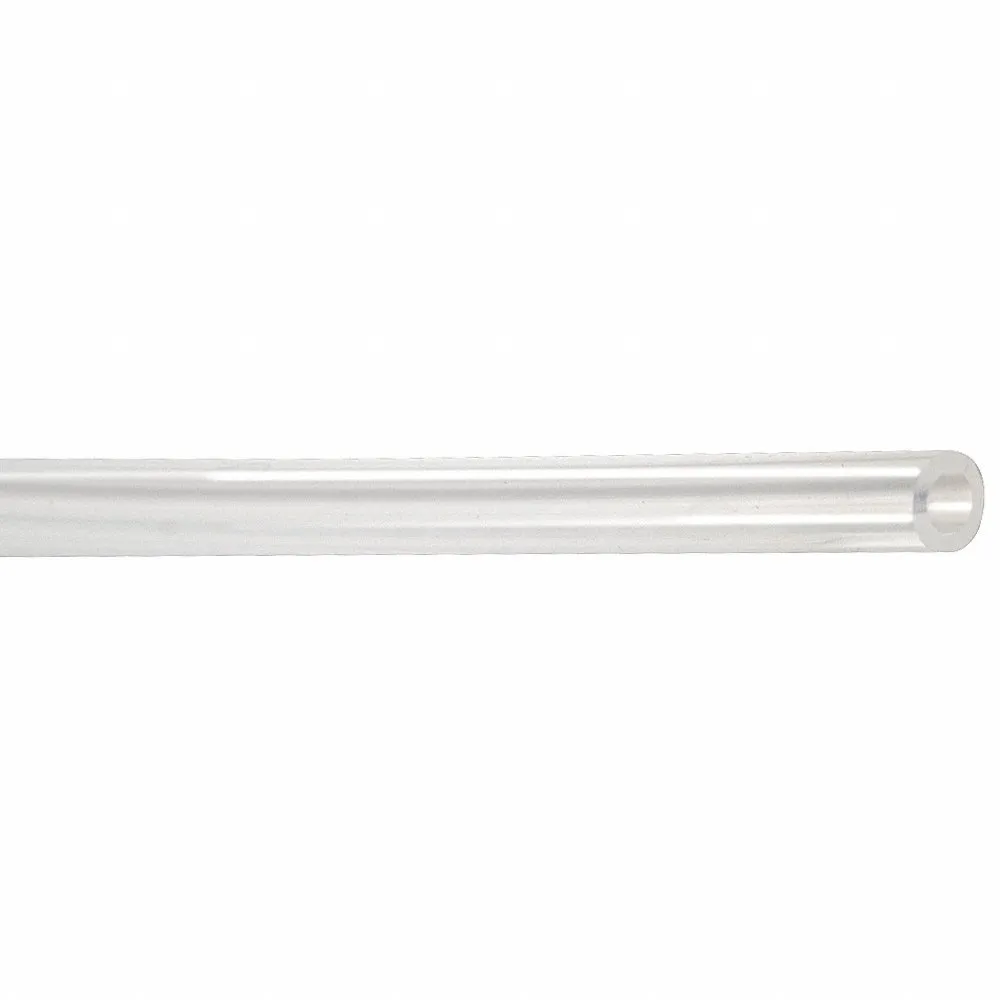

PARKER 103-0250062-NT-50 Tubing, Fep, Natural, 1/8 Inch Id, 1/4 Inch OD, 50 Ft Length, Shore D 55 | CT7KTL

PARKER 103-0250062-NT-50 Tubing, Fep, Natural, 1/8 Inch Id, 1/4 Inch OD, 50 Ft Length, Shore D 55

Item: CT7KTL Model: 103-0250062-NT-50Cross Ref: 53XL34
Limited Availability
€358.09 /unit
Request a Quote

Payment

Delivery

Product Specifications:

ItemTubing
ApplicationBeverage, Chemical, Food, Water , Beverages, Chemicals, Food, Water
AutoclavableYes
Bend Radius3/4"
Burst Pressure1560 psi
ClaritySemi Clear
ColorBeige , Natural , Translucent
Compatible ChemicalsAcetone, Chlorine, Ether, Iodine, Nitric Acid 35%, Zinc Chloride
FeaturesChemically Inert, Low Coefficient Of Friction, Non-Wetting, Self-Extinguishing, Weldable
Fitting CompatibilityCompression, Push To Connect , Compression, Push-To-Connect
FlexibilityFlexible
Food And Beverage CompatibilityBeer, Citric Acid, Dairy, Dextrose, Distilled Water, Fructose, Glycerin, Linseed Oil, Milk, Non-Potable Water, Oils And Fats, Orange Juice, Potable Water, Salt Water, Soft Drinks, Vinegar
HardnessShore D 55
Inside Dia.1/8"
Jacket ColorNo Jacket
Jacket MaterialNo Jacket
Length50 ft.
MaterialFEP , Fluorinated Ethylene Propylene
Material Trade NameNot Applicable
Material Trade NumberNot Applicable
Max. Operating Temp.400°F
Max. Pressure390 psi
Maximum Vacuum Pressure28 in. hg
Min. Operating Temp.-100°F
Outside Dia.1/4"
Peristaltic Pump CompatibleNo
Petroleum Product CompatibilityKerosene, Mineral Oil
Pex TypeNot Applicable
ReinforcementNon Reinforced , Not Reinforced
Resistance PropertiesChemical Resistant, Corrosion Resistant, Heat Resistant
Stripe ColorNo Stripe
System Of MeasurementInch
Tube FormStraight
Vacuum RatedYes
Wall Thickness0.62"
Chemical CompatibilityAcetone, Chlorine, Ether, Iodine, Nitric Acid 35%, Zinc Chloride
Inside Diameter1/8"
Maximum Operating Pressure390 psi @ 73°F
Maximum Operating Temperature400°F
Minimum Operating Temperature-100°F
Outside Diameter1/4"
Overall Length50 ft.
Standards21 CFR 177.1550, ASTM D2116, UL 94 V-0 COMPLIANT, USP CLASS VI
Weight Per Foot0.034 lbs.-ft.

Shipping Info:

Ship weight (kg) 0.495
Ship length (cm)0.64
Ship width (cm)0.64
Country of OriginUS

Product Variants

ProductModelOutside Dia.Inside Dia.Wall ThicknessColorClarityReinforcementFitting CompatibilityBurst PressurePrice
PARKER 103-0563031-NT-100 Tubing, Fep, Clear, 1/2 Inch Id, 9/16 Inch OD, 100 Ft Length, Shore D 55 | CT7KRR 103-0563031-NT-1000.562"1/2"0.031"ClearClear-Compression320 psi€771.10
PARKER 103-0375062-NT-25 Tubing, Fep, Clear, 1/4 Inch Id, 3/8 Inch OD, 25 Ft Length, Shore D 55 | CT7KRT 103-0375062-NT-253/8"1/4"0.062"ClearClear-Compression1160 psi€280.39
PARKER 103-0500062-NT-100 Tubing, Fep, Clear, 3/8 Inch Id, 1/2 Inch OD, 100 Ft Length, Shore D 55 | CT7KRU 103-0500062-NT-1001/2"3/8"0.062"ClearClear-Compression840 psi€1,578.43
PARKER 103-0500062-NT-25 Tubing, Fep, Clear, 3/8 Inch Id, 1/2 Inch OD, 25 Ft Length, Shore D 55 | CT7KRV 103-0500062-NT-251/2"3/8"0.062"ClearClear-Compression840 psi€387.16
PARKER 103-0375031-NT-100 Tubing, Fep, Clear, 5/16 Inch Id, 3/8 Inch OD, 100 Ft Length, Shore D 55 | CT7KRW 103-0375031-NT-1003/8"0.312"0.031"ClearClear-Compression520 psi€639.32
PARKER 103-0438062-NT-100 Tubing, Fep, Clear, 5/16 Inch Id, 7/16 Inch OD, 100 Ft Length, Shore D 55 | CT7KRX 103-0438062-NT-1000.438"0.312"0.062"ClearClear-Compression1000 psi€1,290.73
PARKER 103-0500031-NT-100 Tubing, Fep, Clear, 7/16 Inch Id, 1/2 Inch OD, 100 Ft Length, Shore D 55 | CT7KRY 103-0500031-NT-1001/2"0.438"0.031"ClearClear-Compression360 psi€682.54
