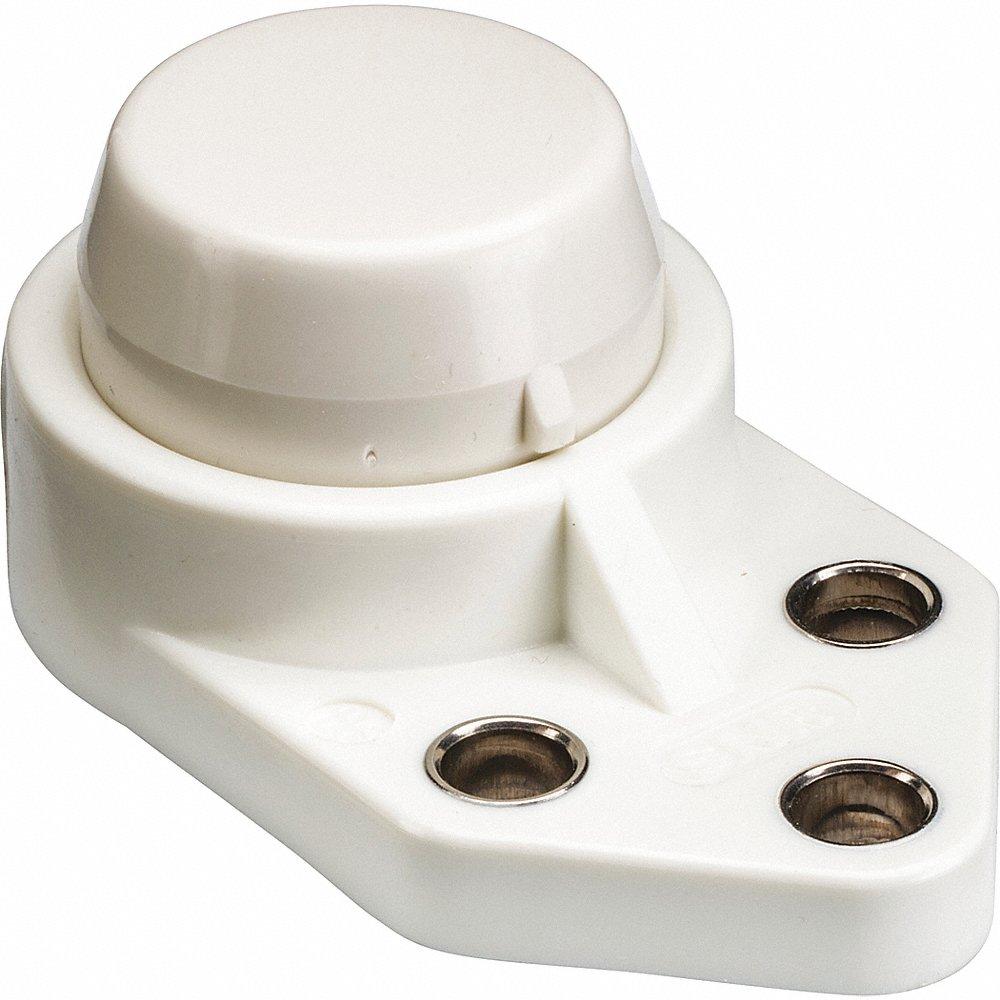

NTN SUCFBL207-20CCFG1 Flange Bearing, 3 Bolt, 1 1/4 Inch Bore, Polymer, Set Screws, 3 47/64 Inch Length

Item: CT4GLJ Model: SUCFBL207-20CCFG1Cross Ref: 406U96
In Stock

Get it by Tuesday, Jun 17

Flat Shipping at €24.99 + VAT €24.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.

€618.59 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemBearing
ApplicationFood And Beverage
Back Side To Center Width0.854"
Bore Dia.1 1/4"
Bore TypeCylindrical
Center Height4.297"
Closure TypeDouble Sealed
Dynamic Load Capacity4519 lbf.
Flange Thickness5/8"
For EnvironmentFood And Beverage
GradeGrade 440C
Housing MaterialPolymer
Housing Material FinishUnfinished
Housing Material GradePBT - Thermoplastic
Housing TypeFlange Bracket
Included BearingSUC207
Included Bearing CapClosed Cap
Includes(3) Set Screws
Insert MaterialStainless Steel
Insert TypeRadial Ball
Lubricant Material GradeFDA/USDA-H1 Solid Grease
Lubrication OpeningsOne Zirc Fitting
Max. Speed3700 RPM
Max. Temp.250°F
Min. Temp.-4°F
Mount Hole Center-to-center Height1 1/4"
Mount Hole Center-to-center Length2"
Mount Hole Size0.516"
Mounting Bolt Size1/2"
Number Of Mounting Holes3
Overall Height6.172"
Overall Length3.734"
Overall Width2.547"
Resistance PropertiesCorrosion Resistant
Rolling Element Rows1
Seal MaterialSilicone
Seal TypeContact
Shaft Locking TypeSet Screws
Static Radial Load Capacity3507 lbf.
Sub-brandSentinel
Bearing Insert MaterialStainless Steel
Bearing Insert TypeRadial Ball
Bearing Material Grade440C
Bore Diameter1 1/4"
ClosureDouble Sealed
Expansion TypeFixed
Lubricant MaterialFDA, USDA-H1 Solid Grease
Maximum Speed3700 RPM
Maximum Temperature250°F
Minimum Temperature-4°F
Number Of Mount Holes3
StandardsNSF H1 REGISTERED

Shipping Info:

Ship weight (kg) 0.8955
Ship height (cm)15.68
Ship length (cm)9.49
Ship width (cm)6.47
