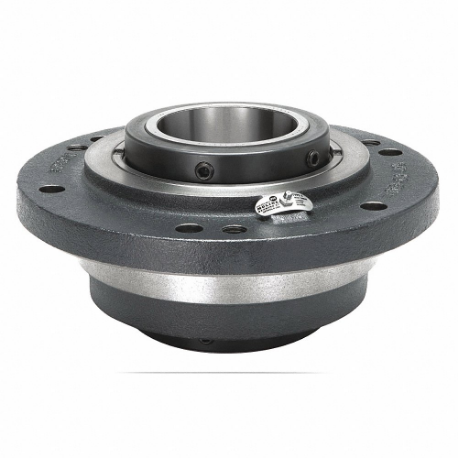

MOLINE BEARING 19331407 Flange Bearing, Tapered Roller, 4 7/16 Inch Bore, Cast Iron, Set Screws

Item: CT3TTQ Model: 19331407Cross Ref: 60JR49
Limited Availability

Due to weight and dimension restrictions, please request a shipping quote

€4,099.07 /unit
Request a Quote

Payment

Delivery

Product Specifications:

ItemBearing
ApplicationAggregate, Conveying, Cranes, Forestry, Gas, Mining, Oil, Power Generation, Screening
Bearing Housing Material TypeCast Iron
Bearing LubricationLithium Complex Grease
Bolt Center To Center Length5.09"
Bolt Circle Dia.11 3/4"
Bolt Size3/4"
Bore Dia.4 7/16" , 4.438"
Bore TypeCylindrical
Closure TypeDouble Sealed
Dimension A6 3/4"
Dimension B13 1/2"
Dimension C4 5/8"
Dimension D11 3/4"
Dimension E1 1/2"
Dimension F3/4"
Dimension G3 1/32"
Dimension H1"
Dimension L6 1/4"
Dimension M5.09"
Dimension P2"
Dynamic Load Capacity33000 lbf.
Expansion TypeFixed
FeaturesAssembled, Adjusted And Pre-Lubricated In Advance For Immediate Use, Close Fit Oversized Collars Act As Flingers For Additional Protection In Dusty Or Damp Environments, Housings Of Class 30 Cast Iron, Standard V-Guard Nitrile And Teflon Contact Seal Or Balanced Labyrinth Seal, Timken Lithium Complex Grease Operating Temperature Is Upto 250°, High Temperature Grease Is Available Upto 350°
Flange Thickness3 1/32" , 3.031"
Housing MaterialCast Iron
Housing Material FinishPainted
Housing Material GradeClass 30
Housing TypeCircular
IncludesTimken Type E Tapered Roller Bearing
Insert MaterialAlloy Steel
Insert TypeTapered Roller
Load DirectionRadial, Thrust
Lubricant MaterialLithium Complex Grease
Lubrication OpeningsOne Zirc Fitting
Max. Temp.250°F
Min. Temp.-40°F
Mount Hole Center-to-center Height11 3/4"
Mount Hole Center-to-center Length11 3/4"
Mount Hole Size3/4"
Mounting Bolt Size3/4"
Number Of Mount Holes4
Number Of Mounting Holes4
Overall Height65 1/2"
Overall Length65 1/2"
Overall Width6 3/4"
Rolling Element Rows2
Seal MaterialNitrile , Nitrile, Teflon
Seal TypeContact
Shaft Locking TypeSet Screws
Static Radial Load Capacity188400 lbf.
System Of MeasurementInch
Bearing Insert MaterialAlloy Steel
Bearing Insert TypeTapered Roller
Bolt Circle Diameter11.75"
Bore Diameter4 7/16"
ClosureDouble Sealed

Shipping Info:

Ship weight (kg) 14.85
Ship height (cm)166.37
Ship length (cm)166.37
Ship width (cm)17.15
Country of OriginUS
