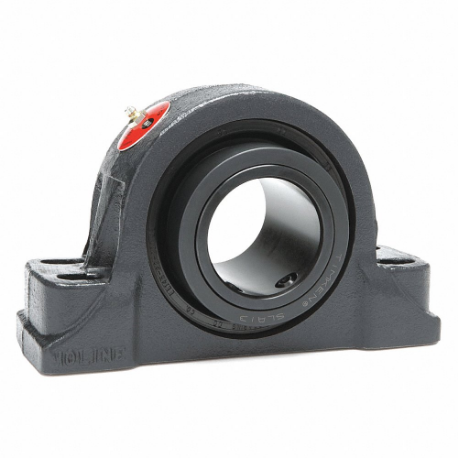

MOLINE BEARING 19141415 Pillow Block Bearing, 4 15/16 Inch Size Bore, Expansion, Cast Iron | CT3TYR

MOLINE BEARING 19141415 Pillow Block Bearing, 4 15/16 Inch Size Bore, Expansion, Cast Iron

Item: CT3TYR Model: 19141415Cross Ref: 60JT01
See variants (58)
In Stock
Check Availability

Get it by Wednesday, Jun 11

Flat Shipping at €24.99 + VAT €24.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.

€5,223.73 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemPillow Block Bearing
ApplicationAir Handling, Conveying, Food Processing, Paper And Forestry, Screening
Base Height3"
Base Width5.38"
Bearing Housing Material TypeCast Iron
Bearing Insert MaterialAlloy Steel
Bearing Insert TypeSpherical Roller
Bearing LubricationLithium Complex Grease
Bearing Material GradeGrade 52100
Bolt Hole Center-to-center15 1/2"
Bolt Size7/8"
Bore Dia.4.938"
Dimension1 1/2"
Dimension A6 5/8"
Dimension B18 5/8"
Dimension C5 3/8"
Dimension D15"
Dimension F7/8"
Dimension H3"
Dimension J11 1/8"
Dimension L6 7/8"
Dimension M5 1/2"
Dimension N6 5/8"
Dynamic Axial Load Capacity123000 lbf.
Expansion TypeExpansion
Features+/-11/2° Misalignment Capacity, Assembled, Adjusted And Pre Lubricated In Advance For Immediate Use, Built With SKF And Timken Spherical Roller Bearings, Expansion Units Have .100" Capacity, Piloted Flange Housings Are Machined With Back Out Holes, Precision Ground Contours, Rotating Center Guide Ring For Least Possible Friction, Single Piece Outer Race Is Grooved And Has 3 Lube Holes For Even Distribution Of Grease), Standard Units Have One Locking Collar, Timken Lithium Complex Grease Operating Temperature Is Up To 250°, High Temperature Grease Is Available Up To 350°, Will Accommodate Moderate Thrust Loads And Permits Angular Misalignment Without Loss Of Capacity
Housing MaterialCast Iron
Included BearingExpansion M2000 Spherical Roller , Expansion M2000 Spherical Roller Bearing
Load DirectionThrust
Lubricant MaterialLithium Grease
Max. Angular Misalignment5.5°
Max. Rpm900 RPM
Max. Temp.250°F
Min. Temp.-40°F
Mount Hole Center-to-center Length15 1/2"
Mount Hole Center-to-center Width2 3/4"
Mount Hole Size1 1/2"
Mounting Bolt Size7/8"
Mounting Surface To Shaft Center5 1/2"
Mounting Surface To Shaft Center (height)5 1/2"
Mounting TypeBolt Through
Number Of Bolts4
Number Of Mounting Holes4
Overall Height11 1/8"
Overall Length18 5/8"
Seal TypeContact
Shaft Locking TypeSet Screws
Static Radial Load Capacity180000 lbf.
System Of MeasurementInch
Width6.687"
Bore Diameter4 15/16"
Bore TypeCylindrical
ClosureDouble Sealed
Maximum Speed900 RPM
Mount TypeBolt-Through
Overall Width6.687"

Shipping Info:

Ship weight (kg) 3.105
Ship height (cm)28.26
Ship length (cm)47.31
Ship width (cm)16.98
Country of OriginUS

Product Variants

ProductModelBore Dia.Max. RpmMount Hole SizeStatic Radial Load CapacityBase HeightBase WidthDynamic Axial Load CapacityExpansion TypePrice
MOLINE BEARING 19121108 Pillow Block Bearing, 1 1/2 Inch Size Bore, Expansion, Cast Iron | CT3TUR 191211081 1/2"2800 RPM0.938"18300 lbf.1.19"2.19"16600 lbf.Expansion€618.96
MOLINE BEARING 19221108 Pillow Block Bearing, 1 1/2 Inch Size Bore, Fixed, Cast Iron, 1 7/8 Inch Size Shaft Height | CT3TUT 192211081 1/2"2800 RPM0.938"18300 lbf.1.19"2.19"16600 lbf.Fixed€623.93
MOLINE BEARING 19221104 Pillow Block Bearing, 1 1/4 Inch Size Bore, Fixed, Cast Iron, 1 7/8 Inch Size Shaft Height | CT3TUW 192211041 1/4"2800 RPM0.938"18300 lbf.1.19"2.19"16600 lbf.Fixed€661.25
MOLINE BEARING 19121111 Pillow Block Bearing, 1 11/16 Inch Size Bore, Expansion, Cast Iron | CT3TUY 191211111.688"2650 RPM0.938"19800 lbf.1.31"2.19"17300 lbf.Expansion€723.43
MOLINE BEARING 19221111 Pillow Block Bearing, 1 11/16 Inch Size Bore, Fixed, Cast Iron | CT3TUZ 192211111.688"2650 RPM0.938"19800 lbf.1.31"2.19"17300 lbf.Fixed€719.84
MOLINE BEARING 19121115 Pillow Block Bearing, 1 15/16 Inch Size Bore, Expansion, Cast Iron | CT3TVB 191211151.938"2400 RPM1"22500 lbf.1.38"2.19"19000 lbf.Expansion€768.57
MOLINE BEARING 19221115 Pillow Block Bearing, 1 15/16 Inch Size Bore, Fixed, Cast Iron | CT3TVC 192211151.938"2400 RPM1"22500 lbf.1.38"2.19"19000 lbf.Fixed€738.36
