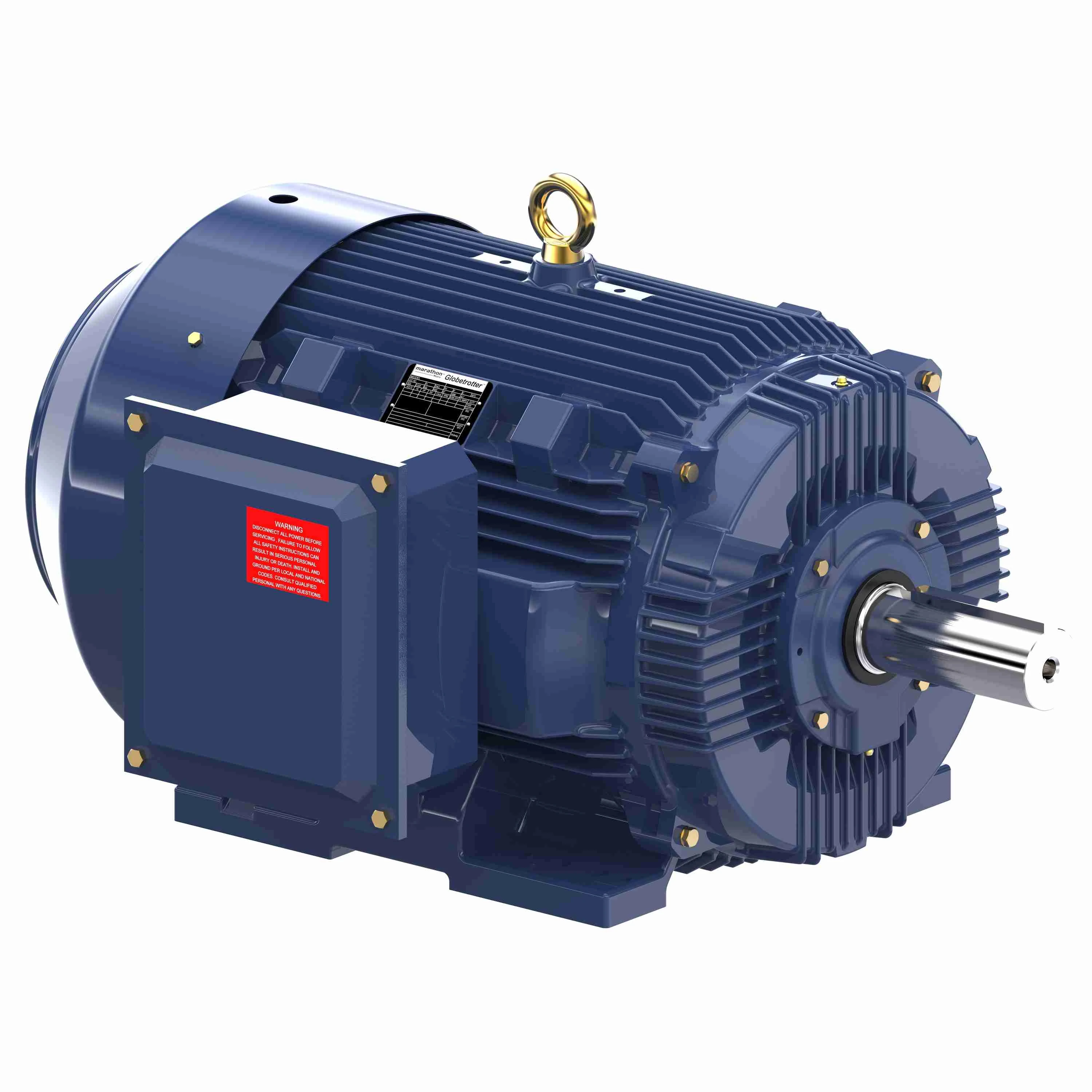

MARATHON MOTORS 444TTFCD6036 General Purpose Motor, 125 hp, 3 Phase, 1790 Rpm, 460VAC, 444T Frame | CH6JWM 44Z392

MARATHON MOTORS 444TTFCD6036 444TTFCD6036BB / GT1049A General Purpose Motor, 125/100 HP, 3 Phase, 60/50 Hz, 460 and 380V, 1800 and 1500 RPM

Item: CH6JWM Model: 444TTFCD6036Cross Ref: 44Z392 / 444TTFCD6036BB / GT1049A
In Stock

Get it by Tuesday, Jun 10

€11,013.33 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemGeneral Purpose Motor
Ambient Temp.104°F
Base TypeRigid Base
Bearing TypeBall
Cc NumberCC003A
Duty CycleContinuous
Efficiency95.4%
Efficiency GroupPremium
Frame444T
Frame MaterialCast Iron
Frequency60 Hz
Full Load Amps140A
Green Certification Or Other RecognitionNEMA Premium Rated
Hp125 hp
IncludesConduit Box
Insulation ClassClass F
Inverter RatedYes
Motor ApplicationGeneral Application
Motor Enclosure DesignTotally Enclosed Fan Cooled
Motor Mounting PositionHorizontal
Motor Shaft DesignKeyed
Motor Shaft RotationClockwise/Counter Clockwise
Motor TypeThree Phase
Mounting TypeRigid Base
Nameplate Rpm1790 RPM
Nema DesignB
No. Of Speeds1
Overall Length46 11/16"
Part Winding Start CapableYes
Phase3
Rpm Range1701-1800 RPM
Service Factor1.15
Shaft Dia.3 3/8"
Shaft Length8 1/2"
Thermal ProtectionNone
Usable @ 200vNo
Usable @ 208vNo
Voltage460V AC
Ins. ClassClass F
Length Less Shaft38 3/16"
Motor BearingsBall
Motor Frame MaterialCast Iron
Motor Mounting TypeRigid Base
StandardsCSA CERTIFIED, UL LISTED
Weight1588 lbs.

Shipping Info:

Ship weight (kg) 767.25
Ship height (cm)67.95
Ship length (cm)126.26
Ship width (cm)88.72
HS code8501534080
Country of OriginMX
