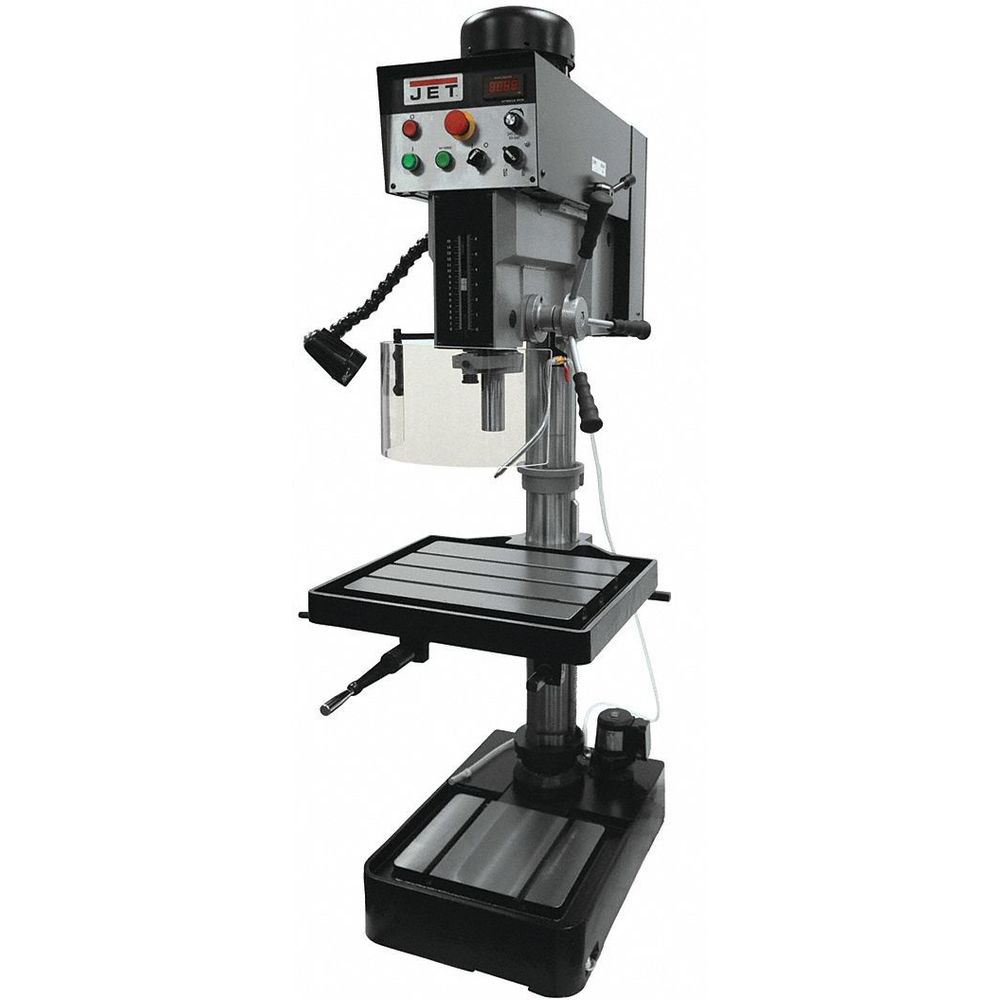

JET TOOLS JDP-20EVST-460 Floor Drill Press, 2 Motor HP, Belt Drive Type, 20 Inch Swing, 460 Voltage | CD3AWZ 52XJ01

JET TOOLS 354226 JDP-20EVST-460 Floor Drill Press, 2 Motor HP, Belt Drive Type, 20 Inch Swing, 460 Voltage

Item: CD3AWZ Model: 354226Cross Ref: 52XJ01 / JDP-20EVST-460
Limited Availability
€6,483.51 /unit
Request a Quote

Payment

Delivery

Product Specifications:

ItemFloor Drill Press
Amps9.2A
Chuck SizeNot Included
Column Dia.4 1/2"
Corded/wirelessCorded
Drilling Capacity In Cast Iron1 1/2"
Drilling Capacity In Steel1 3/8"
Drive TypeBelt
Max. Spindle To Base44 1/2"
Number Of SpeedsVariable
Overall Depth38.187"
Overall Height79 1/2"
Overall Width27"
Phase3
Spindle Speed65-2000 RPM
Spindle Taper3MT
Spindle To Table30 1/4"
Spindle Travel6 RPM
Swing20"
Table Slot Size5/8"
Table Work Surface18 1/8" x 14 3/4"
ApplicationDrilling, Tapping
Base Length27"
Base Width19"
Chuck StyleKeyed
Column Diameter4 1/2"
Coolant SystemYes
Current9.2A
Drill Press ApplicationDrilling, Tapping
Drill Press TypeFloor Stand
Drilling Capacity In Stainless Steel1"
Drilling Capacity In Wood1 1/2"
Guard IncludedYes
Horsepower2 hp
IncludesChuck Guard
Maximum Overall Height79 1/2"
Maximum Spindle Speed2000 RPM
Maximum Spindle-to-base Height44 1/2"
Maximum Spindle-to-table Height30 1/4"
Minimum Spindle Speed245 RPM
Motor Voltage460V AC, 3-Phase
Number Of Spindle SpeedsVariable
Number Of T-slots2
Overall Length38 1/8"
Power Down Feed IncludedNo
Power SourceCorded
Primary Material ApplicationMetal
Quill Diameter2 61/64"
Radial ArmNo
Speed ControlVariable
Speed Control TypeMechanical Variable Speed Drive System
Spindle Speed Range245-2000 RPM
Spindle-to-column Distance10 7/16"
StandardsCSA CERTIFIED, CUS CERTIFIED
Table Length22"
Table Load Capacity154 lbs.
Table ShapeRectangular
Table SlotYes
Table Slot Width5/8"
Table Width18 3/4"
Tapping Capacity In Stainless Steel5/8"
Tapping Capacity In Steel3/4"
Tapping CompatibleYes
Tool Weight792 lbs.
Voltage460V AC

Shipping Info:

Ship weight (kg) 356.4
Country of OriginTW

Product Variants

ProductModelPhaseSwingDrilling Capacity In SteelSpindle TravelVoltageAmpsHpApplicationPrice
JET TOOLS 354170 Floor Drill Press 115/230v 1-1/2 Hp | AA8GVX 18F196 354170120"3/4"4 5/8"115/230V-1 1/2 hp-€1,484.01
JET TOOLS 354500 Floor Drill Press 115/230v | AD4QGW 42W844 354500115"1/2"6"115/230V14A1 hpDrilling€2,345.31
RFQ
JET TOOLS JDP-17 Floor Drill Press Belt 16-7/8 3/4HP 120 | AH9VXU 45CA74 716300116 7/8"3/4"5"----€1,576.08
JET TOOLS JDP-20VS-1 Floor Drill Press, 2 Motor HP, Belt Drive Type, 20 Inch Swing, 115/230 Voltage | CD2YXW 53ZC49 354230120"1"6"115/230V---€5,246.01
JET TOOLS JDP-20VS-3 Floor Drill Press, 2 Motor HP, Belt Drive Type, 20 Inch Swing, 230/460 Voltage | CD2YXX 53ZC50 354231320"1"6"230/460V---€5,345.01
RFQ
JET TOOLS JDP-20EVST -230 Floor Drill Press, 2 Motor HP, Belt Drive Type, 20 Inch Swing, 230 Voltage | CD3PVZ 52XH99 354225320"1 3/8"6 RPM-9.2A2 hpDrilling, Tapping€6,335.01
