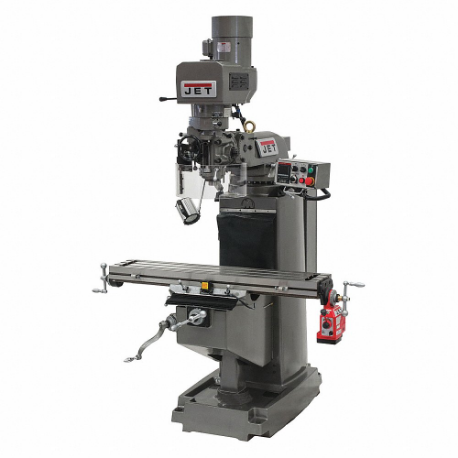

JET TOOLS 690575 Knee/Column Milling Machine, 9 Inch Table Length, 49 Inch Table Width

Item: CR4ZLK Model: 690575Cross Ref: 48RJ01
Limited Availability

Due to weight and dimension restrictions, please request a shipping quote

€39,252.51 /unit
Request a Quote

Payment

Delivery

Product Specifications:

ItemMachine
Backward Head Tilt Adjustment45°
Forward Head Tilt45°
Inverter TypeB, Delta
Left-hand Head Tilt90°
Length64"
Longitudinal Travel36"
Max. Spindle Speed4500 RPM
Max. Spindle To Column Distance18 1/8"
Max. Spindle To Table Distance20 3/4"
Min. Spindle Speed60 RPM
Min. Spindle To Column Distance4 3/4"
Min. Spindle To Table Distance20 3/4"
Motor Hp3 hp
No. Of Axis2
Number Of Spindle SpeedsVariable
Number Of T-slots3
Overall Depth67"
Overall Height85 3/4"
Phase3
Quill Dia.3 3/8"
Ram Travel Length15 1/4"
Right-hand Head Tilt90°
Spindle Taper SizeRP_R-8
Spindle Travel Length5"
Table Length9"
Table Load Capacity720 lbs.
Table Width49"
Voltage230V
Collet Capacity - Maximum7/8"
Collet Capacity - Minimum1/8"
Column Width18"
Cross Travel - Maximum12 5/8"
Current8A
Frequency60 Hz
Head Swivel - Left90°
Head Swivel - Right90°
Head Tilt - Backward45°
Head Tilt - Forward45°
Horsepower3 hp
Included Cnc Package2-Axis
Includes(3) Table Adjustment Handles, (4) Leveling Pads, 17 mm/19 mm Box Wrench, Chip Tray, Coarse Feed Handle, Cross Point Screw Driver #2, Draw Bar, Electric Box Key, Elevating Crank Handle, Flat Blade Screw Driver #2, Flat Way Cover, Handwheel, Hex Key Set (1.5 to 10 mm), Lifting Ring, Oil Can, Pleated Way Cover
Knee Travel - Maximum15 3/4"
Longitudinal Travel - Maximum36"
Motor Speed - Maximum1720 RPM
Motor TypeTotally Enclosed Fan-Cooled
Overall Width64"
Quill Diameter3 3/8"
Ram Travel - Maximum15 1/4"
SeriesJTM-949EVS/230
Sound Level72 dbA
Spindle Speed - Maximum4500 RPM
Spindle Speed - Minimum60 RPM
Spindle TaperR8
Spindle Travel - Maximum5"
Spindle-to-column Distance - Maximum18 1/8"
Spindle-to-column Distance - Minimum5 1/4"
Spindle-to-table Distance20 3/4"
T-slot Depth3/4"
T-slot Width5/8"
Table Depth9"

Shipping Info:

Ship weight (kg) 1350
Ship height (cm)218.44
Ship length (cm)170.18
Ship width (cm)162.56
Country of OriginTW

Product Variants

ProductModelVoltageTable WidthTable Load CapacityMotor HpMin. Spindle SpeedMax. Spindle SpeedLongitudinal TravelNumber Of Spindle SpeedsPrice
JET TOOLS 698059 Knee and Column Milling Machine | CR4ZJJ 698059--------€26,729.01
JET TOOLS 690621 Knee and Column Milling Machine, 10 Inch Table Length, 50 Inch Table Width | CR4ZJK 690621230V50"840 lbs.3 hp60 RPM4500 RPM35.333"Variable€23,066.01
RFQ
JET TOOLS 691050 Knee and Column Milling Machine, 10 Inch Table Length, 50 Inch Table Width | CR4ZJL 691050230/460V50"840 lbs.3 hp60 RPM4200 RPM34 1/4"Variable€15,403.41
RFQ
JET TOOLS 690620 Knee and Column Milling Machine, 10 Inch Table Length, 50 Inch Table Width | CR4ZJM 690620230V50"840 lbs.3 hp60 RPM4500 RPM35.333"Variable€23,660.01
RFQ
JET TOOLS 690680 Knee and Column Milling Machine, 10 Inch Table Length, 50 Inch Table Width | CR4ZJN 690680230V50"840 lbs.3 hp60 RPM4500 RPM35.333"Variable€27,521.01
RFQ
JET TOOLS 690619 Knee and Column Milling Machine, 10 Inch Table Length, 50 Inch Table Width | CR4ZJP 690619230V50"840 lbs.3 hp60 RPM4500 RPM35.333"Variable€21,878.01
RFQ
JET TOOLS 690601 Knee and Column Milling Machine, 10 Inch Table Length, 50 Inch Table Width | CR4ZJQ 690601230V50"840 lbs.3 hp60 RPM4500 RPM35.333"Variable€18,809.01
RFQ
