INGERSOLL-RAND MVA017B Air Motor, 1.93 Hp Hp, 84 In-Lb Running Torque At | CR4NZV

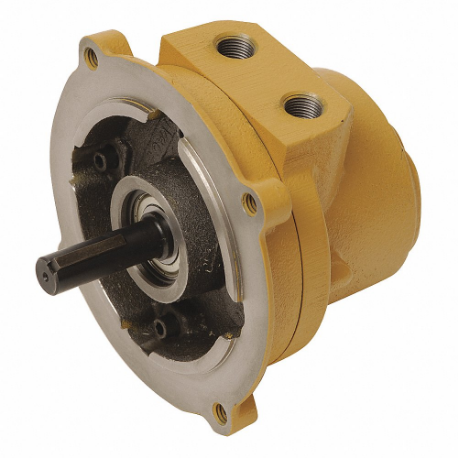

INGERSOLL-RAND MVA017B Air Motor, 1.93 Hp Hp, 84 In-Lb Running Torque At

Item: CR4NZV Model: MVA017BCross Ref: 423N51
In Stock

Get it by Friday, Jun 13

Flat Shipping at €24.99 + VAT €24.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.

€1,822.53 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemAir Motor
FinishUnfinished
Housing MaterialCast Iron
Hp1 93/100 hp
Keyway Length1 1/4"
Keyway Width0.188"
Max. Air Flow67 CFM
Max. Air Pressure90 psi
MountingFlange
No Load Speed5000 RPM
Operating Temp. Range0°F to +150°F
Outside Dia.6 1/2"
Overall Height9 2/5"
Overall Length7 12/25"
Overall Width7.9"
Port Size3/8"
Port TypeNPT
RotationREV
Rpm @ Max. Torque2800 RPM
Running Torque @ Max. Pressure84 lbs.-in.
Shaft Dia.5/8"
Shaft Length2.13"
Stall Torque84 lbs.-in.
Air Consumption76 SCFM
Air Inlet Port3/8" NPT
Housing Material FinishUnfinished
Keyway Depth1/4"
Keyway TypeSquare
Length Less Shaft4 5/8"
Maximum Ambient Temperature150°F
Maximum Flow Rate67 CFM
Maximum Operating Pressure90 psi
Minimum Ambient Temperature0°F
Mount Hole Center-to-center Length2"
Mount Hole Center-to-center Width3 3/8"
Mount TypeFlange
Mounting OrientationHorizontal
Number Of Vanes6
Output Power1 93/100 hp
Output Shaft TypeKeyed
Outside Diameter6 1/2"
SeriesMVA Series
Shaft Diameter5/8"
Speed @ Max Torque2800 RPM
StandardsATEX
Starting Torque4.5 lbs.-ft.
System Of MeasurementImperial
Torque @ Max Pressure84 lbs.-in.
Weight12.5 lbs.

Shipping Info:

Ship weight (kg) 5.8635
Ship height (cm)23.83
Ship length (cm)17.15
Ship width (cm)20.02
Country of OriginUS
