Product Specifications:

ItemAir Impact Wrench
Anvil TypeStandard
Average Cfm @ 15 Second Run Time15 CFM
Cfm @ Full Load80 CFM
DutyIndustrial
Free Speed2750 RPM
Housing MaterialTitanium
Max. Bolt Capacity1 1/2"
Min. Hose Size3/4"
Overall Length16 1/2"
Required Pressure90 psi
Retainer TypeThrough Hole
Square Drive Size1 1/2"
StyleD Shaped
Tool Weight34.6 lbs.
Torque Range1600 lbs.-ft. to 3900 lbs.-ft.
Air Consumption80 CFM
Air Inlet1/2" NPT
Air Pressure90 psi
Breakaway Torque5000 lbs.-ft.
Built-in LightNo
Clutch StyleTwin Hammer
Drive Size1 1/2" Square
Drive TypeStandard
Duty RatingIndustrial Duty
Exhaust LocationBottom
Fastening Torque3900 lbs.-ft.
FeaturesBronze End Plate, Twin Hammer Mechanism
Handle MaterialMetal
Handle TypeD
Impact RatedYes
Impact Sound Level101 dB
Impacts Per Minute700
Maximum Air Pressure100 psi
Maximum Bolt Capacity1 1/2"
Minimum Air Pressure90 psi
Minimum Hose Size3/4"
Number Of Speed SettingsContinuous
Power SourceAir Powered
Power To Weight Ratio144.5 lbs.-ft.
StandardsEN ISO 11148-6, EN ISO 15744, EN ISO 28927-2
Tool StyleFull Size
Vibration Level20.8 m/sq. sec.

Shipping Info:

Ship weight (kg) 17.1585
Ship height (cm)16.51
Ship length (cm)41.91
Ship width (cm)25.65
HS code8467115040
Country of OriginUS

Product Details:

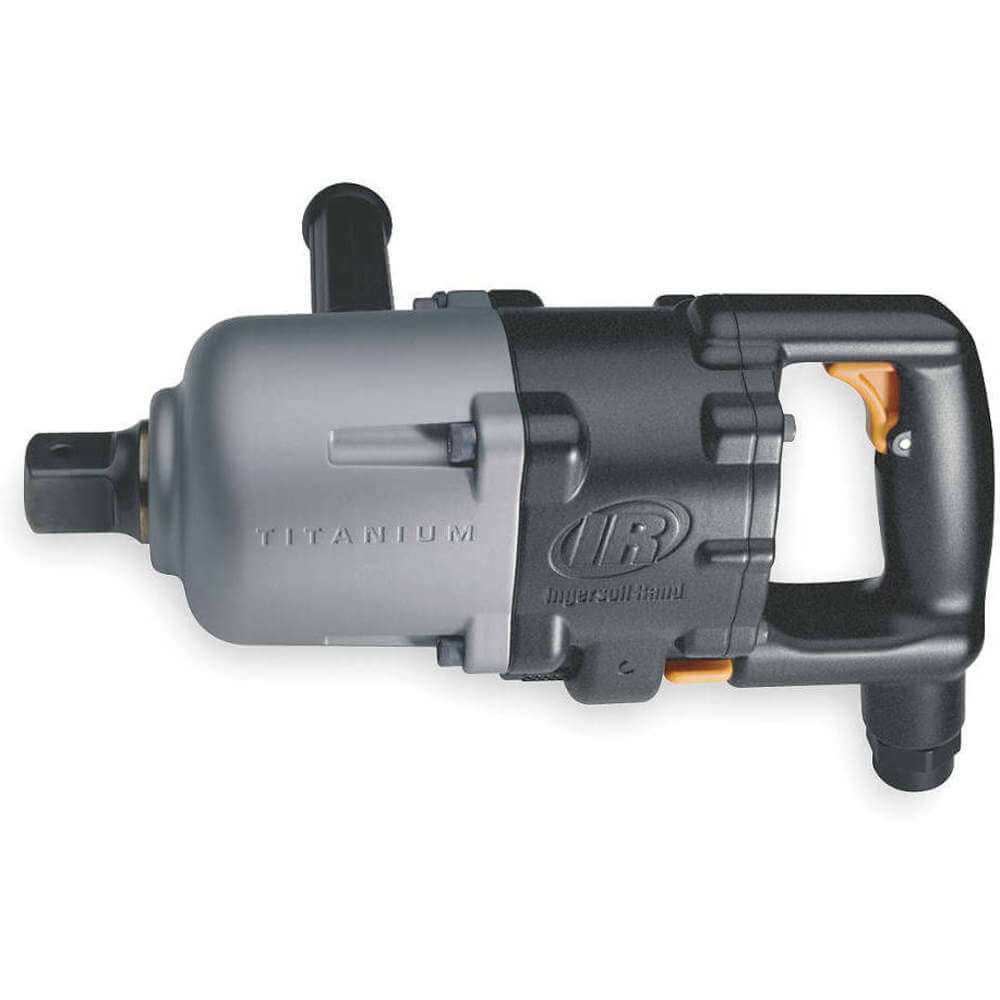

Ingersoll-Rand 3955B2TI air impact wrench is a power tool designed for tightening or loosening large bolts, lug nuts and rusted fasteners. It offers a very high rotational torque than a regular power driver.

Features:

  • It features an ergonomically designed D-shaped handle that provides superior grip and variable speed control trigger helps control torque with a peak rating of 5000 ft-lb.
  • It comes with titanium housing providing prolonged service life.
  • It is equipped with a square drive that can fasten bolts of sizes up to 1-1/2 inches.
  • It has 1/2 inch NPT air inlet with 90 PSI intake that can generate an average airflow of 15 CFM.
  • Twin hammer mechanism in this unit helps provide a maximum airflow of 80 CFM at full load.

Frequently Asked Questions:

Q. How much psi is required for air tools?

A. Most air tools need 70 to 90 PSI. Any light-to-medium-duty air compressor can easily handle 90 PSI.

Q. What is the most important factor in an air impact wrench?

A. Torque serves as the most important factor in any impact wrench.
