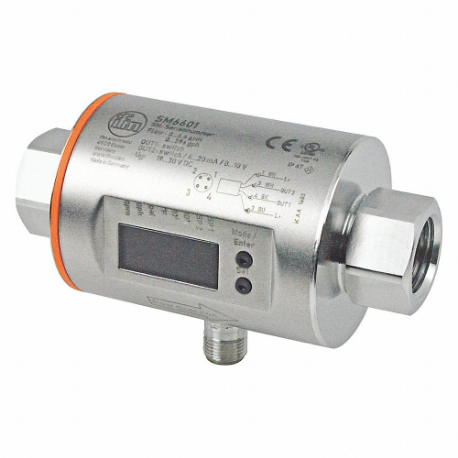

IFM SM6601 Magnetic-Inductive Flowmeter, 1/2 in, NPT, LED, 14 Deg F to 158 Deg F

Item: CR4LMX Model: SM6601Cross Ref: 62UM98
In Stock

Get it by Friday, Jun 13

Flat Shipping at €24.99 + VAT €24.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.

€995.51 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Item0.45A
Compatible Flow MaterialConductive Liquids, Water, Water-Like Liquids , Water
Connection Size1/2"
Connection TypeNPT
Display TypeLED
Flow Rate - Maximum396 GPH
Flow Rate - Minimum1.5 GPH
Flowmeter TypeElectromagnetic
For Pipe Size1/2"
Frequency - MaximumNot Applicable
Frequency - MinimumNot Applicable
Includes Flow Rate Adjustment KnobNo
Includes Pressure GaugeNo
Max. Flow Rate396 GPH
Max. Media Temp.158°F
Max. Operating Pressure232 psi
Max. Viscosity70 cST
Max. Voltage32V DC
Min. Flow Rate1.5 GPH
Min. Media Temp.14°F
Mounting OrientationUniversal
O-ring MaterialViton
Output TypeScaled Pulse
Overall Length110"
Shaft MaterialStainless Steel
Temp. Range+14°F to +158°F
Unit Of MeasureGallons
Viscosity - Maximum70 cST
Wetted MaterialStainless Steel
Accuracy+/-0.8% mW + 0.5% MEW
Flow Rate1.5-396 GPH
Housing MaterialNoryl, PBT, Polycarbonate, Stainless Steel
Includes TotalizerYes
Inlet/outlet Connection1/2" NPT
Manufacturer Warranty Length5 yrs.
Max. Media Temperature158°F
Media Temp. Range14°F to 158°F
Min. Media Temperature14°F
Mounting LocationInsertion
Product TypeMagnetic-Inductive Flow Meter
Seal MaterialStainless Steel
StandardsCE, CRN, CULUS APPROVED, DNV, EAC, EC 1935/2004, IO-LINK, UKCA

Shipping Info:

Ship weight (kg) 0.518
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54
