HONEYWELL EX-XR3 Explosion Proof Limit Swtch Top Actuator | AA4MZC 12V006

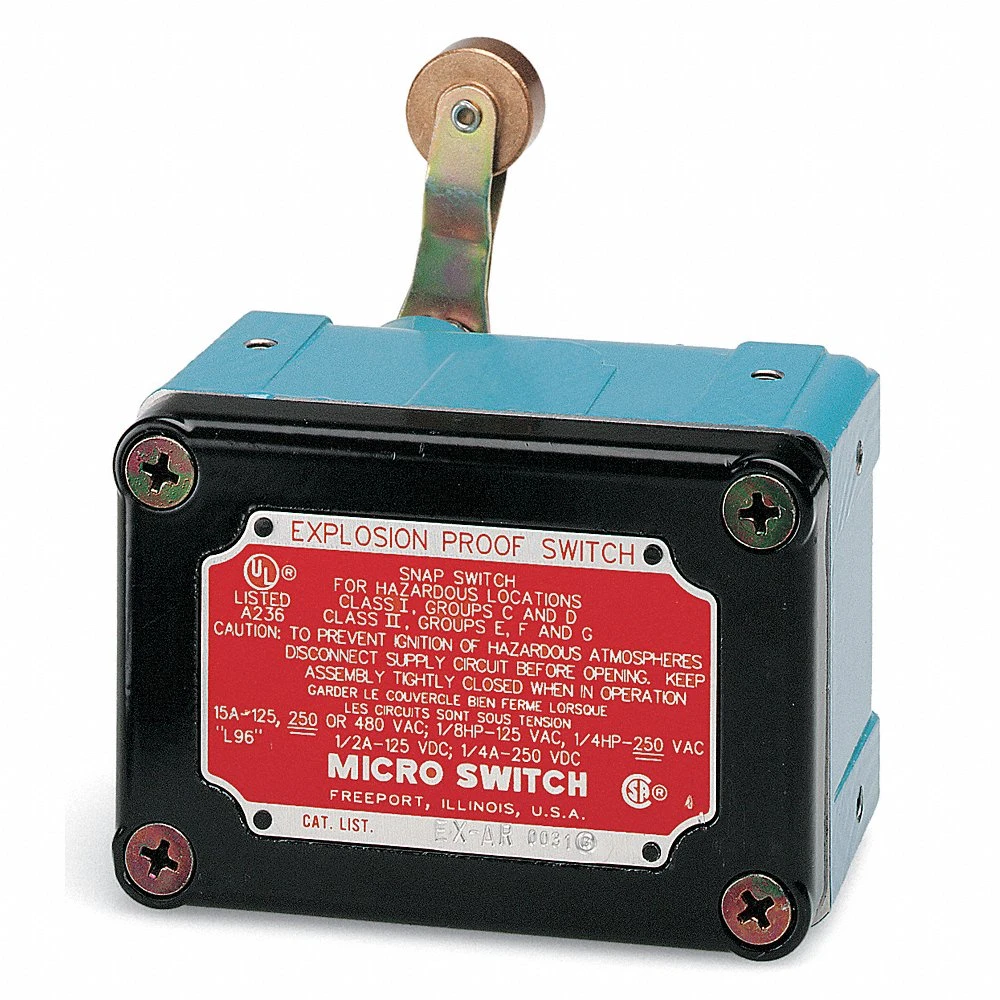

HONEYWELL EX-XR3 Explosion Proof Limit Swtch Top Actuator

Item: AA4MZC Model: EX-XR3Cross Ref: 12V006
In Stock

Get it by Tuesday, Jun 17

Free Shipping Eligible. Free shipping is applicable on orders over €150 and products weighing less than 5 kg. Products exceeding 5 kg will incur the default shipping charges.

€1,322.56 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemExplosion Proof Limit Switch
Actuator Length1 1/2"
Actuator Length - Limit Switch1 1/2"
Actuator LocationSide
Actuator StyleRotary Lever Arm
Actuator Style - Limit SwitchRoller Lever, Rotary
Basic Actuator StyleRotary
Basic Actuator Style (limit Switch)Rotary
Body Height - Limit Switch2 14/25"
Body MaterialAluminum
Body StyleMiniature
Body Style - Limit SwitchMiniature
Body Width2.78"
Boot Sealed ActuatorNo
Boot Sealed Actuator - Limit SwitchNo
CertificationATEX, IEC EX, DIV. 1, & 2, Class I, Groups C, & D; DIV. 1 & 2, Class II, Groups, E, F, & G; II 2 G, EEX D IIB + H2 T6
Current Rating - Nominal15A
Depth2.02"
Electrical ConnectionScrew Terminals
Head ActionSpring Return, Standard
Height2 14/25"
Ip RatingNo IP Rating
Limit Switch StyleExplosion Proof Limit Switch
Mounting - Limit SwitchSurface
Mounting Hole Spacing - Limit Switch2.06"
MovementCW
Operating Force0.75 lbs.
Operating Temp. Range-40°F to +160°F
Operator ConfigurationStandard
Over Travel Length90°
Pre-travel Length0.219"
Roller Dia.3/4"
Roller Width1/4"
Stem Thread - Limit SwitchNo Stem
Width2.78"
Ac Contact Rating10A @ 250V
Actuator TypeRoller Lever
Body ConfigurationNon Plug In
Body Depth2.02"
Body Height2.56"
Contact FormSPDT-1NO/1NC
Dc Contact Rating0.15 A @ 250 V
Directional MovementCW
Environments & ApplicationsHazardous Location Rated
Hazardous Location SpecificationClass I, Div 1 and 2, Group B, C, D, Class II, Div 1 and 2, Group E, F, G
Mounting Hole Horizontal Center To Center Distance52 mm
Mounting StyleSurface
Nema Enclosure RatingNEMA 1, NEMA 7, NEMA 9
Number Of Mounting Holes2
Operating Temperature - Maximum160°F
Operating Temperature - Minimum-40°F
Overtravel90°
Pretravel0.22"
Roller Diameter3/4"
SeriesEX Series
StandardsATEX, CE, CSA, IEC EX. INMETRO, UL LISTED

Shipping Info:

Ship weight (kg) 0.72
Ship height (cm)10.16
Ship length (cm)14.99
Ship width (cm)7.87
HS code8536509055
Country of OriginUS
