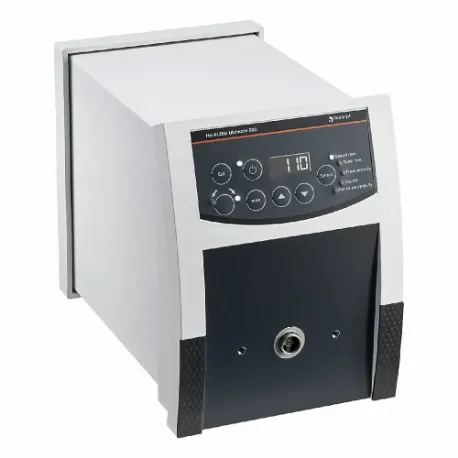

| Item | Chemical Metering Pump |
| Body Material | Metal |
| Chemical Metering Pump Type | Peristaltic |
| Compatible Chemicals | Alcohol, Ammonium Hydroxide, Antifreeze, Calcium Carbonate, Diesel, Diesel Exhaust Fluid, Gasoline, Hydrochloric Acid 10%, Hydrochloric Acid 20%, Hydrochloric Acid 30%, Hydrochloric Acid 40%, Hydrochloric Acid 100%, Kerosene, Oil-Based Paint, Oils, Phosphoric Acid 40%, Phosphoric Acid 50%, Phosphoric Acid 60%, Phosphoric Acid 70%, Phosphoric Acid 80%, Phosphoric Acid 90%, Phosphoric Acid 100%, Potassium Hydroxide 50%, Sodium Hydroxide 20%, Sodium Hydroxide 50%, Sodium Hydroxide 80%, Sodium Hypochlorite 5%, Sodium Hypochlorite 10%, Sodium Hypochlorite 20%, Sulfuric Acid 10%, Sulfuric Acid 20%, Sulfuric Acid 30%, Sulfuric Acid 40%, Sulfuric Acid 50%, Sulfuric Acid 60%, Sulfuric Acid 70%, Sulfuric Acid 80%, Sulfuric Acid 90%, Sulfuric Acid 100%, Water |
| Degassing Valve Included | No |
| Discharge Connection Size | Not Applicable |
| Discharge Connection Type | Not Applicable |
| Features | Flow Characteristic Of Pump Heads In Combination With Various Tubing Diameters Is Pre-Programmed For Accurate Flow Rate Numbers |
| Flow Rate Of Water Output Control | Variable |
| Flow Rate Output Control | Variable |
| Frequency | 60 Hz |
| Height | 8 55/64" |
| Hp - Pumps | 1/7 hp |
| Includes | Not Applicable |
| Intake Connection Size | Not Applicable |
| Intake Connection Type | Not Applicable |
| Length | 10 5/64" |
| Max. Flow Rate | 1542.96 GPD |
| Max. Hp | 1/7 hp |
| Max. Media Temp. | 205°C |
| Max. Motor Speed | 600 RPM |
| Max. Pressure | 29 psi |
| Max. Shut Off Pressure | 29 psi |
| Max. Viscosity | 3500 cPS |
| Maximum Motor Speed | 600 RPM |
| Media Temp. Range | -80°C to +205°C |
| Min. Flow Rate | 1 mL/min. |
| Min. Media Temp. | -80°C |
| Motor Hp | 1/7 hp |
| Motor Mounting Type | Insulated Drive System |
| Mounting Type | Insulated Drive System |
| Nameplate Voltage | 115V AC |
| No. Of Feeds | 0 |
| Overall Height | 8.9" |
| Overall Length | 10.1" |
| Overall Width | 6 1/2" |
| Phase - Pumps | 1 |
| Reproducibility | -2% to +2% |
| Reproducibility - Pumps | -2% to +2% |
| Roller Material | TFE |
| Self Priming | Yes |
| Tubing Material | Sold Separately |
| Width | 6 17/32" |
| Chemical Compatibility | Alcohol, Ammonium Hydroxide, Antifreeze, Calcium Carbonate, Diesel, Diesel Exhaust Fluid, Gasoline, Hydrochloric Acid 10%, Hydrochloric Acid 20%, Hydrochloric Acid 30%, Hydrochloric Acid 40%, Hydrochloric Acid 100%, Kerosene, Oil-Based Paint, Oils, Phosphoric Acid 40%, Phosphoric Acid 50%, Phosphoric Acid 60%, Phosphoric Acid 70%, Phosphoric Acid 80%, Phosphoric Acid 90%, Phosphoric Acid 100%, Potassium Hydroxide 50%, Sodium Hydroxide 20%, Sodium Hydroxide 50%, Sodium Hydroxide 80%, Sodium Hypochlorite 5%, Sodium Hypochlorite 10%, Sodium Hypochlorite 20%, Sulfuric Acid 10%, Sulfuric Acid 20%, Sulfuric Acid 30%, Sulfuric Acid 40%, Sulfuric Acid 50%, Sulfuric Acid 60%, Sulfuric Acid 70%, Sulfuric Acid 80%, Sulfuric Acid 90%, Sulfuric Acid 100%, Water |
| Flow Rate (maximum) | 1542.96 GPD |
| Flow Rate (minimum) | 1 mL/min. |
| Horsepower (maximum) | 1/7 hp |
| Media Temperature (maximum) | 205°C |
| Media Temperature (minimum) | -80°C |
| Media Temperature Range | -80°C to +205 °C |
| Motor Speed (maximum) | 600 RPM |
| Number Of Feeds | 0 |
| Phase | Single |
| Priming | Self Priming |
| Shut Off Pressure (maximum) | 29 psi |
| Standards | EN 61010-1:2010, EN 61326-1:2013, EN IEC 63000:2018, EN ISO 12100:2010 |
| Viscosity (maximum) | 3500 cPS |
