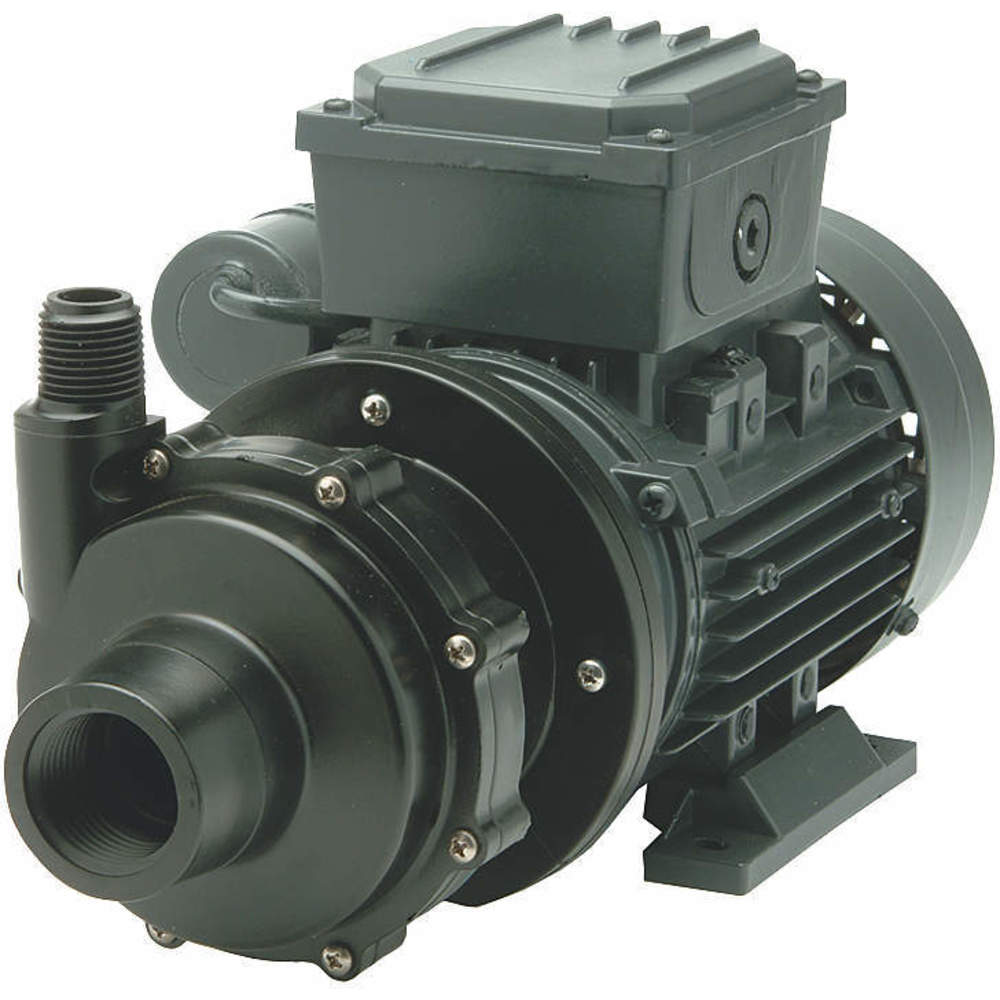

| Item | Magnetic Drive Pump |
| Amps | 2.4A |
| Application | Acids, Di Water, Plating Solutions, Sodium Hypochlorite , Acids, Di-Water, Plating Solutions, Sodium Hypochlorite |
| Bearing Type | Thrust, Radial |
| Bushing Material | PTFE |
| Chemical Compatibility | Deionized Water |
| Compatible Chemicals | Deionized Water |
| Design | Centrifugal |
| Discharge Pipe Size | 1/2" |
| Feet Of Head (maximum) | 35.2 ft. |
| Flow Rate @ 1 Ft. | 19.5 GPM |
| Flow Rate @ 15 Ft Of Head (maximum) | 16 GPM |
| Flow Rate @ 18 Ft Of Head (maximum) | 14.5 GPM |
| Flow Rate @ 18 Ft. | 14.5 GPM |
| Flow Rate @ 24 Ft Of Head (maximum) | 12.5 GPM |
| Flow Rate @ 24 Ft. | 12.5 GPM |
| Flow Rate @ 3 Ft Of Head (maximum) | 19.5 GPM |
| Flow Rate @ 3 Ft. | 19.5 GPM |
| Flow Rate @ 40 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 40 Ft. | 0 GPM |
| Flow Rate @ 50 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 50 Ft. | 0 GPM |
| Flow Rate @ 6 Ft Of Head (maximum) | 19.5 GPM |
| Flow Rate @ 6 Ft. | 19.5 GPM |
| Flow Rate @ 9 Ft Of Head (maximum) | 18.5 GPM |
| Flow Rate @ 9 Ft. | 18.5 GPM |
| Gasket | Fluoroelastomer |
| Gasket Material | FKM , Fluoroelastomer |
| Height | 6 2/5" |
| Horsepower (maximum) | 1/4 hp |
| Housing Material | PVDF |
| Hp | 1/4 hp |
| Impeller Material | PVDF |
| Inlet Size | 1" |
| Inlet Type | FNPT |
| Intake Pipe Size | 1" |
| Length | 12.9" |
| Max. Flow Rate @ 15 Ft. | 16 GPM |
| Max. Fluid Temp. | 220°F |
| Max. Head | 35 ft. , 35.2 ft. |
| Max. Operating Pressure | 60 psi |
| Max. Outlet Pressure | 14.2 psi |
| Max. Viscosity | 50 cPS |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Mounting Type | Horizontal |
| Motor Type | Permanent Split Capacitor |
| Mounting | Close Coupled |
| Mounting Location | Open Air |
| Mounting Orientation | Close Coupled , Horizontal |
| Operating Pressure | 14.2 psi |
| Operating Pressure (maximum) | 14.2 psi |
| Outlet Size | 1/2" |
| Outlet Type | MNPT |
| Overall Height | 6 2/5" |
| Overall Length | 12.9" |
| Overall Width | 6 1/5" |
| Phase | 1 |
| Priming | Manual |
| Rpm | 3450 RPM |
| Self Priming | Manual |
| Series | DB5 Series |
| Specific Gravity | 1.8 |
| Temp (f) @ 0 Psig | 220°F |
| Temp (f) @ 10 Psig | 220°F |
| Temp (f) @ 20 Psig | 220°F |
| Temp (f) @ 30 Psig | 220°F |
| Type | Flooded Suction |
| Viscosity (maximum) | 50 cPS |
| Voltage | 115V AC |
| Warranty | 5 yrs. |
| Width | 6 1/5" |
| Discharge Pipe Type | MNPT |
| Discharge Port | 1/2" MNPT |
| Full Load Current | 2.4A |
| Horsepower | 1/4 hp |
| Intake Pipe Type | FNPT |
| Manufacturers Warranty Length | 5 yrs. |
| Max. Discharge Pressure | 14.2 psi |
| Max. Flow Rate @ 15 Ft Of Head | 16 GPM |
| Max. Flow Rate @ 18 Ft Of Head | 14.5 GPM |
| Max. Flow Rate @ 24 Ft Of Head | 12.5 GPM |
| Max. Flow Rate @ 3 Ft Of Head | 19.5 GPM |
| Max. Flow Rate @ 6 Ft Of Head | 19.5 GPM |
| Max. Flow Rate @ 9 Ft Of Head | 18.5 GPM |
| Max. Fluid Temperature | 220°F |
| Max. Ft. Of Head | 35.2 ft. |
| Max. Specific Gravity | 1.8 |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Motor Speed (maximum) | 3450 RPM |
| Nameplate Voltage | 115V AC |
| Suction Port | 1" FNPT |
