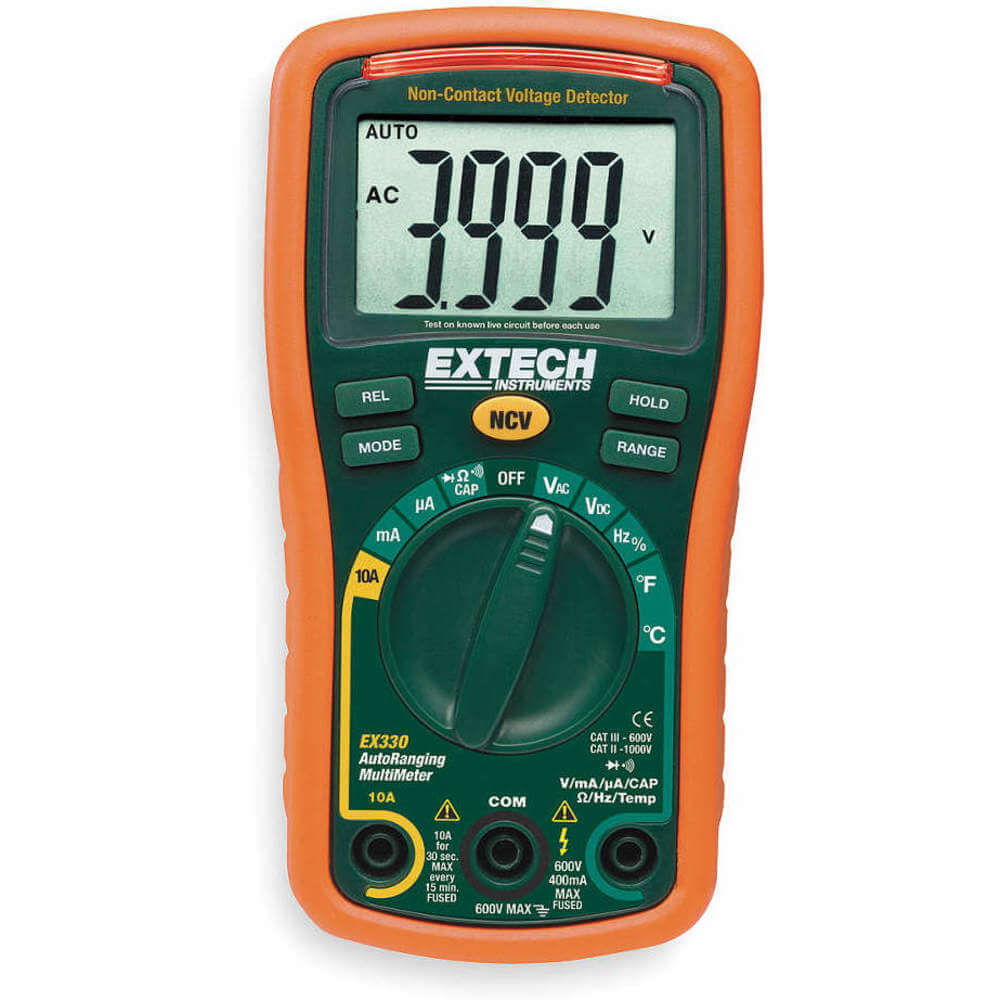

| Item | Digital Multimeter |
| Ac Response | Average |
| Audible Continuity | Yes |
| Auto Power Off | Yes |
| Battery Type | AAA Alkaline |
| Calibration Certificate | No |
| Capacitance | 0.001 nF to 200 µF |
| Counts | 4000 |
| Data Hold | Yes |
| Data Logging | No |
| Data Storage | Yes |
| Display | LCD |
| Duty Cycle | 0.1% to 99.9% |
| Frequency Counter Range | 0.001 Hz to 10 MHz |
| Interface | None |
| Max. Ac Amps | 10A |
| Max. Ac Voltage | 600V AC |
| Max. Dc Amps | 10A |
| Max. Dc Volts | 600V |
| Min./max. Memory | No |
| Multimeter Style | Compact |
| Peak Hold | No |
| Ac Current Measurement Resolution | 0.1 ?A |
| Ac Response Calculation | Average |
| Ac Voltage Measurement Resolution | 0.1V |
| Auto Ranging | Yes |
| Bar Graph Included | No |
| Basic Ac Current Accuracy | -0.5% to +0.5% |
| Basic Ac Voltage Accuracy | +/-0.5% |
| Basic Dc Current Accuracy | +/-2.5% |
| Basic Dc Voltage Accuracy | +/-0.50% |
| Batteries Included | Yes |
| Battery Access | Yes |
| Battery Chemistry | Alkaline |
| Battery Size | AAA |
| Bluetooth Compatible | No |
| Calibration Certificate Included | No |
| Capacitance Measurement Accuracy | ±0.50% |
| Capacitance Measurement Resolution | 0.001 nF |
| Computer Interface Connection Type | None |
| Dc Current Measurement Resolution | 0.1 uA |
| Dc Voltage Measurement Resolution | 0.1V |
| Depth | 1.6" |
| Diode Test | Yes |
| Display Type | LCD |
| Dustproof | No |
| Frequency Measurement Accuracy | +/-0.5% |
| Frequency Measurement Resolution | 0.001 Hz |
| Fuse Access | Yes |
| Includes | General Purpose Type K Bead Wire Probe and 2 AAA Batteries, Protective Holster, Test Leads, Tilt Stand |
| Instrument Counts | 4000 |
| Instrument Safety Rating | CAT II 1000V, CAT III 600V |
| Intrinsically Safe | No |
| Manufacturers Warranty Length | 2 yrs. |
| Maximum Ac Current Measurement | 10A |
| Maximum Ac Voltage Measurement | 600V |
| Maximum Capacitance Measurement | 200 µF |
| Maximum Dc Current Measurement | 10A |
| Maximum Dc Voltage Measurement | 600V |
| Maximum Frequency Measurement | 10 MHz |
| Maximum Operating Temperature | 122°F |
| Maximum Resistance Measurement | 40 m ohms |
| Maximum Storage Temperature | 140°F |
| Maximum Temperature Measurement | 1382°F |
| Minimum Capacitance Measurement | 0.001 nF |
| Minimum Frequency Measurement | 0.001 Hz |
| Minimum Operating Temperature | 32°F |
| Minimum Resistance Measurement | 0.1 ohms |
| Minimum Storage Temperature | -4°F |
| Minimum Temperature Measurement | -4°F |
| Minimum/maximum Memory | No |
| Overall Height | 5.7" |
| Overall Width | 2.9" |
| Parameters Measured | AC Voltage, DC Voltage, AC Current, DC Current, Capacitance, Frequency, Resistance, Temperature (K) |
| Pulse Width | Yes |
| Removable Screen | No |
| Resistance Measurement Accuracy | +/-1.2% |
| Resistance Measurement Resolution | 0.1 ohm |
| Software Included | No |
| Standards | CE, CULUS |
| Temperature Measurement Accuracy | ±3% |
| Temperature Measurement Resolution | 1°F |
| Thermal Imaging | No |
| Waterproof | No |
| Weight | 9.17 oz. |
