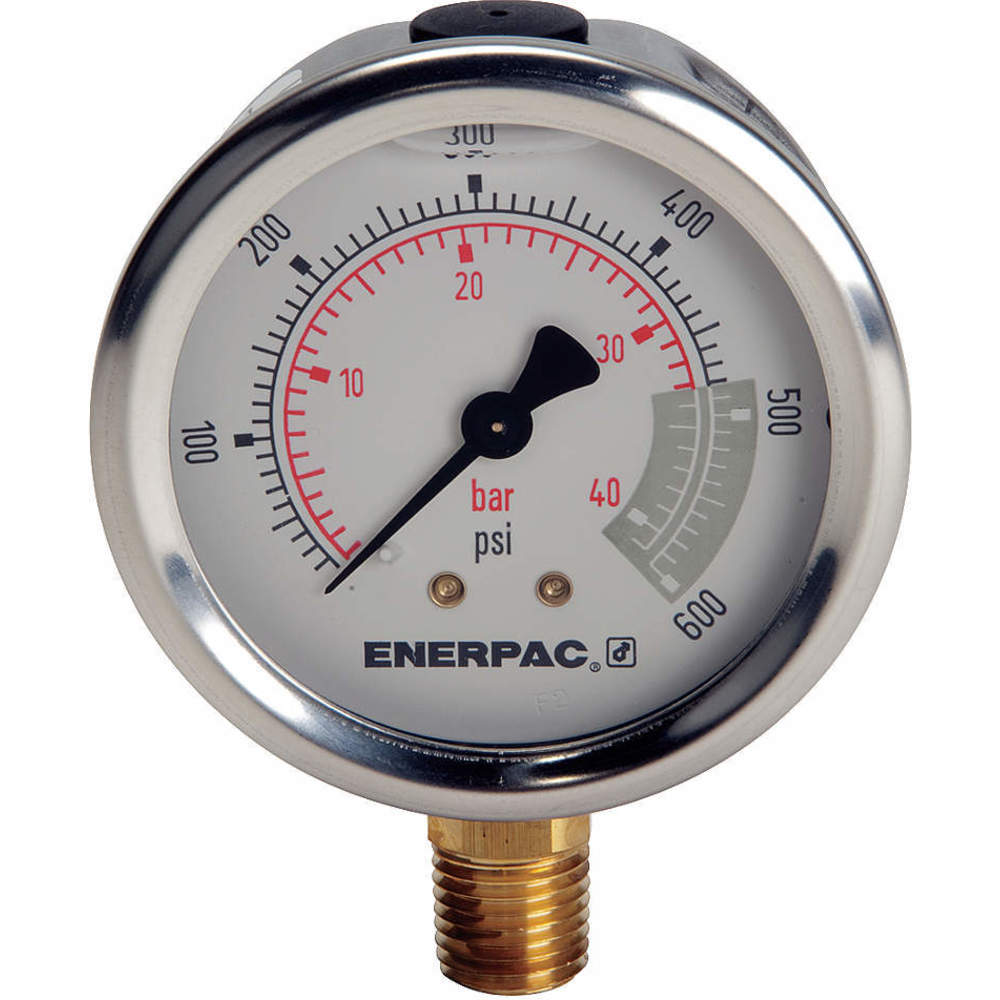

| Item | Pressure Gauge |
| Accuracy | -1.5% to +1.5% , 1.5% |
| Accuracy Scale | Full Scale |
| Application | General Purpose , Hydraulics |
| Basic Gauge Case Material | Stainless Steel |
| Blowout Safety Back | Yes |
| Calibration Certificate Included | No |
| Case Color | Metallic , Silver |
| Case Depth | 1.46" |
| Case Dia. | 2 1/2" |
| Case Material | Stainless Steel |
| Color | Silver |
| Connection Location | Lower |
| Dimension A | 2 1/2" |
| Dimension D | 3.31" |
| Field Fillable | No |
| For Use With | Hydraulics |
| Freeze Resistant Movement | No |
| Gauge Case Liquid | Glycerin |
| Gauge Connection Location | Bottom |
| Gauge Connection Size | 1/4" |
| Gauge Filled With | Glycerin |
| Gauge Mounting Method | Lower Mount |
| Gauge Nominal Dial Size | 2 1/2" |
| Gauge Panel Mountable | No |
| Gauge Primary Range Units | Psi |
| Gauge Type | Liquid Filled |
| Hazardous Location Rating | Not Rated |
| Includes Vent Plug | No |
| Ip Rating, Nema Rating | Not Rated |
| Lens Material | Glass |
| Liquid Filled | Yes |
| Liquid-filled Case | Yes |
| Major Graduation | 100 psi |
| Max. Operating Pressure | 600 psi |
| Mounting Hardware Included | No |
| Mounting Type | Lower Mount |
| Nominal Dial Size | 2 1/2" |
| Panel-mountable | No |
| Pressure And Vacuum Gauge Type | Pressure Gauge |
| Pressure Range Type | Pressure |
| Primary Pressure Range | 0 psi to 600 psi |
| Primary Scale Units | Psi |
| Process Connection Gender | Male |
| Process Connection Location | Bottom |
| Process Connection Size | 1/4" |
| Promotion Restriction | Not Eligible For Promotion |
| Range | 0 psi to 600 psi |
| Removable Bezel | No |
| Requires Adapter | Yes |
| Scale Type | Dual |
| Secondary Pressure Range | 0 psi to 40 psi |
| Secondary Scale Units | Bar |
| Smallest Graduation | 10 psi |
| Style | Glycerine Filled |
| Thread Dia. | 1/4" |
| Thread Type | NPTF |
| Adjustable Pointer | No |
| Case Construction | Corrosion Resistant |
| Case Diameter | 2.5" |
| Compatible Brand And Series | ENERPAC FM-25NG, Enerpac NV-251 |
| Compatible Gauge Adapter | Enerpac GA-3 |
| Compatible Grainger Part Number | 30W697, 30X062 |
| Compatible Manufacturer Model Number | FM-25NG, NV-251 |
| Dial Color | White |
| Gauge Lens Material | Glass |
| Graduations | 10 psi x 1 Bar |
| Hydraulic Pressure Gauge Type | Dial Pressure Gauge for Hydraulic Systems |
| Includes | Pressure Equalizing Membrane, Safety Blow Out Disk |
| Includes Mounting Hardware | No |
| Ip/nema Rating | Not Rated |
| Pressure Gauge Type | Hydraulic Cylinder Pressure Gauge |
| Pressure Range | 0 psi to 600 psi |
| Primary Range | 0 psi to 600 psi |
| Primary Scale Minor Graduations | 10 |
| Primary Units | Psi |
| Process Connection | 1/4" NPTF Male |
| Process Connection Type | NPTF |
| Secondary Range | 0 Bar to 40 Bar |
| Secondary Scale Minor Graduations | 1 |
| Secondary Units | Bar |
| Series | G |
| Socket Material | 303 Stainless Steel |
| Vibration Resistance | Liquid Filled |
