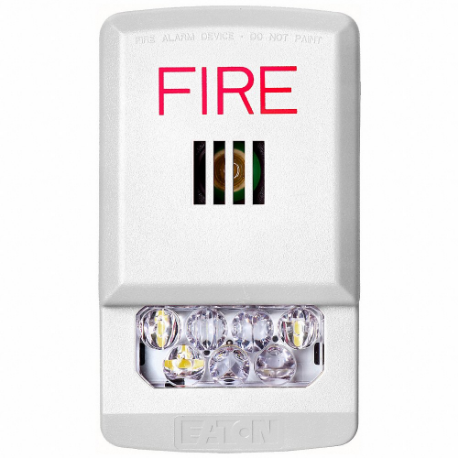

EATON ELHSW Eluxa Horn Strobe, 24 V, 86 Dba Decibels, Indoor, Wall, 4.79 Inch Ht, 2.76 Inch Width | CP4AQL

EATON ELHSW Eluxa Horn Strobe, 24 V, 86 Dba Decibels, Indoor, Wall, 4.79 Inch Height, 2.76 Inch Width

Item: CP4AQL Model: ELHSWCross Ref: 797FG3
In Stock

Get it by Tuesday, Jun 10

Flat Shipping at €24.99 + VAT €24.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.

€125.48 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemHorn Strobe
Amps Drawn0.022/0.03/0.06/0.086/0.125/0.185A
Audible Alarm TypeHorn
ColorWhite
Depth1.57"
FeaturesContinuous T3 And T3/T4, Energy Efficient, Fire And Co Signaling In 1 Device, Low-Profile Design
Height4.79"
Housing ColorWhite
Housing MaterialPlastic
IncludesMounting Plate
Indoor/outdoorIndoor
Lamp TypeLED
Lens ColorClear
Lens DesignLED
Lens MaterialLexan
Light Output185 cd
MountingWall
Noise Level86 dBA
Operating Temp. Range+32°F to +122°F
Sound PatternContinuous, Pulse
Visual Indicator TypeStrobe
Voltage24V
Wattage5 W
Width2 19/25"
Alarm Volume @ 10 Ft - Maximum86 dBA
Control ProtocolDirect Wire
For LocationIndoor
LegendFIRE
Light Operating ModeStrobe
Light SourceLED
Mounting LocationWall Mount
Mounting StyleSurface Mount
Operating Voltage24V
Overall Depth1 9/16"
Overall Height1 9/16"
Overall Width2 3/4"
Power SourceWire
Product TypeHorn and Strobe
Sound ContinuityContinuous
StandardsFCC, ROHS, UL LISTED, ULC

Shipping Info:

Ship weight (kg) 0.225
Ship height (cm)12.17
Ship length (cm)3.99
Ship width (cm)7.01
Country of OriginRO

Product Variants

ProductModelHousing ColorVoltageDepthDiameterColorAudible Alarm TypeSound PatternVisual Indicator TypePrice
EATON ELHSWC Eluxa Horn Strobe, 24 V, 86 Dba Decibels, Indoor, Ceiling, 1.91 Inch Ht, 6.27 Inch Width | CP4AQD ELHSWCWhite24V-6.23"WhiteHornContinuous, PulseStrobe€89.12
EATON ELHSRC Eluxa Horn Strobe, 24 V, 86 Dba Decibels, Indoor, Ceiling, 1.91 Inch Ht, 6.27 Inch Width | CP4AQE ELHSRC--------€111.06
EATON ELHSW-N Eluxa Horn Strobe, 24 V, 86 Dba Decibels, Indoor, Wall, 1.3 Inch Ht, 2.76 Inch Width | CP4AQF ELHSW-NWhite24V4 3/4"-WhiteHornContinuous, PulseStrobe€99.21
EATON ELHSR-N Eluxa Horn Strobe, 24 V, 86 Dba Decibels, Indoor, Wall, 1.3 Inch Ht, 2.76 Inch Width | CP4AQG ELHSR-N--------€99.21
EATON ELHSW-A Eluxa Horn Strobe, 24 V, 86 Dba Decibels, Indoor, Wall, 1.57 Inch Ht, 2.76 Inch Width | CP4AQH ELHSW-A--------€110.92
EATON ELHSW-AL Eluxa Horn Strobe, 24 V, 86 Dba Decibels, Indoor, Wall, 1.57 Inch Ht, 2.76 Inch Width | CP4AQJ ELHSW-ALWhite24V4.79"-WhiteHornContinuous, PulseStrobe€113.14
EATON ELHSR-A Eluxa Horn Strobe, 24 V, 86 Dba Decibels, Indoor, Wall, 1.57 Inch Ht, 2.76 Inch Width | CP4AQK ELHSR-A--------€98.10
