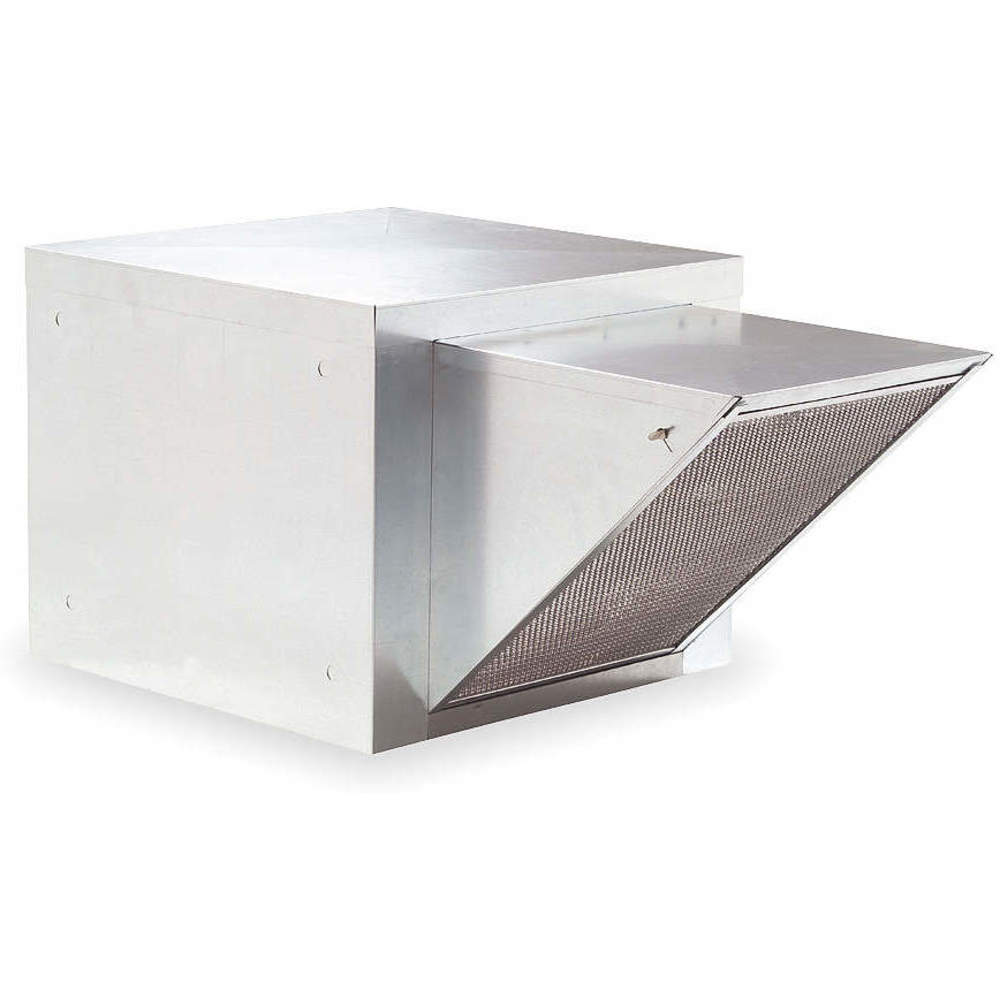

DAYTON 7HY86 Supply Vent With Drive Package 115/208-230 V | AF3MCQ

DAYTON 7HY86 Supply Vent With Drive Package 115/208-230 V

Item: AF3MCQ Model: 7HY86
Limited Availability
Request a Quote

Payment

Delivery

Product Specifications:

ItemSupply Ventilator
ApplicationCommercial Kitchen, Institutional Buildings
Assembled/unassembledUnassembled
AssemblyUnassembled
Base DiameterNot Applicable
Base Height1 1/2"
Base Length32 1/2"
Base ShapeSquare
Base Size - Roof Ventilators32 1/2" x 32 1/2"
Base Width32 1/2"
Bearing TypeSealed Pillow Block
Brake Horsepower3/4 hp
Cfm @ 0.125-in. Sp3139 CFM
Cfm @ 0.250-in. Sp2902 CFM
Cfm @ 0.375-in. Sp2562 CFM
Cfm @ 0.500-in. Sp2117 CFM
Dimension C27 1/2"
Discharge Length13 3/4"
Discharge Width15 5/8"
Drive Package IncludedYes
Drive Package With Motor IncludedYes
Drive TypeBelt Drive
Drive Type - Roof VentilatorsBelt Drive
Fan Rpm725 RPM
Fan Speed725 RPM
Filter Area3.75 sq. ft.
Filter Depth7/8"
Filter Height19 5/8"
Filter Housing Depth29 1/4"
Filter Housing Height27 1/2"
Filter Housing Width28 1/8"
Filter MaterialAluminum
Filter Width27 5/8"
Frequency60 Hz
Housing FinishGalvanized
Housing Height34 1/2"
Housing Length34 1/2"
Housing MaterialSteel
Housing Width63 4/5" , 64 1/2"
IncludesDrive Package, Washable Aluminum Filters
Includes Drive PackageYes
Includes MotorYes
Max. Bhp3/4 bhp
Max. Inlet Temp.120°F
Maximum Fan Speed725 RPM
Motor Horsepower3/4 hp
Motor Hp3/4 hp
Motor Hp - Roof Ventilators3/4 hp
Motor Hz60 Hz
Motor Voltage115/208-230V
Mount TypeRoof Curb
Mounting LocationRoof, Wall
No. Of Speeds1
Number Of Filters2
Number Of Filters Required2
Outlet Width15 5/8"
Overall Dia.Not Applicable
Overall Height32"
Overall Length34 1/2"
Overall Width63 3/4"
Phase1
Propeller Shaft Dia.3/4"
RequiresRoof Curb For New Installations
Shaft Dia. Sheave End3/4"
Shaft Dia. Wheel End3/4"
Shaft Dia. Wheel End (in.)3/4"
Sones @ 0.125-in. Sp @ 5 Ft.21 sones
Sones @ 0.250-in. Sp @ 5 Ft.21 sones
Spark Resistant Construction TypeA
Speed ControllableNo
TypeCentrifugal Belt Drive, With Drive Package
Wheel Bore3/4"
Wheel Dia.13 1/4"
Wheel MaterialSteel
Wheel TypeForward Curved
Compatible Curb Grainger Part Number2RB80, 2ZV84, 3C438, 4C455, 4HX42, 4HX50
Current11.0/5.4-5.5A
Includes Drive Package With MotorYes
Motor EnclosureTotally Enclosed Fan Cooled
Motor Speed1725 RPM
StandardsAMCA SOUND AND AIR, UL/CUL 705
Supply Airflow @ 0.000 In Sp3402 CFM
Wheel Diameter13 1/4"

Shipping Info:

Ship weight (kg) 115.38
Ship height (cm)81.28
Ship length (cm)87.63
Ship width (cm)161.93
HS code8414596060
Country of OriginUS

Product Details:

    • Filter Depth (In.) (7/8)

Product Variants

ProductModelMounting LocationNumber Of Filters RequiredFilter Housing HeightFilter Housing WidthFilter Housing DepthFilter AreaBase LengthBase WidthPrice
DAYTON 7HY74 Supply Vent With Drive Package 115 V | AF3MCC 7HY74Roof, Wall121 1/4"21 1/8"22"4.125 sq. ft.28 1/2"28 1/2"€2,354.25
DAYTON 7HY75 Supply Vent With Drive Package 115/208-230 V | AF3MCD 7HY75Roof, Wall121 1/4"21 1/8"22"4.125 sq. ft.28 1/2"28 1/2"€2,437.10
DAYTON 7HY76 Supply Vent With Drive Package 115/208-230 V | AF3MCE 7HY76Roof, Wall121 1/4"21 1/8"22"4.125 sq. ft.28 1/2"28 1/2"€2,480.34
DAYTON 7HY77 Supply Vent With Drive Package 115/208-230 V | AF3MCF 7HY77Roof, Wall121 1/4"21 1/8"22"4.125 sq. ft.28 1/2"28 1/2"€2,758.53
DAYTON 7HY78 Supply Vent With Drive Package 208-220/440 V | AF3MCG 7HY78Roof, Wall121 1/4"21 1/8"22"4.125 sq. ft.28 1/2"28 1/2"€2,533.61
DAYTON 7HY79 Supply Vent With Drive Package 115/208-230 V | AF3MCH 7HY79Roof, Wall121 1/4"21 1/8"22"4.125 sq. ft.28 1/2"28 1/2"€2,613.34
DAYTON 7HY80 Supply Vent With Drive Package 208-230/460 V | AF3MCJ 7HY80Roof, Wall121 1/4"21 1/8"22"4.125 sq. ft.28 1/2"28 1/2"€2,639.89
