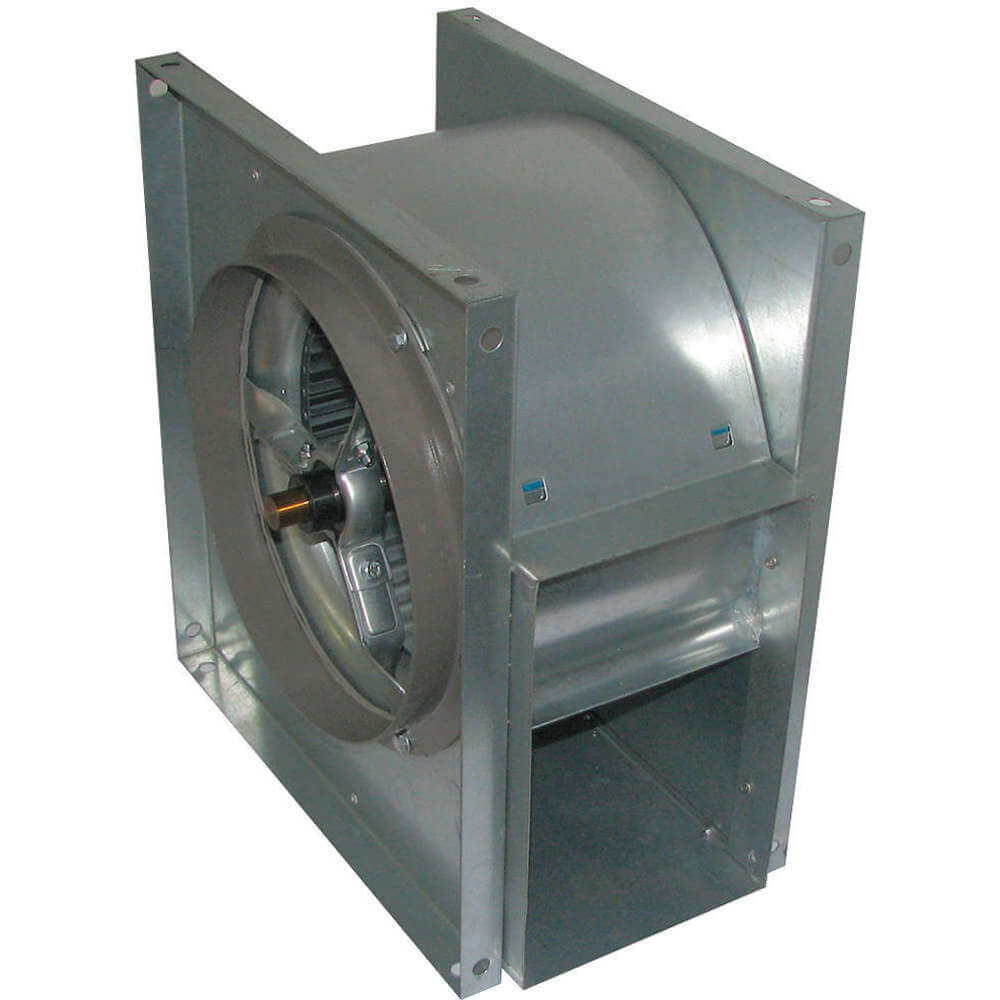

| Item | Blower |
| Amca Fan Class | Not Rated |
| Application | Air Conditioning, Exhausting, General Ventilation, Heating |
| Assembly | Unassembled |
| Bearing Type | Ball |
| Blower Rpm | 470 RPM |
| Brake Horsepower | Not Applicable |
| Chemical Resistant | No |
| Compatible Speed Control | Not Applicable |
| Corrosion Resistant | Yes |
| Current | Not Applicable |
| Dimension A | 20 1/2" |
| Dimension B | 19 1/4" |
| Dimension C | 9 1/16" |
| Dimension D | 11/16" |
| Dimension E | 13 7/16" |
| Dimension F | 12 1/16" |
| Dimension G | 11 1/4" |
| Dimension H | 10 3/8" |
| Dimension J | 11 3/4" |
| Dimension K | 8 1/4" |
| Dimension L | 21 1/8" |
| Dimension M | 8 1/4" |
| Dimension R | 3/4" |
| Dimension S | 3 1/8" |
| Dimension T | 1 1/16" |
| Dimension X | 3/16" |
| Dimension Y | 13/16" |
| Dimension Z | 1/2" |
| Discharge Height | 13 7/16" |
| Discharge Position | Bottom Horizontal, Down Blast, Top Horizontal, Up Blast |
| Discharge Width | 8 1/4" |
| Drive Type | Belt Drive |
| Electrical Connection | Not Applicable |
| Features | Die-Stamped Steel Housing, Precision, Balanced Wheels, Provides Quiet, Efficient Performance |
| Flange Size | Not Applicable |
| For High-static Pressure Applications | Yes |
| For Location | Indoor |
| For Ventilation Type | Exhaust, Make-Up, Return, Supply |
| Hazardous Location Application | No |
| Hazardous Location Specification | Not Applicable |
| Housing Color | Silver |
| Housing Depth | 19.9" |
| Housing Finish | Galvanized |
| Housing Height | 20 1/2" |
| Housing Length | 19 1/4" |
| Housing Material | Steel |
| Housing Width | 8 1/4" , 8 1/5" |
| Includes | Blower Wheel, Galvanized Housing, Housing Support With Resilient Mounting Pad, Motor Mounting Bracket With Hardware Bag |
| Includes Drive Package | No |
| Includes Motor | No |
| Includes Mounting Hardware | Yes |
| Inlet Dia. | 12 1/16" , 12.062" |
| Inlet Diameter | 12" |
| Max. Ambient Temp. | 104°F |
| Max. Blower Rpm | 670 RPM |
| Max. Inlet Temp. | 150°F |
| Max. Motor Hp | 1 1/2 hp |
| Maximum Fan Speed | 970 RPM |
| Maximum Motor Speed | Not Applicable |
| Min. Motor Hp | 1/2 hp |
| Minimum Fan Speed | 650 RPM |
| Minimum Motor Speed | Not Applicable |
| Motor Frame Designation | Not Applicable |
| Motor Location | Not Applicable |
| Mount Type | Multiposition |
| Mounting Orientation | Multiposition |
| Mounting Position | Blower Shaft Horizontal |
| No. Of Inlets | 1 |
| Number Of Discharge Positions | 4 |
| Oem Replacement | Not Applicable |
| Outlet Dia. | Not Applicable |
| Outlet Height | 13 3/8" , 13.437" |
| Outlet Shape | Rectangular |
| Outlet Width | 8 1/4" |
| Overall Depth | 19 7/8" |
| Overall Height | 21 1/8" |
| Overall Width | 13 1/4" |
| Replacement For | Not Applicable |
| Resistance Properties | Corrosion Resistant |
| Rotation | CW |
| Shaft Dia. | 3/4" |
| Sound Level | Not Rated |
| Spark Resistant Construction Type | Not Applicable |
| Speed Controllable | No |
| Thermal Overload Protection | Not Applicable |
| Type | Belt Drive, Single Inlet Forward Curve Less Drive Package |
| Wheel Bore Diameter | 3/4" |
| Wheel Dia. | 12 3/4" |
| Wheel Material | Steel |
| Wheel Material Finish | Galvanized |
| Wheel Width | 6" |
| Housing Material Finish | Galvanized |
| Maximum Airflow | 2750 CFM |
| Minimum Airflow | 1050 CFM |
| Outlet Type | Non Flanged |
| Wheel Diameter | 12 3/4" |
| Wheel Type | Forward Curved |
