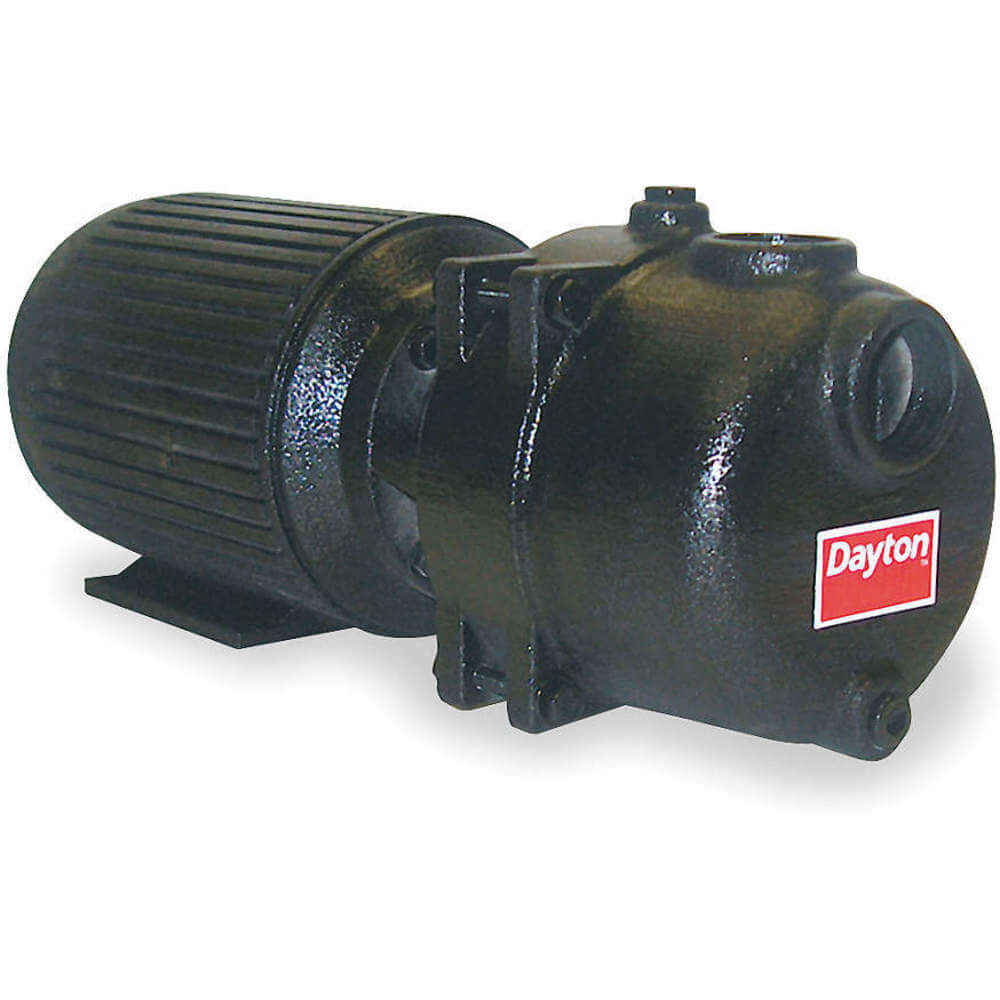

| Item | Sewage/Trash Centrifugal Pump |
| Amps | 7.2/3.6A |
| Bearing Type | Ball |
| Best Efficiency Flow Range @ Head | 70-94 GPM @ 33-24 Ft |
| Best Efficiency Flow Rate @ Head | 55 GPM @ 39 ft. |
| Best Efficiency Head | 39 ft. |
| Compatible Discharge Pipe Size | 2" |
| Compatible Intake Pipe Size | 2" |
| Drain Plug Size | 3/8" |
| Duty | Continuous |
| Duty - Pumps | Continuous |
| Duty Cycle | Continuous |
| Feet Of Head (minimum) | 2 ft. |
| Flow Rate @ 100 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 2 Ft. | 160 GPM |
| Flow Rate @ 20 Ft Of Head (maximum) | 110 GPM |
| Flow Rate @ 20 Ft. | 105 GPM |
| Flow Rate @ 25 Ft. | 100 GPM |
| Flow Rate @ 30 Ft. | 78 GPM |
| Flow Rate @ 39 Ft. | 55 GPM |
| Flow Rate @ 40 Ft Of Head (maximum) | 54 GPM |
| Flow Rate @ 40 Ft. | 54 GPM |
| Flow Rate @ 50 Ft. | 30 GPM |
| Flow Rate @ 80 Ft Of Head (maximum) | Not Applicable |
| Flow Rate Of Water @ 25 Ft. | 100 GPM |
| Flow Rate Of Water @ 50 Ft. | 30 GPM |
| For Media Type | Sewage |
| Frame | 56J |
| Frequency | 60 Hz |
| Gpm Of Water @ 2 Ft. | 160 GPM |
| Gpm Of Water @ 20 Ft. | 105 GPM |
| Gpm Of Water @ 30 Ft. | 78 GPM |
| Gpm Of Water @ 40 Ft. | 54 GPM |
| Height | 8 2/3" |
| Housing Material | Cast Iron |
| Hp | 3 hp |
| Hp - Pumps | 3 hp |
| Impeller Material | Stainless Steel |
| Impeller Type | Non Clog |
| Includes | Strainer |
| Inlet Pressure | 25 psi |
| Inlet Size | 2" |
| Length | 21 1/3" |
| Max. Case Pressure | 60 psi |
| Max. Dia. Solids - Pumps | 1" |
| Max. Feet Of Head | 60 ft. |
| Max. Flow Rate | 160 GPM |
| Max. Head | 60 ft. |
| Max. Head - Pumps | 60 ft. |
| Max. Media Temp. | 160°F |
| Max. Solid Dia. | 1" |
| Max. Specific Gravity | 1 |
| Max. Suction Lift | 20 ft. |
| Media Type | Sewage |
| Min. Flow Rate | 30 GPM |
| Min. Head | 2 ft. |
| Min. Media Temp. | 40°F |
| Motor Ambient Temp. | 104°F |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Designation | 56J |
| Motor Type | Three Phase |
| Npshr | 25 psi |
| Operation | Manual |
| Outlet Size | 2" |
| Outlet Type | NPT |
| Overall Height | 8.7" |
| Overall Length | 21.3" |
| Overall Width | 8 3/5" |
| Overload Thermal Protection | No , None |
| Phase | 3 |
| Port Rotation | None |
| Port Rotation - Pumps | No |
| Pump Housing Material | Cast Iron |
| Pumping Application | Clear Or Gray Water, Irrigation, Liquid Transfer, Sewage Treatment |
| Requires Control Panel | Yes |
| Rpm | 3450 RPM |
| Screw Finish | Zinc Plated |
| Seal Material | Buna N, Carbon Ceramic , Buna N, Carbon, Ceramic |
| Seal Type | Mechanical |
| Self Priming | Yes |
| Self-priming | Yes |
| Service Factor | 1 |
| Shaft Material | Stainless Steel |
| Solid Diameter (maximum) | 1" |
| Specific Gravity | 1 |
| Specific Gravity (maximum) | 1 |
| Submersible | No |
| Voltage | 230/460V AC |
| Volute Material | Cast Iron |
| Wetted Material | Buna N, Carbon Ceramic, Cast Iron, Stainless Steel |
| Width | 8 3/5" |
| Compatible Pipe Size | 2" |
| Compatible With Media Type | Sewage |
| Connection Type | NPT |
| Flow Rate (minimum) | 30 GPM |
| Manufacturer Warranty Length | 1 yr. |
| Maximum Flow Rate @ 20 Feet Of Head | 110 GPM |
| Maximum Solid Diameter | 1" |
| Maximum Suction Lift | 20 ft. |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Priming | Self Priming |
| Standards | CULUS LISTED |
| Thermal Overload Protection | No |
