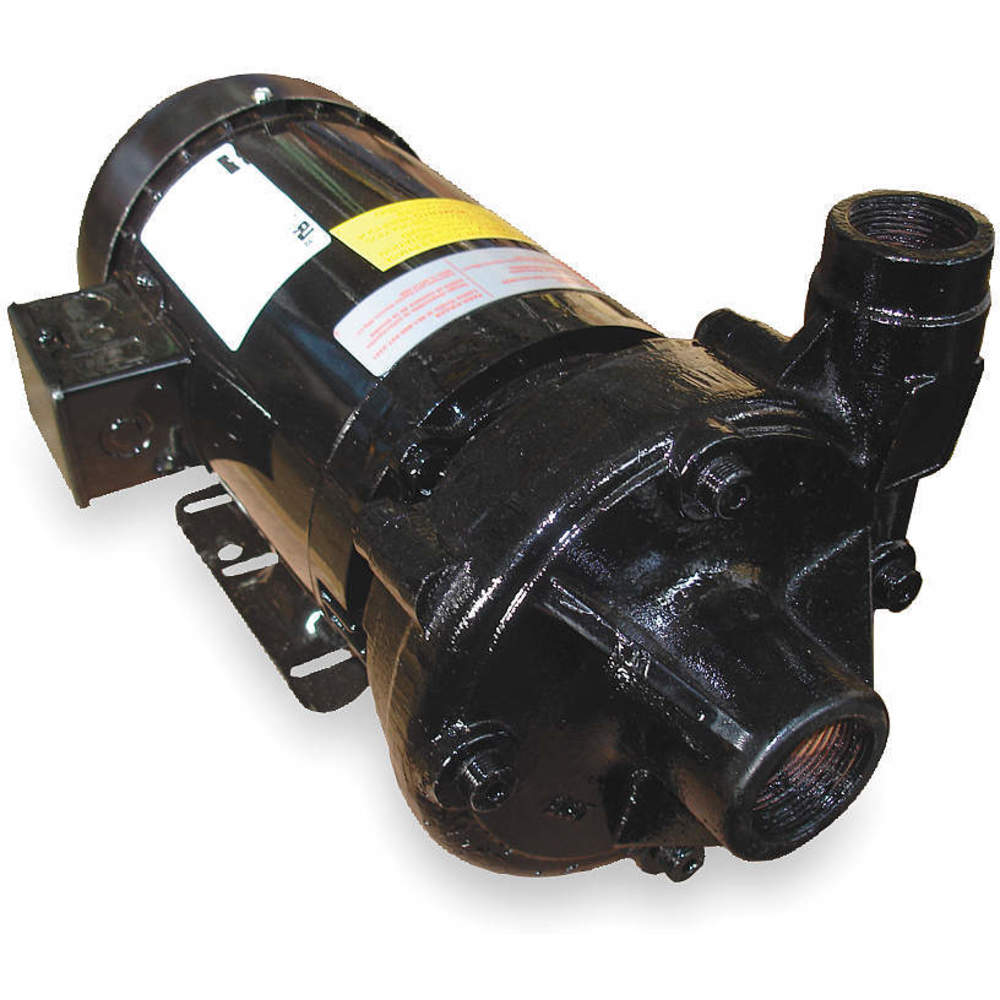

| Item | Centrifugal Pump |
| Amps | 3.8/7.6-8.3A |
| Bearing Type | Ball |
| Best Efficiency Flow | 95 GPM |
| Best Efficiency Flow Range @ Head | 40 to 87 GPM @ 100 to 50 ft. |
| Best Efficiency Flow Rate @ Head | 70 GPM @ 72 ft. |
| Best Efficiency Head | 57 ft. |
| Compatible Discharge Pipe Size | 1 1/4" |
| Compatible Intake Pipe Size | 1 1/2" |
| Drain Plug | Easily Accessible |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Features | Continuous High Pressure Circulation |
| Feet Of Head (minimum) | 10 ft. |
| Flow Rate @ 1 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 10 Ft Of Head (maximum) | 107 GPM |
| Flow Rate @ 100 Ft Of Head (maximum) | 43 GPM |
| Flow Rate @ 120 Ft Of Head (maximum) | 17 GPM |
| Flow Rate @ 140 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 15 Ft Of Head (maximum) | 105 GPM |
| Flow Rate @ 160 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 180 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 20 Ft Of Head (maximum) | 103 GPM |
| Flow Rate @ 200 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 220 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 240 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 260 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 280 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 30 Ft Of Head (maximum) | 98 GPM |
| Flow Rate @ 300 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 40 Ft Of Head (maximum) | 92 GPM |
| Flow Rate @ 5 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 50 Ft Of Head (maximum) | 87 GPM |
| Flow Rate @ 60 Ft Of Head (maximum) | 79 GPM |
| Flow Rate @ 70 Ft Of Head (maximum) | 72 GPM |
| Flow Rate @ 80 Ft Of Head (maximum) | 63 GPM |
| Flow Rate @ 90 Ft Of Head (maximum) | 55 GPM |
| For Media Type | Non-Flammable Liquids |
| For Use With Potable Systems | No |
| Frame | 56J |
| Height | 8.9" |
| Housing Material | Cast Iron |
| Hp | 3 hp |
| Hp - Pumps | 3 hp |
| Impeller Design | Closed |
| Impeller Material | Brass |
| Impeller Type | Closed |
| Includes | Manual |
| Inlet Pressure | 200 psi |
| Length | 17 1/5" |
| Max. Case Pressure | 200 psi |
| Max. Feet Of Head | 130 ft. |
| Max. Flow Rate @ 10 Ft. | 107 GPM |
| Max. Flow Rate @ 100 Ft. | 43 GPM |
| Max. Flow Rate @ 110 Ft. | 32 GPM |
| Max. Flow Rate @ 120 Ft. | 17 GPM |
| Max. Flow Rate @ 130 Ft. | 2 GPM |
| Max. Flow Rate @ 140 Ft. | 105 GPM |
| Max. Flow Rate @ 15 Ft. | 105 GPM |
| Max. Flow Rate @ 20 Ft. | 103 GPM |
| Max. Flow Rate @ 25 Ft. | 100 GPM |
| Max. Flow Rate @ 30 Ft. | 98 GPM |
| Max. Flow Rate @ 40 Ft. | 92 GPM |
| Max. Flow Rate @ 50 Ft. | 87 GPM |
| Max. Flow Rate @ 60 Ft. | 79 GPM |
| Max. Flow Rate @ 70 Ft. | 72 GPM |
| Max. Flow Rate @ 80 Ft. | 63 GPM |
| Max. Flow Rate @ 90 Ft. | 55 GPM |
| Max. Flow Rate @ Head | 107 GPM @ 10 ft. |
| Max. Head | 130 ft. , 131 ft. |
| Max. Liquid Temp. | 200°F |
| Max. Operating Pressure | 56 psi |
| Max. Solid Dia. | 5/16" |
| Max. Specific Gravity | 1 |
| Media Type | Non Flammable Liquids |
| Min. Flow Rate @ Head | 2 GPM @ 130 ft. |
| Min. Head | 10 ft. |
| Motor Enclosure Design | Totally Enclosed Fan Cooled |
| Motor Frame Designation | 56J |
| Motor Type | Totally Enclosed Fan Cooled |
| Overall Height | 8.9" |
| Overall Length | 17 1/5" |
| Overall Width | 8 4/5" |
| Phase | 3 |
| Port Rotation | Four Position |
| Pump Housing Material | Cast Iron |
| Rpm | 3450 RPM |
| Screw Finish | Zinc Plated |
| Seal Application | Long Life When Not Run Dry Or Pumping Abrasives |
| Seal Material | Viton |
| Seal Type | Mechanical , Mechanical Carbon On Ceramic |
| Service Factor | 1.15 |
| Shaft Material | Stainless Steel |
| Shut Off Pressure | 56 psi |
| Shut Off Pressure (maximum) | 56 psi |
| Solid Diameter (maximum) | 0.31" |
| Specific Gravity | 1 |
| Specific Gravity (maximum) | 1 |
| Type | High Head |
| Voltage | 230/460V AC |
| Volute Material | Cast Iron |
| Wetted Material | Brass, Carbon, Cast Iron, Ceramic, Stainless Steel, Viton |
| Wetted Materials | Brass, Carbon, Cast Iron, Ceramic, Stainless Steel, Viton |
| Width | 8 4/5" |
| Compatible With Media Type | Non-Flammable Liquids |
| Connection Type | NPT |
| Discharge Type | NPT |
| Frequency | 60 Hz |
| Horsepower | 3 hp |
| Maximum Feet Of Head | 130 ft. |
| Maximum Flow Rate @ 10 Feet Of Head | 107 GPM |
| Maximum Flow Rate @ 100 Feet Of Head | 43 GPM |
| Maximum Flow Rate @ 120 Feet Of Head | 17 GPM |
| Maximum Flow Rate @ 140 Feet Of Head | 105 GPM |
| Maximum Flow Rate @ 20 Feet Of Head | 103 GPM |
| Maximum Flow Rate @ 30 Feet Of Head | 98 GPM |
| Maximum Flow Rate @ 40 Feet Of Head | 92 GPM |
| Maximum Flow Rate @ 50 Feet Of Head | 87 GPM |
| Maximum Flow Rate @ 60 Feet Of Head | 79 GPM |
| Maximum Flow Rate @ 70 Feet Of Head | 72 GPM |
| Maximum Flow Rate @ 80 Feet Of Head | 63 GPM |
| Maximum Flow Rate @ 90 Feet Of Head | 55 GPM |
| Motor Enclosure | Totally Enclosed Fan Cooled |
| Nameplate Voltage | 230/460V AC |
| Rpm (maximum) | 3450 RPM |
| Standards | UL LISTED (MOTOR ONLY) |
