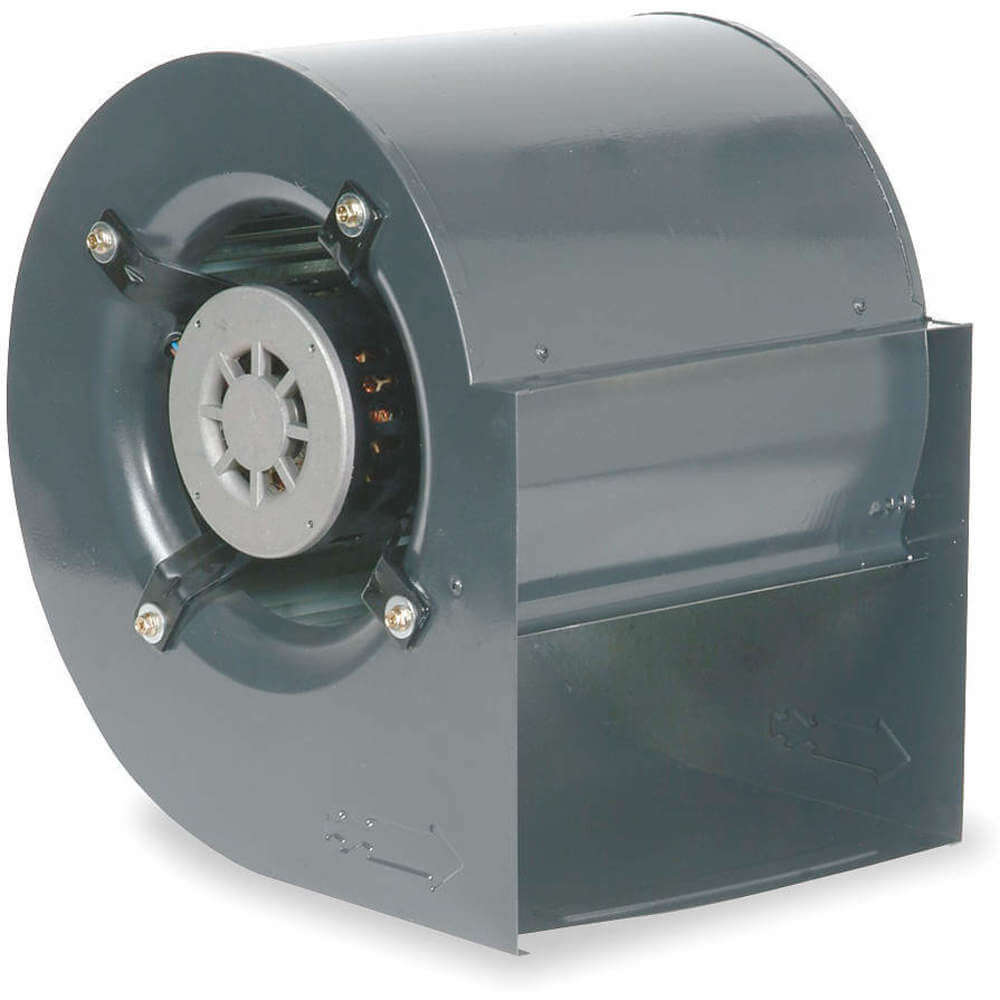

| Item | Blower |
| Airflow @ 0.000 In Sp | Not Applicable |
| Airflow @ 0.100 In Sp | Not Applicable |
| Airflow @ 0.125 In Sp | Not Applicable |
| Airflow @ 0.250 In Sp | Not Applicable |
| Airflow @ 0.375 In Sp | Not Applicable |
| Airflow @ 0.400 In Sp | Not Applicable |
| Airflow @ 0.500 In Sp | Not Applicable |
| Airflow @ 0.750 In Sp | Not Applicable |
| Airflow @ 1.000 In Sp | Not Applicable |
| Airflow @ 1.250 In Sp | Not Applicable |
| Airflow @ 1.500 In Sp | Not Applicable |
| Airflow @ 10.00 In Sp | Not Applicable |
| Airflow @ 11.00 In Sp | Not Applicable |
| Airflow @ 12.00 In Sp | Not Applicable |
| Airflow @ 13.00 In Sp | Not Applicable |
| Airflow @ 2.000 In Sp | Not Applicable |
| Airflow @ 2.500 In Sp | Not Applicable |
| Airflow @ 3.000 In Sp | Not Applicable |
| Airflow @ 3.500 In Sp | Not Applicable |
| Airflow @ 4.000 In Sp | Not Applicable |
| Airflow @ 4.500 In Sp | Not Applicable |
| Airflow @ 5.000 In Sp | Not Applicable |
| Airflow @ 6.000 In Sp | Not Applicable |
| Airflow @ 7.000 In Sp | Not Applicable |
| Airflow @ 8.000 In Sp | Not Applicable |
| Airflow @ 9.000 In Sp | Not Applicable |
| Amca Fan Class | Not Rated |
| Amps | 9A |
| Application | Air Conditioners, Air Cooling, Cooling, Drying, Component Cooling, General Heating, Machine Cooling, Space Ventilation, Ventilating |
| Assembled/unassembled | Assembled |
| Assembly | Assembled |
| Bearing Type | Ball |
| Brake Horsepower | 3/4 hp |
| Cfm Range | 2016 To 880 @ 0.900-in. sp To 1.30-in. sp |
| Chemical Resistant | No |
| Color | Gray |
| Compatible Speed Control | No |
| Corrosion Resistant | Yes |
| Discharge Height | 11 3/8" |
| Discharge Position | Bottom Horizontal, Down Blast, Top Horizontal, Up Blast |
| Discharge Width | 13 1/16" |
| Drive Type | Direct Drive |
| Electrical Connection | Wire Leads |
| Flange Size | Not Applicable |
| Footnotes | # Motor Overload Condition |
| For Air Type | Clean Air |
| For High-static Pressure Applications | No |
| For Location | Indoor |
| For Ventilation Type | Exhaust, Make-Up, Return, Supply |
| Frequency | 60 Hz |
| Full Load Amps | 9A |
| Hazardous Location Application | No |
| Hazardous Location Specification | Not Applicable |
| High-efficiency Motor | No |
| Housing Color | Gray |
| Housing Depth | 16 9/16" , 16.562" |
| Housing Height | 17 5/16" , 17.312" |
| Housing Material | Steel |
| Housing Width | 14 1/16" , 14.062" |
| Includes | Not Applicable |
| Includes Drive Package | Not Applicable |
| Includes Motor | Yes |
| Includes Mounting Hardware | No |
| Inlet Dia. | 8 5/8" |
| Max. Ambient Temp. | 104°F |
| Max. Inlet Temp. | 104°F |
| Motor Duty Class | Continuous |
| Motor Enclosure Design | Open Dripproof |
| Motor Horsepower | 3/4 hp |
| Motor Hp | 3/4 hp |
| Motor Location | In Airstream |
| Motor Type | Permanent Split Capacitor |
| Mount Type | Multiposition |
| Mounting | Multiposition , Multipostion |
| Mounting Orientation | Multiposition |
| No. Of Discharge Positions | 4 |
| Number Of Inlet | 2 |
| Number Of Speeds | 4 |
| Oem Replacement | Yes |
| Outlet Dia. | Not Applicable |
| Outlet Height | 11 3/8" |
| Outlet Shape | Rectangular |
| Outlet Width | 13 1/16" |
| Overall Depth | 16 9/16" |
| Overall Width | 14 1/16" |
| Replacement For | 5C094 |
| Resistance Properties | Corrosion Resistant |
| Shaft Dia. | 14 mm |
| Sound Level | Not Rated |
| Spark Resistant Construction Type | Not Rated |
| Speed Control | No |
| Speed Controllable | No |
| Thermal Protection | Yes |
| Type | Assembled, Direct Drive, Double Inlet Forward Curve, With Motor |
| Wheel Bore Diameter | 14 mm |
| Wheel Dia. | 11" |
| Wheel Material | Steel |
| Wheel Material Finish | Galvanized |
| Wheel Width | 10 9/16" , 10.562" |
| Current | 9A |
| Housing Material Finish | Enamel |
| Inlet Diameter | 8 5/8" |
| Maximum Fan Speed | 1100 RPM |
| Minimum Fan Speed | 0 RPM |
| Motor Enclosure | Open Dripproof |
| Motor Ip Rating | IP20 |
| Motor Speed | 1100 RPM |
| Outlet Type | Non Flanged |
| Overall Height | 17 5/16" |
| Rotation | CW |
| Standards | CE AND ROHS COMPLIANCE, CULUS RECOGNIZED (E47479) FOR THE MOTOR ONLY NOT THE BLOWER |
| Thermal Overload Protection | Yes |
| Wheel Diameter | 11" |
| Wheel Type | Forward Curved |
