CLEVELAND C86228 3/4 Inch -10 Machine Tap, Plug, 4 Flutes, Cobalt, Steam Oxide Tap Finish | CD2HHR 45EN37

CLEVELAND C86228 0 3/4 Inch -10 Machine Tap, Plug, 4 Flutes, Cobalt, Steam Oxide Tap Finish

Item: CD2HHR Model: C86228Cross Ref: 45EN37 / 0
In Stock

Get it by Monday, Jun 16

Flat Shipping at €24.99 + VAT €24.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.

€166.83 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemMachine Tap
Dimension TypeImperial
FinishBlack Oxide
List NumberPER-862SP
MaterialCobalt
Number Of Flutes4
Number Of Pieces1
Overall Length4.922"
Shank Dia.0.59"
Tap ChamferPlug
Tap TypeSpiral Point
Thread DirectionRight Hand
Thread Length1 7/64"
Thread Size3/4"-10
Thread TypeCoarse
55% Thread Drill Size17.2 mm
65% Thread Drill Size16.9 mm
75% Thread Drill Size16.5 mm
Class Of FitClass 2B
Drill Bit Size21/32"
Extended NeckYes
Measurement SystemFractional Inch
Primary Material ApplicationStainless Steel, Steel
Primary Material Application Iso CodeM, P
Secondary Material ApplicationCast Iron, Stainless Steel, Steel
Secondary Material Application Iso CodeK, M, P
Shank Length2 11/16"
Shank Type - MachiningStraight
Spiral DirectionNeutral
Square Size0.4420"
StandardsDIN/ANSI
Tap FinishBlack Oxide
Tap Length StandardDIN
Tap MaterialHSS E
Tap Shank StandardANSI
Tap Thread Size3/4"-10
Thread Limit / Class Of Fit2B
Thread StandardUNC
Threads Per Inch10

Shipping Info:

Ship weight (kg) 0.2084
Ship height (cm)2.54
Ship length (cm)13
Ship width (cm)2.54
Country of OriginUS

Product Variants

ProductModelThread LengthOverall LengthNumber Of FlutesThread SizeTap ChamferShank Dia.Thread TypeTap TypePrice
CLEVELAND C86103 4-40 Machine Tap, Plug, 3 Flutes, Cobalt, TiAlN Tap Finish | CD2FDJ 45EM60 C8610325/64"2.203"3-Plug0.141"CoarseSpiral Point€40.63
CLEVELAND C86123 1/2 Inch -20 Machine Tap, Plug, 3 Flutes, Cobalt, TiAlN Tap Finish | CD2FDK 45EM80 C8612363/64"4.328"31/2"-20Plug0.367"FineSpiral Point€70.76

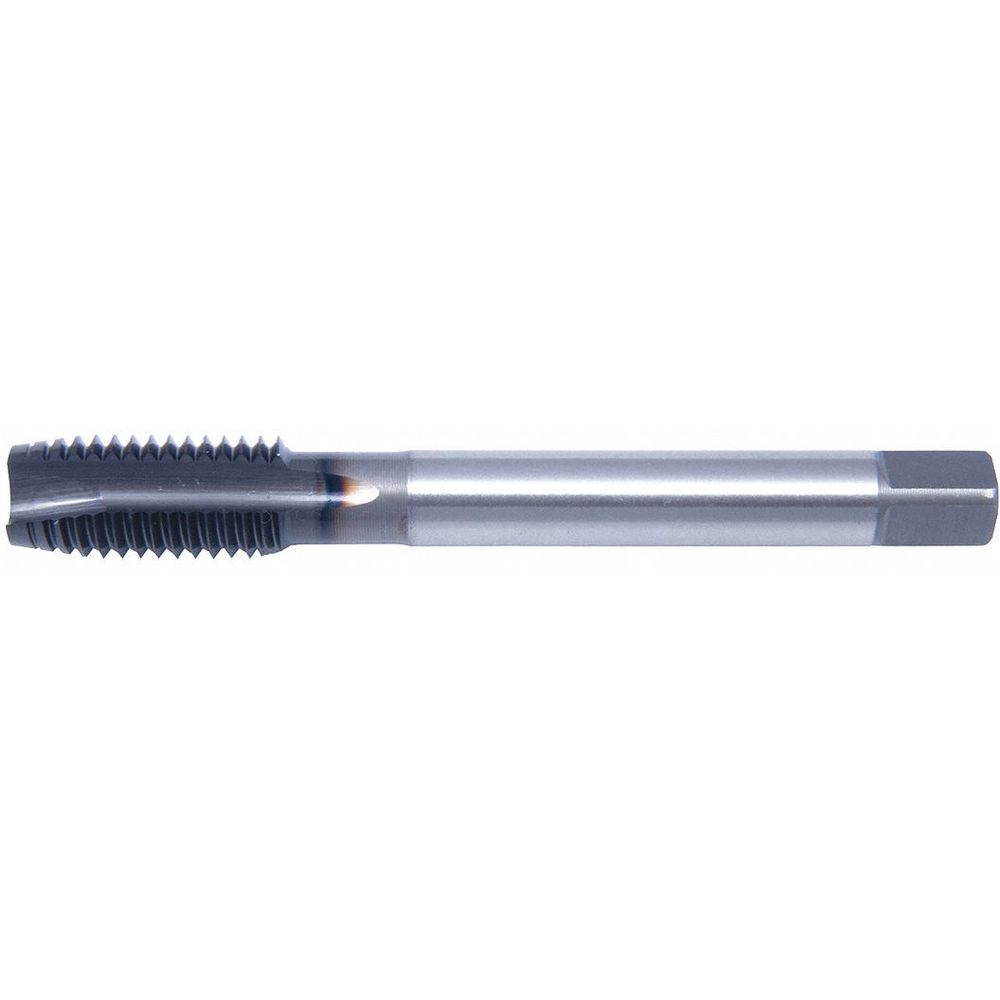

CLEVELAND C86206 6-32 Machine Tap, Plug, 3 Flutes, Cobalt, Steam Oxide Tap Finish | CD2FDL 45EN15 C862067/16"2.203"3-Plug0.141"CoarseSpiral Point€27.03
CLEVELAND C86216 5/16 Inch -18 Machine Tap, Plug, 3 Flutes, Cobalt, Steam Oxide Tap Finish | CD2FDM 45EN25 C8621645/64"3.547"35/16"-18Plug0.318"CoarseSpiral Point€31.44
CLEVELAND C89214 1/4 Inch -20 Machine Tap, Semi-Bottoming, 3 Flutes, Cobalt, TiAlN Tap Finish | CD2FDN 45EN74 C8921443/64"3.141"31/4"-20Semi Bottom0.255"CoarseSpiral Flute€50.47
CLEVELAND C89215 1/4 Inch -28 Machine Tap, Semi-Bottoming, 3 Flutes, Cobalt, TiAlN Tap Finish | CD2FDP 45EN75 C8921543/64"3.141"31/4"-28Semi Bottom0.255"FineSpiral Flute€50.47
CLEVELAND C89315 1/4 Inch -28 Machine Tap, Semi-Bottoming, 3 Flutes, Cobalt | CD2FDQ 45EP27 C8931543/64"3.141"31/4"-28Semi Bottom0.255"FineSpiral Flute€43.80
