ASHCROFT A2XBF0442C21000#G Explosion-proof Transducer 0 To 1000 Psi | AE3GHG 5DDL9

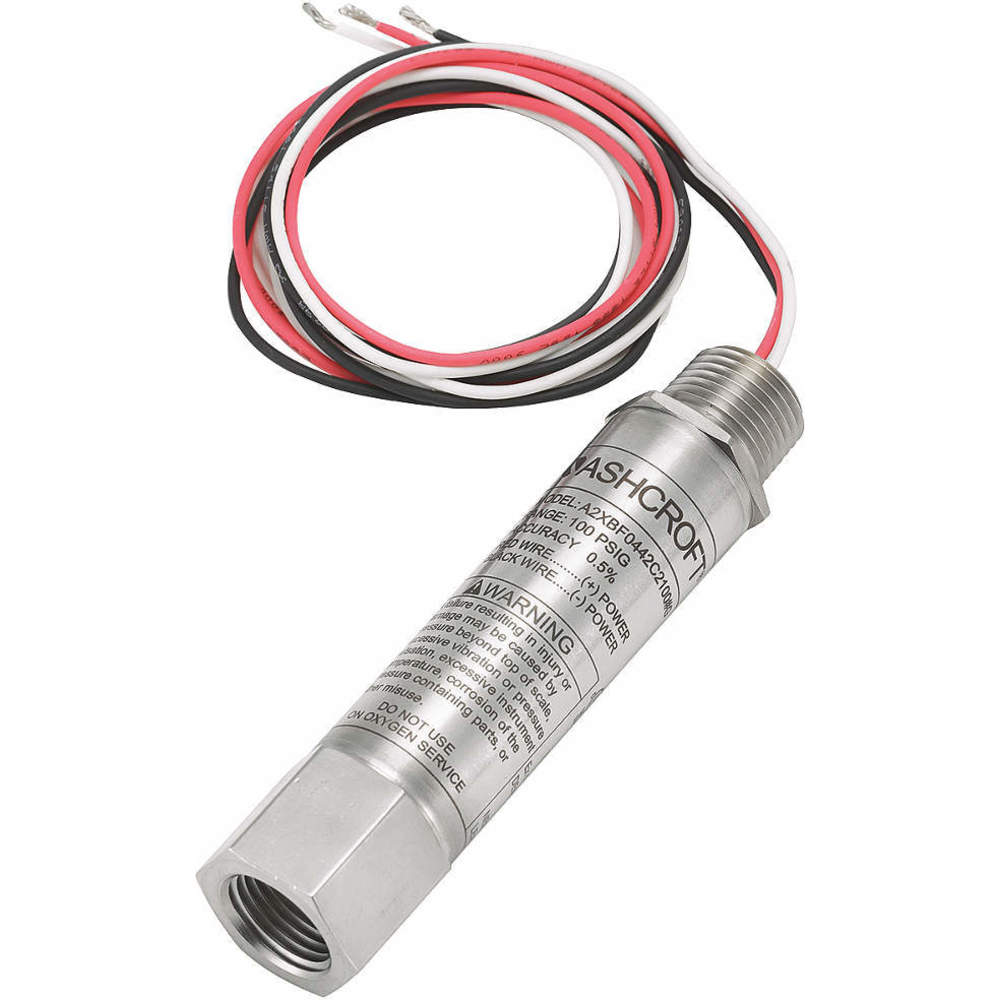

ASHCROFT A2XBF0442C21000#G Explosion-proof Transducer 0 To 1000 Psi

Item: AE3GHG Model: A2XBF0442C21000#GCross Ref: 5DDL9
In Stock

Get it by Friday, Jun 13

Flat Shipping at €24.99 + VAT €24.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.

€833.73 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemXP Pressure Transducer
Accuracy-0.3% to +0.3%
Cable Length36"
Compatible WithAny Process Compatible With 316 Stainless Steel
Housing MaterialStainless Steel
Loop ResistanceDependent On Loop Supply Voltage
MaterialStainless Steel
Max. Pressure2000 psi
Nema RatingNEMA 7 AND 9
Operating Temp.-40°F to +257°F
Power Required12-30V DC
Range0 psi to 1000 psi
Burst Pressure1.5x Range
Electrical ConnectionCable & Wire Leads, 1/2" FNPT Conduit Connection Entry
Electrical ConnectionsCable & Wire Leads
Enclosure RatingIP65, NEMA 4X, NEMA 7, NEMA 9
Explosion/fire ProofYes
FeaturesAshcroft’s Proven Thin Film Technology
Fitting MaterialStainless Steel
Ip RatingIP65
Manufacturers Warranty Length1 yr.
Maximum Operating Temperature257°F
Maximum Pressure1000 psi
Minimum Operating Temperature-40°F
Minimum Pressure0 psi
Number Of Wires2
Output4-20 mA
Overall Height4.78"
Overall Length1.06"
Overall Width1.06"
Overpressure1.2 x Range
Pressure Range0 psi to 1000 psi
Pressure Unitspsi
Process Connection1/2" NPT Female
Process Connection GenderFemale
Process Connection Size1/2"
Process Connection TypeNPT
Product TypeExplosion-Proof-Rated Transmitter
Response Time2 ms
Safety RatingClass I, II And III Div. 1 And 2 Groups A, B, C, D, F And G
SeriesA2X Series
StandardsATEX, CE, CSA, CULUS LISTED, FM, ROHS, UL LISTED
Storage Temperature Range–40°F to 257°F (–40°C to 125°C)
Thermal Error+/-2% (-4° to 185°F)
Wiring Entry1/2" FNPT Conduit Connection

Shipping Info:

Ship weight (kg) 0.288
Ship height (cm)12.14
Ship length (cm)2.69
Ship width (cm)2.69
HS code9026204000
Country of OriginUS

Product Variants

ProductModelPower RequiredAccuracyNumber Of WiresHousing MaterialOperating Temp.Nema RatingOutputPrice
ASHCROFT A2XBF0442C25#G Explosion-proof Transducer 0 To 5 Psi | AE3GGX 5DDL0 A2XBF0442C25#G12-30V DC-0.3% to +0.3%-Stainless Steel-40°F to +257°FNEMA 7 AND 9-€772.93
ASHCROFT A2XBF0442C215#G&VAC Transducer 30 Inch Hg Vac To 15 Psi | AE3GGY 5DDL1 A2XBF0442C215#G&VAC12-30V DC-0.25% to +0.25%2Stainless Steel-40°F to +257°F--€772.93
ASHCROFT A2XBF0442C215#G Explosion-proof Transducer 0 To 15 Psi | AE3GGZ 5DDL2 A2XBF0442C215#G12-30V DC-0.3% to +0.3%-Stainless Steel-40°F to +257°FNEMA 7 AND 9-€772.93
ASHCROFT A2XBF0442C230#G Explosion-proof Transducer 0 To 30 Psi | AE3GHA 5DDL3 A2XBF0442C230#G12-30V DC-0.3% to +0.3%-Stainless Steel-40°F to +257°FNEMA 7 AND 9-€772.93
ASHCROFT A2XBF0442C260#G Explosion-proof Transducer 0 To 60 Psi | AE3GHB 5DDL4 A2XBF0442C260#G12-30V DC-0.3% to +0.3%-Stainless Steel-40°F to +257°FNEMA 7 AND 9-€772.93
ASHCROFT A2XBF0442C2100#G Explosion-proof Transducer 0 To 100 Psi | AE3GHC 5DDL5 A2XBF0442C2100#G12-30V DC-0.3% to +0.3%-Stainless Steel-40°F to +257°FNEMA 7 AND 9-€772.93
ASHCROFT A2XBF0442C2200#G Explosion-proof Transducer 0 To 200 Psi | AE3GHD 5DDL6 A2XBF0442C2200#G12-30V DC-0.25% to +0.25%2Stainless Steel-40°F to +257°F--€772.93
