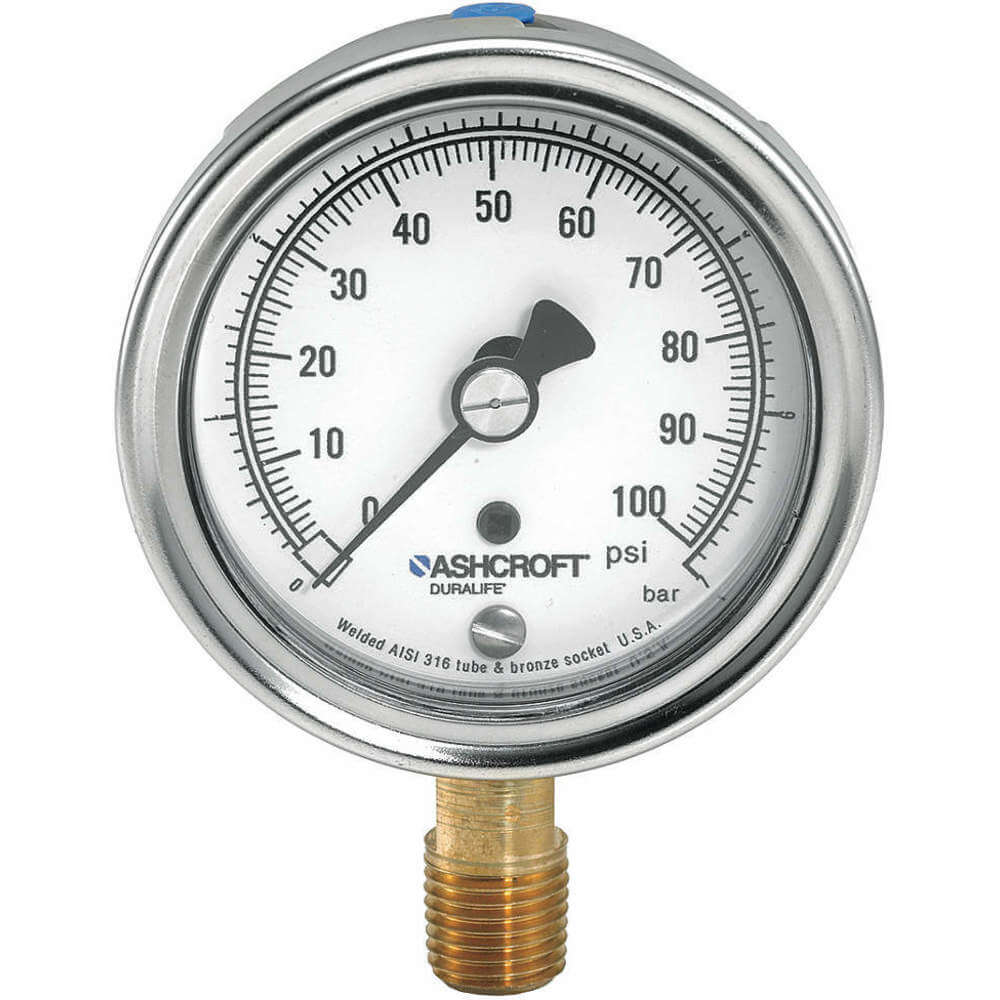

| Item | Pressure Gauge |
| Accuracy | -1% to +1% |
| Accuracy Scale | Full Scale |
| Basic Gauge Case Material | Stainless Steel |
| Basic Gauge Sensor Material | Bronze |
| Basic Gauge Socket Material | Brass |
| Bezel Mounting Type | Bayonet |
| Blowout Safety Back | No |
| Burst Pressure | 1200 psi |
| Calibration Certificate | No |
| Calibration Certificate Included | No |
| Case Color | Metallic , Stainless Steel |
| Case Depth | 1 1/4" |
| Case Dia. | 3.89" |
| Case Material | Stainless Steel |
| Cleaned For Oxygen Service | No |
| Color | Silver |
| Connection Location | Bottom , Lower |
| Connection Size | 1/4" |
| Dial Face Material | Aluminum |
| Dial Size | 3 1/2" |
| Field Fillable | No |
| Freeze Resistant Movement | No |
| Gauge Connection Location | Bottom |
| Gauge Connection Size | 1/4" |
| Gauge Nominal Dial Size | 3 1/2" |
| Gauge Panel Mountable | No |
| Gauge Primary Range No.ed Graduations | 1 |
| Gauge Primary Range Units | Psi |
| Gauge Socket Material | Brass |
| Gauge Type | Powerflex Movement |
| Graduations | 1 psi |
| Hazardous Location Rating | Not Rated |
| Includes Vent Plug | Yes |
| Lens Material | Plastic , Polycarbonate |
| Liquid Filled | No |
| Liquid-filled Case | No |
| Mounting Hardware Included | No |
| Nominal Dial Size | 3 1/2" |
| Non-sparking | No |
| Operating Temp. Range | -40°F to +200°F |
| Panel-mountable | No |
| Pointer Material | Aluminum |
| Pressure And Vacuum Gauge Type | Pressure Gauge |
| Pressure Range Type | Pressure |
| Primary Application | General Purpose |
| Primary Pressure Scale Color | Black |
| Primary Scale Numeric Increments | 1 |
| Primary Scale Units | Psi |
| Process Connection Gender | Male |
| Process Connection Location | Bottom |
| Process Connection Size | 1/4" |
| Range | 0 psi to 15 psi |
| Removable Bezel | Yes |
| Scale Type | Single |
| Sensor Material | Bronze |
| Sensor Type | Bourdon Tube |
| Smallest Graduation | 0.5 psi |
| Socket Material | Aluminum Bronze , Brass |
| Wetted Materials | Brass, Bronze |
| Accuracy Grade | ASME B40.100 Grade 1A |
| Ambient Operating Temperature Range | -40°F to +200°F (-40°C to +93°C) |
| Application | Autoclave, Boilers, Equipment Skids, Hydraulics, OEM Applications, Pneumatics, Pumps, Refrigeration, Severe Ambient Conditions, Water Pressure Testing |
| Bezel Material | 304 Stainless Steel |
| Case Construction | Welded Joint |
| Case Diameter | 3.89" |
| Compatible Process Media | Deionized Water |
| Dial Color | White |
| Dial Face Color | White |
| Dry Dampening Feature | None |
| Gauge Accuracy Grade | Grade 1A Industrial |
| Gauge Case Liquid | None |
| Gauge Case Material | 304 Stainless Steel |
| Gauge Wetted Parts | Stainless Steel/Bronze |
| Includes Calibration Certificate | No |
| Includes Mounting Hardware | No |
| Ip/nema Rating | IP54 (Plug Vented), IP65 (Plug Closed), NEMA 4 (Plug Closed) |
| Lens Material - Gauge | Plastic |
| Manufacturer Warranty Length | 5 yrs. |
| Mounting Type | Stem Mount |
| Movement Material | 304 Stainless Steel |
| Pointer Color | Black |
| Pressure Gauge Type | Industrial Pressure Gauge |
| Pressure Range | 0 psi to 15 psi |
| Primary Pressure Range | 0 to 15 |
| Primary Scale Minor Graduations | 0.5 |
| Process Connection | 1/4" NPT Male |
| Process Connection Type | NPT |
| Process Temperature Range | 20°F to 200°F |
| Series | 1009 Series |
| Standards | ASME, CRN, ROHS |
| Vibration Resistance | None |
| Wetted Parts Material | Aluminum Bronze, 316L Stainless Steel |
