ARO PD15A-ASS-STT Diaphragm Pump Air Operated 1-1/2 Inch | AE8AHZ 6CCN9

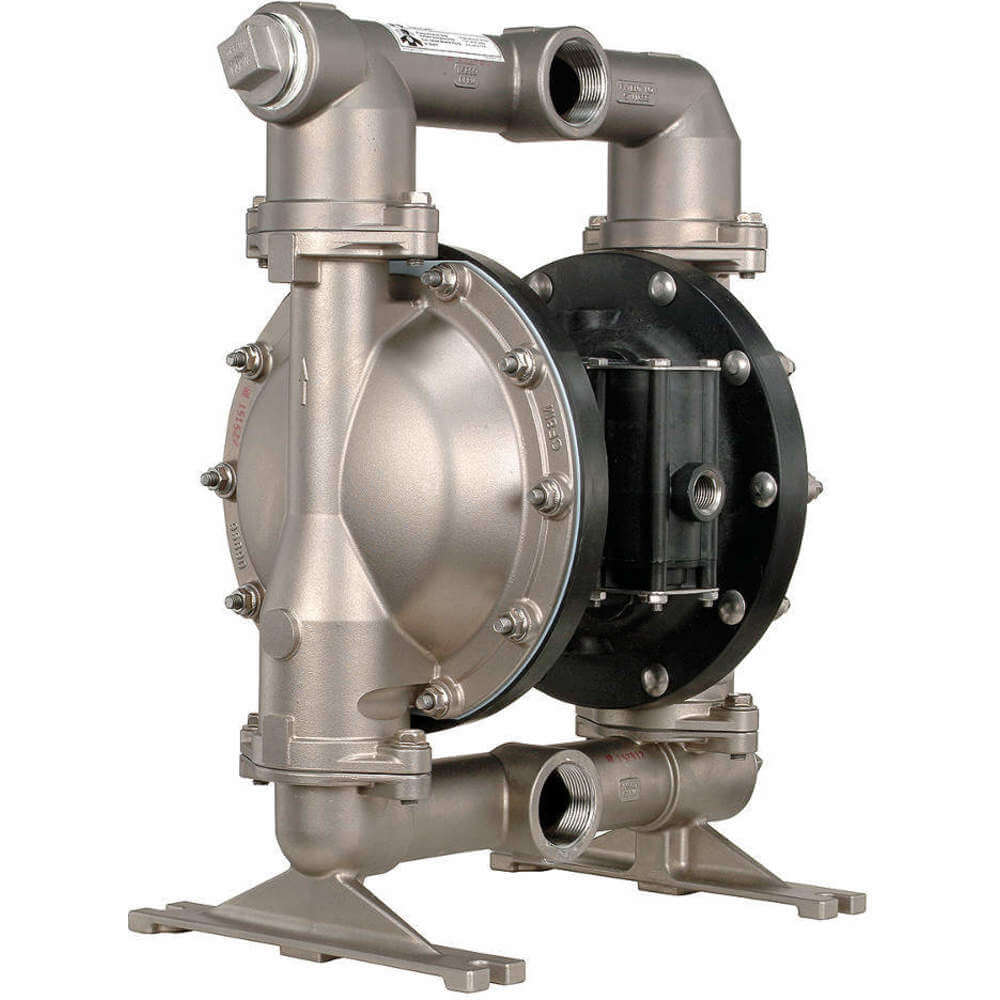

ARO PD15A-ASS-STT Diaphragm Pump Air Operated 1-1/2 Inch

Item: AE8AHZ Model: PD15A-ASS-STTCross Ref: 6CCN9
See variants (34)
In Stock
Check Availability

Get it by Monday, Jun 16

€9,940.25 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemDouble Diaphragm Pump
Air Consumption100 SCFM
Ball MaterialPTFE
Center Section MaterialAluminum
Check Seat MaterialStainless Steel
Compatible ChemicalsAlcohol, Ammonium Hydroxide, Antifreeze, Calcium Carbonate, Diesel Exhaust Fluid, Oil-Based Paint, Oils, Potassium Hydroxide 50%, Sodium Hydroxide 20%, Water
Connection Size1 1/2"
Connection TypeNPTF
Diaphragm MaterialPTFE
Display Qty1
Flow Rate @ 100 Psi125 GPM
Flow Rate @ 120 Psi130 GPM
Flow Rate @ 40 Psi75 GPM
Flow Rate @ 50 Psi91.5 GPM
Flow Rate @ 60 Psi101.4 GPM
Flow Rate @ 70 Psi108 GPM
Flow Rate @ 80 Psi116.5 GPM
Flow Rate @ 90 Psi121.6 GPM
For Use With Potable SystemsYes
GradeGrade 316
Housing MaterialStainless Steel
Inlet Size1/2"
Manifold Connection TypeSingle Port
Max. Flow Rate130 GPM
Max. Head289 ft.
Max. Media Temp.225°F
Max. Operating Pressure120 psi
Max. Solid Dia.1/4"
Max. Viscosity40000 cPS
Media Discharge LocationCenter, Side
Media Intake LocationCenter, Side
Min. Media Temp.40°F
Mounting Hardware MaterialSteel
Npshr24.5 ft.
Operation TypeAir Operated
Overall Height19 3/5"
Overall Length14.9"
Overall Width14"
Pump Assembly TypeBolt
Rated Air Pressure120 psi
Self PrimingYes
Self Priming Dry14 ft.
SeriesEXP Series
Valve MaterialPTFE
Valve TypeBall
Warranty5 yrs.
Air Inlet1/2" NPT
Chemical CompatibilityAlcohol, Ammonium Hydroxide, Antifreeze, Calcium Carbonate, Diesel Exhaust Fluid, Oil-Based Paint, Oils, Potassium Hydroxide 50%, Sodium Hydroxide 20%, Water
Fluid Discharge Connection1 1/2" NPTF
Fluid Intake Connection1 1/2" NPTF
Manifold ConnectionSingle Port
Manufacturers Warranty Length5 yrs.
Max. Discharge Pressure120 psi
Max. Feet Of Head289 ft.
Max. Media Temperature225°F
Min. Media Temperature40°F
Nameplate VoltageN
Power SourceAir
PrimingSelf Priming
Series FamilyEXP
StandardsATEX CERTIFIED, CE CERTIFIED, NEC

Shipping Info:

Ship weight (kg) 39.15
Ship height (cm)49.78
Ship length (cm)37.85
Ship width (cm)35.56
HS code8413500050
Country of OriginUS

Product Details:

ARO PD15A-ASS-STT double diaphragm pump transfers corrosive chemicals, viscous liquids, abrasive slurries and wastewater. It is ideal for chemical processing, wastewater treatment and mining.

Features:

  • This double diaphragm pump features 316 stainless steel construction for durability and structural rigidity.
  • It comes with a diaphragm made of PTFE for chemical resistance.
  • This double diaphragm pump offers a maximum flow rate of 130 gallons per minute.
  • It complies with ATEX, CE and NEC standards.

Frequently Asked Questions:

Q. How can pulsation be reduced?

A. There is usually some pulsation of discharge flow in air-operated diaphragm pumps which can cause excess movement. This can be reduced by using pulsation dampeners with a membrane with a cushion of compressible gas / air that flexes to absorb the pulse, allowing a laminar flow downstream of the dampener.

Q. Is this double diaphragm pump contamination-resistant?

A. Yes, this ARO diaphragm pump has a bolted, leak-free design to resist cross-contamination and ensure user safety.

Product Variants

ProductModelMax. Flow RateDiaphragm MaterialHousing MaterialValve MaterialCheck Seat MaterialMax. Solid Dia.Max. Media Temp.Valve TypePrice
ARO PF20A-AAS-SAA-B Diaphragm Pump Air Operated Aluminium | AD9FRC 4RN43 PF20A-AAS-SAA-B178 GPMSantopreneAluminumSantopreneStainless Steel2"225°FFlap€5,438.10
VERSA-MATIC E5AP2R229C Diaphragm Pump 12 Gpm 125 Psi | AF6XBJ 20LR16 E5AP2R229C12 GPMBuna NAluminumBuna NAluminum1/16"180°FBall€1,671.01
VERSA-MATIC E5AP6X669C Diaphragm Pump 12 Gpm 125 Psi | AF6XBK 20LR17 E5AP6X669C12 GPMSantopreneAluminumSantopreneAluminum1/16"300°FBall€1,673.54
VERSA-MATIC E5AP5T559C Diaphragm Pump 12 Gpm 125 Psi | AF6XBL 20LR18 E5AP5T559C12 GPMPTFEAluminumPTFEAluminum1/16"220°FBall€1,836.74
VERSA-MATIC E5SP2R229C Diaphragm Pump 12 Gpm 125 Psi | AF6XBM 20LR19 E5SP2R229C12 GPMBuna NStainless SteelBuna NStainless Steel1/16"180°FBall€3,614.64
VERSA-MATIC E5SP6X669C Diaphragm Pump 12 Gpm 125 Psi | AF6XBN 20LR20 E5SP6X669C12 GPMSantopreneStainless SteelSantopreneSantoprene1/16"300°FBall€3,329.37
VERSA-MATIC E5SP5T559C Diaphragm Pump 12 Gpm 125 Psi | AF6XBP 20LR21 E5SP5T559C12 GPMPTFEStainless SteelPTFEStainless Steel1/16"220°FBall€3,957.60
