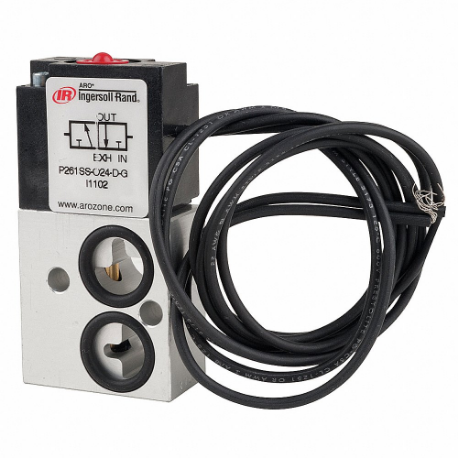

ARO P261SS-024-D Solenoid Air Control Valve, 24V Dc, 1/8 Inch Size Pipe Size, 0 To 120 Psi | CN8VZH

ARO P261SS-024-D Solenoid Air Control Valve, 24V Dc, 1/8 Inch Size Pipe Size, 0 To 120 Psi

Item: CN8VZH Model: P261SS-024-DCross Ref: 6JJ56
In Stock

Get it by Tuesday, Jun 17

Flat Shipping at €24.99 + VAT €24.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.

€177.40 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemSolenoid Air Control Valve
Actuator/returnSolenoid/Spring
Ambient Temp. Range+32°F to +125°F
Body StyleStackable
Coefficient Of Volume0.144
Electrical ConnectionLead Wire
Max. Flow6.9 CFM
Nema ClassificationNEMA 4
Operational Pressure Range0 psi to 120 psi
Overall Height2 3/4"
Overall Length1 1/4"
Overall Width1"
OverrideNon Locking Manual
Pipe Size1/8"
Power Consumption4.5 W
Shifting TechnologyDirect
Voltage24V DC
Actuator TypeSingle Solenoid
Body FeaturesStackable
Body MaterialAluminum
Coefficient Of Volume (cv)0.144
Electrical Connection TypeDIN Solenoid Connector
Exhaust Port Connection GenderFemale
Exhaust Port Connection Size1/4"
Exhaust Port Connection TypeNPT
Fail PositionClosed
Flow Rate - Maximum6.9 CFM
For MediaAir, Inert Gas
Includes Mounting HardwareMounting Hardware Not Included
Includes Solenoid CoilSolenoid Coil Included
Inlet Port Connection GenderFemale
Inlet Port Connection Size1/8"
Inlet Port Connection TypeNPT
LubricationPre-Lubricated
Nema Rating4
Number Of Positions2
Number Of Ways3
Operating Pressure - Maximum125 psi
Operating Pressure - Minimum0 psi
Operating Temperature - Maximum125°F
Operating Temperature - Minimum32°F
Pilot Port Connection GenderFemale
Pilot Port Connection Size1/8
Pilot Port Connection TypeNPT
Pilot TypeInternal Pilot
Poppet MaterialStainless Steel
Product TypeSolenoid Air Control Valve
Response Time0.012 ms
Return ActionSpring Return
Return Time20 ms
Seal MaterialAcetal
SeriesPremair Series
Vacuum RatingNot Vacuum Operable
Valve ActionNormally Open/Normally Closed
Valve TypePoppet

Shipping Info:

Ship weight (kg) 0.135
Ship height (cm)6.99
Ship length (cm)3.18
Ship width (cm)2.54
Country of OriginUS

Product Variants

ProductModelVoltageBody StyleOverall HeightCoefficient Of VolumeOverall WidthOverall LengthPipe SizeNema ClassificationPrice
ARO P211SC-120-A Solenoid Air Control Valve 1/8 Inch 120vac | AE9FZF 6JJ42 P211SC-120-A120V ACBody Ported2 3/4"0.1441"1 1/4"1/8"NEMA 4€264.36
ARO P211SS-012-D Solenoid Air Control Valve 1/8 Inch 12vdc | AE9FZG 6JJ43 P211SS-012-D12V DCBody Ported2 3/4"0.1441"1 1/4"1/8"NEMA 4€204.81
ARO P211SS-120-A Solenoid Air Control Valve 1/8 Inch 120vac | AE9FZH 6JJ45 P211SS-120-A120V ACBody Ported2 3/4"0.1441"1 1/4"1/8"NEMA 4€215.42
ARO P251SS-012-D Solenoid Air Control Valve 1/8 Inch 12vdc | AE9FZJ 6JJ52 P251SS-012-D12V DCBody Ported2 1/2"0.1441"1 1/4"1/8"NEMA 4€132.36
ARO P251SS-120-A Solenoid Air Control Valve 1/8 Inch 120VAC | AE9FZK 6JJ54 P251SS-120-A120V ACBody Ported2 1/2"0.1441"1 1/4"1/8"NEMA 4€175.37
ARO P261SS-120-A Solenoid Air Control Valve, 120V Ac, 1/8 Inch Size Pipe Size, 0 To 120 Psi | CN8VYG P261SS-120-A120V ACStackable2 3/4"0.1441"1 1/4"1/8"NEMA 4€192.65
ARO P221SC-120-A Solenoid Air Control Valve, 120V Ac, 1/8 Inch Size Pipe Size, 0 To 120 Psi | CN8VYH P221SC-120-A120V ACStackable2 3/4"0.1441"1 1/4"1/8"NEMA 4€295.93
