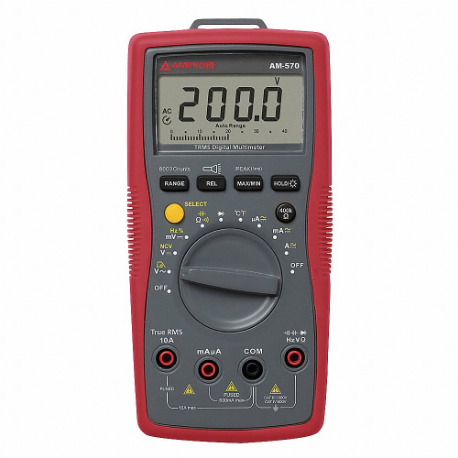

| Item | Digital Multimeter |
| Ac Current Measurement Resolution | 600 µA |
| Ac Response | TRMS |
| Ac Voltage Measurement Resolution | 6V AC |
| Audible Continuity | Yes |
| Auto Power Off | Yes |
| Auto Ranging | Yes |
| Bar Graph Included | Yes |
| Basic Ac Voltage Accuracy | ±1% RDG + 3 LSD |
| Basic Dc Accuracy | ± 1% Rdg + 2 LSD |
| Basic Dc Voltage Accuracy | ±0.5% + 2 Digits |
| Battery Access | Yes |
| Battery Included | Yes |
| Battery Size | 9V |
| Battery Voltage | 9V |
| Bluetooth Compatibility | Yes |
| Calibration Certificate | No |
| Capacitance Measurement Accuracy | -3 % To +3 % |
| Capacitance Measurement Resolution | 60 nF |
| Computer Interface Connection Type | None |
| Current Leakage Testing | No |
| Data Logging | Yes |
| Data Storage | Yes |
| Dc Current Measurement Resolution | 600 µA |
| Dc Voltage Measurement Resolution | 600V |
| Depth | 7 1/5" |
| Diode Test | Yes |
| Dustproof | No |
| Duty Cycle | Yes |
| Frequency Measurement Accuracy | ±(0.1% RDG + 3 LSD) |
| Frequency Measurement Resolution | 60 Hz |
| Fuse Access | Yes |
| Includes | (1) 9V (6F22) Battery Installed, (2) Type K Probe, Carrying Case, Temperature Adapter, Test Leads, Velcro Strap |
| Instrument Counts | 6000 |
| Instrument Safety Rating | CAT III 1000V, CAT IV 600V |
| Intrinsically Safe | No |
| Max. Ac Amps | 10A |
| Max. Dc Amps | 10A |
| Max. Dc Voltage Measurement | 6V |
| Max. Ohms | 60 M ohms |
| Max. Operating Temp. | 104°F |
| Max. Resistance Measurement | 60 M ohms |
| Max. Storage Temp. | 122°F |
| Maximum Ac Voltage Measurement | 1000V |
| Maximum Capacitance Measurement | 60 mF |
| Maximum Dc Voltage Measurement | 1000V |
| Maximum Frequency Measurement | 60 MHz |
| Maximum Temperature Measurement | 1832°F |
| Min. Operating Temp. | 32°F |
| Min. Storage Temp. | 14°F |
| Min./max. Memory | Yes |
| Minimum Ac Amps Measurement | 600 µA |
| Minimum Ac Voltage Measurement | 6V |
| Minimum Capacitance Measurement | 60 nF |
| Minimum Dc Current Measurement | 600 µA |
| Minimum Frequency Measurement | 60 Hz |
| Minimum Resistance Measurement | 600 ohms |
| Minimum Temperature Measurement | -40°F |
| Multimeter Style | Full Size |
| Multiple On-screen Displays | Yes |
| Overall Height | 1 4/5" |
| Overall Width | 3 1/2" |
| Peak Hold | Yes |
| Removable Screen | No |
| Resistance Measurement Accuracy | -1% to +1% |
| Resistance Measurement Resolution | 600 ohms |
| Temperature Measurement Accuracy | Not Applicable |
| Thermal Imaging | No |
| Waterproof | No |
| Ac Response Calculation | TRMS |
| Basic Ac Current Accuracy | ±(1.2% Rdg +5 LSD) |
| Basic Dc Current Accuracy | +/-(1% rdg + 2 LSD) |
| Batteries Included | Yes |
| Bluetooth Compatible | Yes |
| Calibration Certificate Included | No |
| Data Hold | Yes |
| Display Type | Backlit LCD |
| Ip Rating | IP56 |
| Maximum Ac Current Measurement | 10A |
| Maximum Dc Current Measurement | 10A |
| Maximum Operating Temperature | 104°F |
| Maximum Resistance Measurement | 60 m ohms |
| Maximum Storage Temperature | 122°F |
| Minimum Operating Temperature | 32°F |
| Minimum Storage Temperature | 14°F |
| Minimum/maximum Memory | Yes |
| Parameters Measured | AC Voltage, DC Voltage, AC Current, DC Current, Capacitance, Frequency, Resistance, Temperature (K) |
| Weight | 0.78 lbs. |
