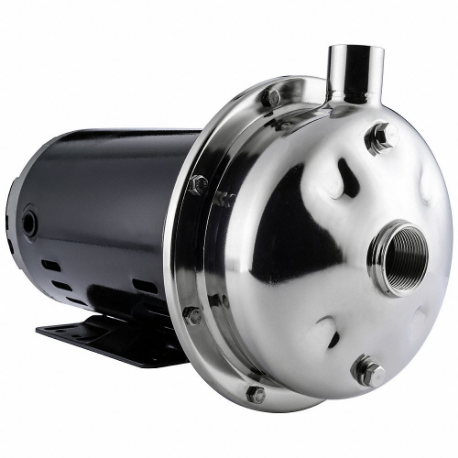

| Item | Centrifugal Pump |
| Best Efficiency Flow | 57 GPM |
| Best Efficiency Head | 112 ft. |
| Compatible Discharge Pipe Size | 6 11/16" |
| Compatible Intake Pipe Size | 1 1/4" |
| Connection Type | NPT |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Electrical Connection Type | Hardwired |
| Flow Rate @ 1 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 10 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 100 Ft Of Head (maximum) | 63 GPM |
| Flow Rate @ 120 Ft Of Head (maximum) | 52 GPM |
| Flow Rate @ 140 Ft Of Head (maximum) | 38 GPM |
| Flow Rate @ 15 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 160 Ft Of Head (maximum) | 20 GPM |
| Flow Rate @ 180 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 20 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 200 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 220 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 240 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 260 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 280 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 30 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 300 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 40 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 5 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 50 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 60 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 70 Ft Of Head (maximum) | Not Applicable |
| Flow Rate @ 80 Ft Of Head (maximum) | 60 GPM |
| Flow Rate @ 90 Ft Of Head (maximum) | Not Applicable |
| For Use With Potable Systems | Yes |
| Frequency | 60 Hz |
| Height | 10.1" |
| Housing Material | Stainless Steel |
| Hp | 3 hp |
| Hp - Pumps | 5 hp |
| Impeller Design | Closed |
| Impeller Material | Stainless Steel |
| Impeller Type | Enclosed |
| Inlet Pressure | 10 psi |
| Installation Position | Horizontal |
| Length | 15" |
| Max. Case Pressure | 125 psi |
| Max. Feet Of Head | 177 ft. |
| Max. Flow Rate | 64 GPM |
| Max. Flow Rate @ 100 Ft. | 63 GPM |
| Max. Flow Rate @ 120 Ft. | 52 GPM |
| Max. Flow Rate @ 140 Ft. | 38 GPM |
| Max. Flow Rate @ 160 Ft. | 20 GPM |
| Max. Flow Rate @ 80 Ft. | 60 GPM |
| Max. Head | 177 ft. |
| Max. Solid Dia. | 2/25" |
| Max. Suction Lift | 24 ft. |
| Motor Enclosure - Pumps | Open Dripproof |
| Motor Enclosure Design | Open Dripproof |
| Motor Frame Designation | 56J |
| Mounting Orientation | Horizontal |
| Npshr | 10 psi |
| Outlet Type | NPT |
| Overall Height | 10.1" |
| Overall Length | 15" |
| Overall Width | 9 1/5" |
| Overload Protection | No |
| Overload Thermal Protection | No , None |
| Phase | 3 |
| Priming | Manual |
| Pump Housing Material | Stainless Steel |
| Rpm | 3500 RPM |
| Seal Material | Carbon, Silicon Carbide, Viton |
| Self Priming | Manual |
| Series | 7SP Series |
| Solid Diameter (maximum) | 2/25" |
| Specific Gravity | 15 |
| Specific Gravity (maximum) | 15 |
| Thermal Protection | No |
| Voltage | 208-230/460V AC |
| Wetted Material | Stainless Steel |
| Wetted Materials | Stainless Steel |
| Width | 9 1/5" |
| Maximum Flow Rate @ 80 Feet Of Head | 60 GPM |
| Motor Enclosure | Open Dripproof |
| Standards | CSA CERTIFIED, UL LISTED |
| Thermal Overload Protection | No |
