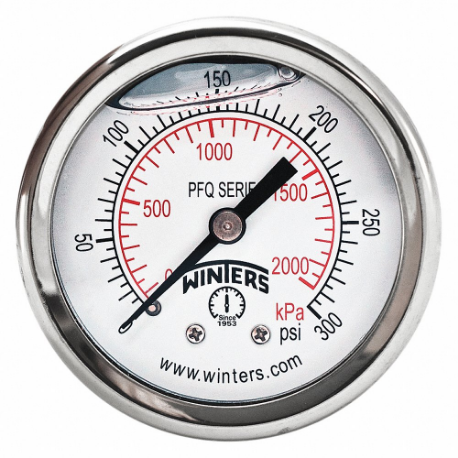

| Item | Pressure Gauge |
| Accuracy | -2.5% to +2.5% |
| Accuracy Scale | Full Scale |
| Ambient Temp. Range | -40°F to +200°F |
| Application | Compressors, Hydraulics, Machinery, Motors, Pneumatics, Pumps |
| Bezel Gasket Material | Silicone |
| Bezel Material | Stainless Steel |
| Bezel Material Grade | Grade 304 |
| Bezel Mounting Type | Crimped |
| Blowout Safety Back | No |
| Calibration Certificate Included | No |
| Case Color | Metallic |
| Case Construction | Welded Joint |
| Case Depth | 23/25" |
| Case Dia. | 2.035" |
| Case Grade | Grade 304 |
| Case Material | Stainless Steel |
| Cleaned For Oxygen Service | No |
| Compatible Process Media | Air, Water |
| Connection Location | Center Back |
| Dial Color | White |
| Dial Face Material | Aluminum |
| Features | Ring Terminal |
| Field Fillable | Yes |
| Flange Dia. | 2" |
| For Use With | Media Compatible With Bronze |
| Freeze Resistant Movement | No |
| Gauge Connection Location | Center Back |
| Gauge Connection Size | 1/4" |
| Gauge Nominal Dial Size | 2" |
| Gauge Primary Range Units | Psi |
| Gauge Socket Material | Brass |
| Gauge Special Options | Heavy Duty |
| Gauge Wetted Parts | Brass, Bronze |
| Hazardous Location Rating | Not Rated |
| Includes Vent Plug | Yes |
| Ip Rating, Nema Rating | IP65 |
| Lens Material | Polycarbonate |
| Liquid Filled | No |
| Liquid-filled Case | No |
| Mfr. Series | PFQ |
| Mounting Hardware Included | No |
| Mounting Type | Front Flange |
| Movement Material | Brass |
| Nominal Dial Size | 2" |
| Non-sparking | No |
| Panel-mountable | Yes |
| Pointer Color | Black |
| Pointer Material | Aluminum |
| Pressure Gauge Type | Industrial Pressure Gauge |
| Pressure Range | 0 psi to 300 psi |
| Pressure Range Type | Pressure |
| Primary Pressure Range | 0 psi to 300 psi |
| Primary Scale Units | Psi |
| Process Connection Gender | Male |
| Process Connection Location | Center Back |
| Process Connection Size | 1/4" |
| Process Connection Type | NPT |
| Process Temperature Range | -40°F to +200°F |
| Range | 0 psi to 300 psi |
| Removable Bezel | Yes |
| Scale Type | Dual |
| Secondary Pressure Range | 0 psi to 2100 psi |
| Secondary Scale Units | Kpa |
| Sensor Material | Phosphor Bronze |
| Sensor Type | Bourdon Tube |
| Socket Material | Brass |
| Vibration Resistance | Field Fillable |
| Wetted Materials | Phosphor Bronze |
| Ambient Operating Temperature Range | -40°F to +200°F (-40°C to +93°C) |
| Case Diameter | 2.035" |
| Dry Dampening Feature | None |
| Flange Diameter | 2" |
| Gauge Case Liquid | None |
| Gauge Case Material | 304 Stainless Steel |
| Gauge Mounting Type | Front Flange |
| Includes Calibration Certificate | No |
| Includes Mounting Hardware | No |
| Ip/nema Rating | NEMA IP65 |
| Lens Material - Gauge | Plastic |
| Manufacturer Warranty Length | 5 yrs. |
| Over-pressure Limit | 25% |
| Process Connection | 1/4" NPT Male |
| Series | PFQ Series |
| Standards | ASME, CRN |
| Wetted Parts Material | Phosphor Bronze |
