WEG 40018OT3G447/9T-W40 | BC3JJN

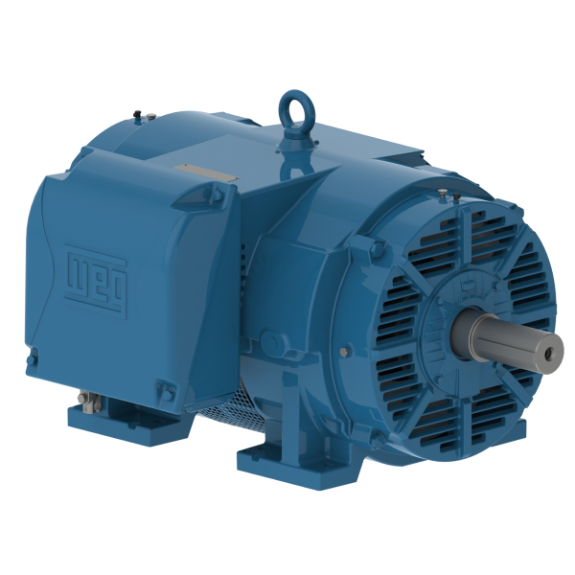

WEG 40018OT3G447/9T-W40 13621555 Electric Motor, 400Hp, 60Hz, 1800 Rpm

Item: BC3JJN Model: 40018OT3G447/9T-W40Cross Ref: 13621555
Limited Availability
€28,027.89 /unit
Request a Quote

Payment

Delivery

Product Specifications:

ItemGeneral Purpose Motor
Altitude1000 MASL
Ambient Temp.-20°C to +40°C
Balancing Method1/2" Key
Bearing CapYes
Bolt MaterialCarbon Steel
Break-down Torque229%
Cold Locked Rotor Time16 sec.
Connection Cables Quantity12
DesignB
Drip CoverWithout
Duty CycleContinuous
Efficiency At 1 %87%
Efficiency At 50 %78%
Efficiency At 75 %85%
Fan Cover MaterialWithout Fan Cover
Fan MaterialWithout Fan
Flange TypeWithout
Frame447/9T
Frame MaterialCast Iron
Frequency60 Hz
Grounding LugsDouble
Hot Locked Rotor Time9 sec.
Impregnation MethodConstant Resin Flow
L. R. Amps3074A
Locked Rotor Torque229%
Lrc6.8X(Code G)
Main Terminal Box Hole TypeNPT
Moment Of Inertia77.6 lbs.-sq. ft.
Motor Enclosure DesignOpen Dripproof
Motor Speed1780 RPM
MountingFoot Mounted
No Load Amps140A
No. Of Holes2
No. Of Poles4
Noise Level77 dBA
Output400 hp
Output Rating400 hp
Overload ProtectorWithout Overload Protector
PaintingRAL5009 203A (ISO 12944-C2)
Power Factor At 1 %95.8
Power Factor At 50 %95.8
Power Factor At 75 %95.8
Rated Current452A
Rated Torque1180 lbs.-ft.
Rated Voltage460V AC
Regreasing SystemAt Drive End And Non Drive End
RotationClockwise/Counter Clockwise
Service Factor1.15
Shaft Locking DeviceWithout
Shaft MaterialCarbon Steel
Shaft Material GradeGrade 4140
Slip1.11%
Starting MethodDirect On Line
Synchronous Speed1800 RPM
Temp. Rise80 K
Terminal BlockWithout
Terminal BoxLeft Position
Tropicalized PaintingWithout
Voltage460V AC
Winding Thermal ProtectionThermistor-2 Wires 1 Per Phase 155°C

Shipping Info:

Ship weight (kg) 1143.9
