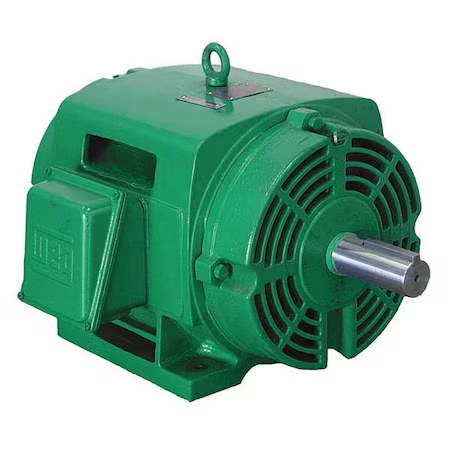

WEG 02536OT3H256T General Purpose Motor 3-phase Odp 25 Hp 3530 Rpm 256t | AD7YAT 4HCE9

WEG 02536OT3H256T General Purpose Motor, 3 Phase, Odp 25 Hp, 3530 Rpm, 256t

Item: AD7YAT Model: 02536OT3H256TCross Ref: 4HCE9
In Stock

Get it by Tuesday, Jun 17

€1,840.58 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemGeneral Purpose Motor
Ambient Temp.40°C
Base TypeRigid Base
Bearing TypeBall
Cc NumberCC029A
Duty CycleContinuous
Efficiency91.7%
Efficiency GroupPremium
Frame256T
Frame MaterialCast Iron
Frequency60 Hz
Full Load Amps23.8A
Green Certification Or Other RecognitionNEMA Premium Rated
Hp25 hp
Insulation ClassClass F
Motor ApplicationGeneral Application
Motor Enclosure DesignOpen Dripproof
Motor Mounting PositionHorizontal
Motor Shaft DesignKeyed
Motor Shaft RotationClockwise/Counter Clockwise
Motor TypeThree Phase
Mounting TypeRigid Base
Nameplate Rpm3530 RPM
Nema DesignB
No. Of Speeds1
Overall Length22 3/8"
Phase3
Rpm Range3001-3600 RPM
Service Factor1.15
Shaft Dia.1 5/8"
Shaft Length4"
Thermal ProtectionNone
Usable @ 200vNo
Usable @ 208vNo
Voltage575V AC
Warranty3 yrs.
Hz60 Hz
Ins. ClassClass F
Length Less Shaft18 3/8"
Manufacturers Warranty Length3 yrs.
Max. Ambient Temp.40°C
Motor BearingsBall
Motor Design3-Phase
Motor Frame MaterialCast Iron
Motor Mounting TypeRigid Base
Motor Service Factor1.15
Motor Thermal ProtectionNone
Nominal Efficiency91.7%
StandardsCE, CSA, UL
Weight242 lbs.

Shipping Info:

Ship weight (kg) 117.45
Ship height (cm)40.64
Ship length (cm)56.83
Ship width (cm)49.53
HS code8501528040
Country of OriginBR
