WEG 00156OT3E56-S | BB9CNC

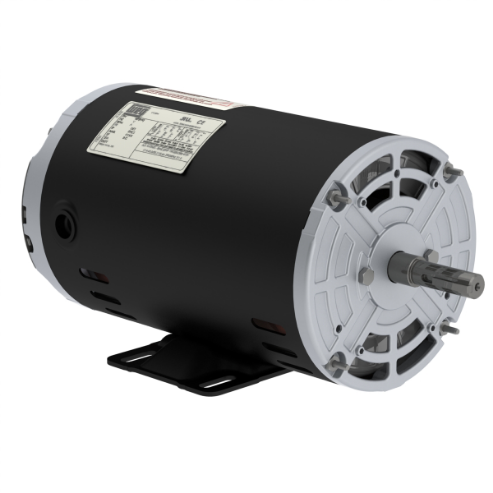

WEG 00156OT3E56-S 12812388 Electric Motor, 1.5Hp, 60Hz, 3600 Rpm

Item: BB9CNC Model: 00156OT3E56-SCross Ref: 12812388
In Stock

Get it by Friday, Jun 13

€396.13 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemGeneral Purpose Motor
Altitude1000 MASL
Ambient Temp.-20°C to +40°C
Balancing Method1/2" Key
Bearing CapNo
Bolt MaterialCarbon Steel
Break-down Torque330%
Cold Locked Rotor Time36 sec.
CompositionSteel
Connection Cables Quantity9
DesignA
Drip CoverWithout
Duty CycleContinuous
Efficiency At 1 %89%
Efficiency At 50 %73%
Efficiency At 75 %83%
Fan Cover MaterialWithout Fan Cover
Fan MaterialWithout Fan
Flange TypeWithout
Frame56
Frame MaterialRolled Steel
Frequency50/60 Hz
Grounding LugsSingle
Hot Locked Rotor Time20 sec.
Hp1 1/2 hp
Impregnation MethodDip And Bake Polyester
L. R. Amps31.8/15.9A
Locked Rotor Torque210%
Lrc8.6X(Code K)
Moment Of Inertia0.0835 lbs.-sq. ft.
Motor Enclosure DesignOpen Dripproof
Motor Speed3510 RPM
MountingFoot Mounted
No Load Amps1.62/0.809A
No. Of Poles2
Noise Level62 dBA
Output1 1/2 hp
Output Rating1 1/2 hp
Overload ProtectorWithout Overload Protector
PaintingOnly Primer
Phase3
Power Factor At 1 %84
Power Factor At 50 %81.5
Power Factor At 75 %84
Rated Current3.7/1.85A
Rated Torque2.24 lbs.-ft.
Rated Voltage230/460V AC
Resilient BaseWithout
RotationClockwise/Counter Clockwise
Service Factor1.15
Shaft MaterialCarbon Steel
Shaft Material GradeGrade 1040/45
Ships Factory DirectNo
Slip2.5%
Starting MethodDirect On Line
Synchronous Speed3600 RPM
Temp. Rise80 K
Terminal BoxWithout Terminal Box
Tropicalized PaintingWithout
Voltage230/460/190-220/380-415V AC

Shipping Info:

Ship weight (kg) 13.5
Ship height (cm)77.98
Ship length (cm)30.2
Ship width (cm)85.09
Country of OriginBR
