WATTS 912-HP 3/4 Dual Check Valve Backflow Preventer 3/4 Hose Drop Vacuum Breaker, Size 3/4 Inch, Brass | AE3BBJ 5AJ89

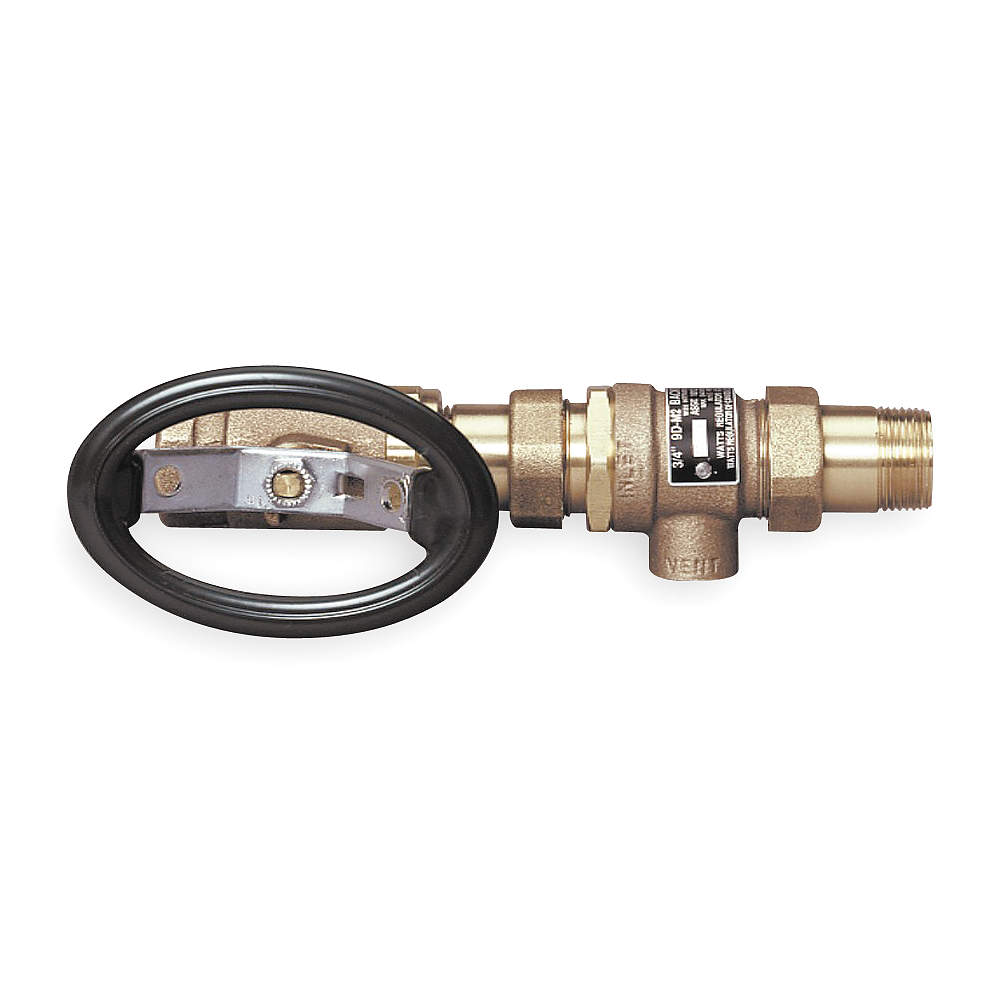

WATTS 912-HP 3/4" Hose Drop Vacuum Breaker, Size 3/4 Inch, Brass

Item: AE3BBJ Model: 912-HP 3/4"Cross Ref: 5AJ89
In Stock

Get it by Monday, Jun 16

Free Shipping Eligible. Free shipping is applicable on orders over €150 and products weighing less than 5 kg. Products exceeding 5 kg will incur the default shipping charges.

€780.83 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemDual Check Valve
Application - ValvesGeneral Purpose
Body FinishPlain
Connection TypeFNPT x MNPT
Disc MaterialRubber
FittingNo
Flow DesignDual With Vent
Inlet Size3/4"
Inlet TypeFemale Threaded
Length9.187"
MaterialBrass
Max. Steam Pressure - ValvesNot Rated
Max. Temp.180°F
Max. Working Pressure27.5 Bar
Meter TypeNo Meter
OperationContinuous
Outlet Size3/4"
Outlet TypeMale Threaded
Pipe Or Tube Size3/4"
Pipe Or Tube Size - Check Valves3/4"
Products By IndustryFood Processing
Seat MaterialPTFE
Series912 HP Series
Size3/4"
StrainerYes
TypeKit
Valve TypeNo Shutoff Valve
Body MaterialBrass
Connection Gender - Side 1Female
Connection Gender - Side 2Male
Connection Size - Side 13/4"
Connection Size - Side 23/4"
Connection Type - Side 1NPT
Connection Type - Side 2NPT
Flow Rate22 GPM
For MediaWater
Hazard Protection LevelLow Health Hazard
IncludesStrainer
Includes Atmospheric VentAtmospheric Vent Included
Manufacturer Warranty1 yr.
Max. Media Temperature180°F
Max. Pressure (cwp)400 psi
Media Temp. Range180°F to 180°F
Min. Media Temperature180°F
Mounting OrientationHorizontal, Vertical
Overall Height2.43"
Overall Width9.18"
Pipe Size3/4"
Protection TypeBack Pressure, Back Siphonage
StandardsASSE 1012, CSA B64.8, CSA B643
Valve Series912HP

Shipping Info:

Ship weight (kg) 1.4175
Ship height (cm)23.62
Ship length (cm)13.97
Ship width (cm)8.13
HS code8481309000
Country of OriginUS
