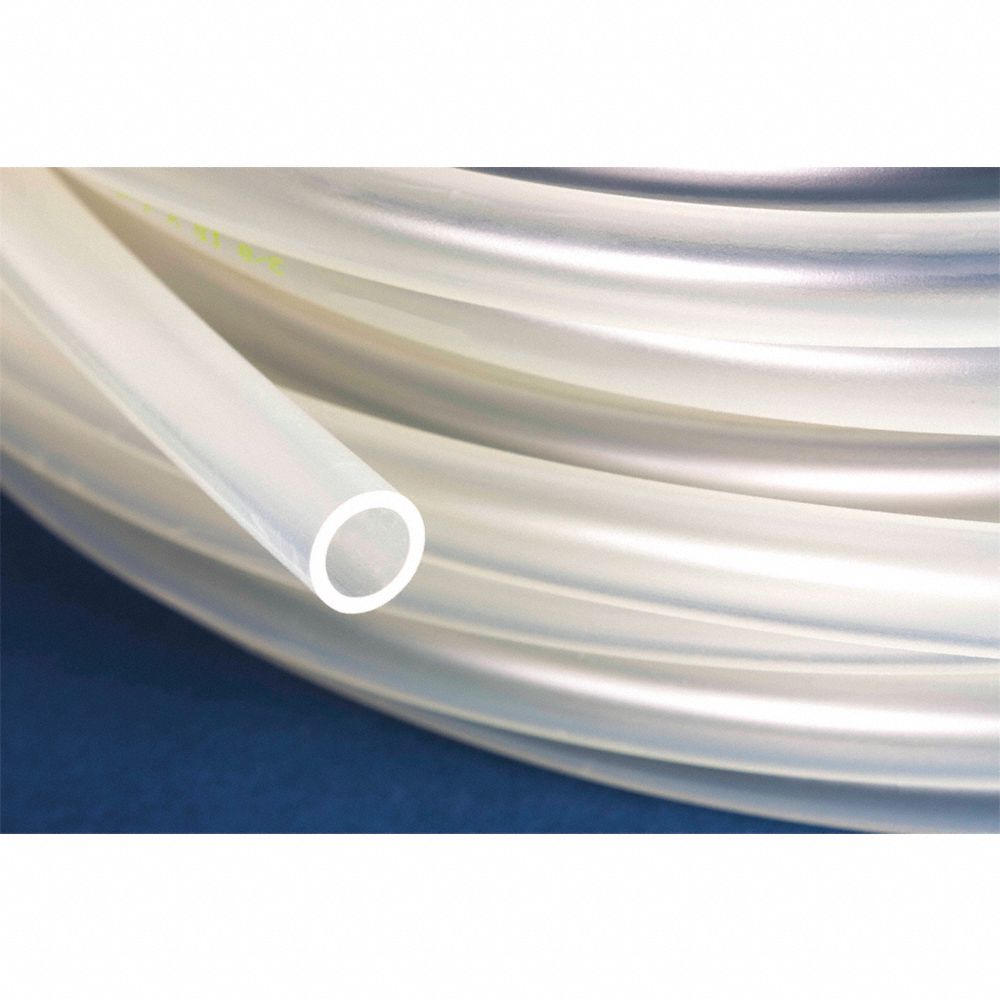

TYGON AAA00011 PVC Tubing, SAE, 3/16 Inch Inside Dia., 1/4 Inch Outside Dia. | CH9CAH 2LPX8

TYGON AAA00011 PVC Tubing, SAE, 3/16 Inch Inside Dia., 1/4 Inch Outside Dia.

Item: CM9AQL Model: AAA00011Cross Ref: 2LPX8
In Stock

Get it by Wednesday, Jun 11

Flat Shipping at €24.99 + VAT €24.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.

€58.01 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemTubing
ApplicationBeverage, Food, Water
AutoclavableYes
Bend Radius1" , 4"
Beverage Food And Water CompatibilityBeer, Citric Acid, Dairy, Distilled Water, Glycerin, Milk, Non Potable Water, Orange Juice, Potable Water, Salt Water, Soft Drinks, Vinegar
Beverage, Food, And Water CompatibilityBeer, Citric Acid, Dairy, Distilled Water, Glycerin, Milk, Non Potable Water, Orange Juice, Potable Water, Salt Water, Soft Drinks, Vinegar
ClarityClear
ColorClear
FeaturesSmooth Non Porous Bore
Fitting CompatibilityBarbed
FlexibilityFlexible
Food And Beverage CompatibilityBeer, Citric Acid, Dairy, Distilled Water, Glycerin, Milk, Non-Potable Water, Orange Juice, Potable Water, Salt Water, Soft Drinks, Vinegar
For EnvironmentSanitary
For Fluid TypeBeverages
Inside Dia.3/16"
Jacket ColorClear
Length50 ft.
MaterialPVC
Material Trade NumberB-44-4X
Max. Pressure25 psi
Outside Dia.1/4"
Peristaltic Pump CompatibleYes
Petroleum Product CompatibilityMineral Oil
Pex TypeNot Applicable
Resistance PropertiesAlkali Resistant, Tear Resistant
Sae Or MetricSAE
Stripe ColorNo Stripe
System Of MeasurementInch
Temp. Range-32°F to +165°F
Tensile Strength2200 psi
Tube Bend Radius4"
Tube FormCoil
Vacuum11 in. hg
Wall Thickness0.03" , 0.031"
Inside Diameter3/16"
Maximum Vacuum Pressure11 in. hg
Outside Diameter1/4"
Overall Length50 ft.
ReinforcementNot Reinforced
Standards3-A SANITARY STANDARDS, FDA CFR PART 175.300, NSF 51

Shipping Info:

Ship weight (kg) 0.4095

Product Variants

ProductModelOutside Dia.Inside Dia.Wall ThicknessVacuumMaterialColorClarityFlexibilityPrice
TYGON AAA00002 PVC Tubing, SAE, 1/16 Inch Inside Dia., 1/8 Inch Outside Dia. | CH9CAB 2LPX1 AAA000021/8"1/16"0.031"29.9 in. hgPVCClearClearFlexible€25.80
TYGON AAA00003 PVC Tubing, SAE, 1/16 Inch Inside Dia., 1/8 Inch Outside Dia. | CH9CAC 2LPX2 AAA000031/8"1/16"0.062"29.9 in. hgPVCClearClearFlexible€55.99
TYGON AAA00006 PVC Tubing, SAE, 1/8 Inch Inside Dia., 3/16 Inch Outside Dia. | CH9CAD 2LPX4 AAA000063/16"1/8"0.031"25 in. hgPVCClearClearFlexible€38.76
TYGON AAA00007 PVC Tubing, SAE, 1/8 Inch Inside Dia., 1/4 Inch Outside Dia. | CH9CAE 2LPX5 AAA000071/4"1/8"0.062"29.9 in. hgPVCClearClearFlexible€65.96
TYGON AAA00009 PVC Tubing, SAE, 5/32 Inch Inside Dia., 7/32 Inch Outside Dia. | CH9CAF 2LPX6 AAA000097/32"5/32"0.031"16 in. hgPVCClearClearFlexible€50.42
TYGON AAA00010 PVC Tubing, SAE, 5/32 Inch Inside Dia., 9/32 Inch Outside Dia. | CH9CAG 2LPX7 AAA000109/32"5/32"0.062"29.9 in. hgPVCClearClearFlexible€106.51
TYGON AAA00012 PVC Tubing, SAE, 3/16 Inch Inside Dia., 5/16 Inch Outside Dia. | CH9CAJ 2LPX9 AAA000125/16"3/16"0.062"29.9 in. hgPVCClearClearFlexible€131.42
