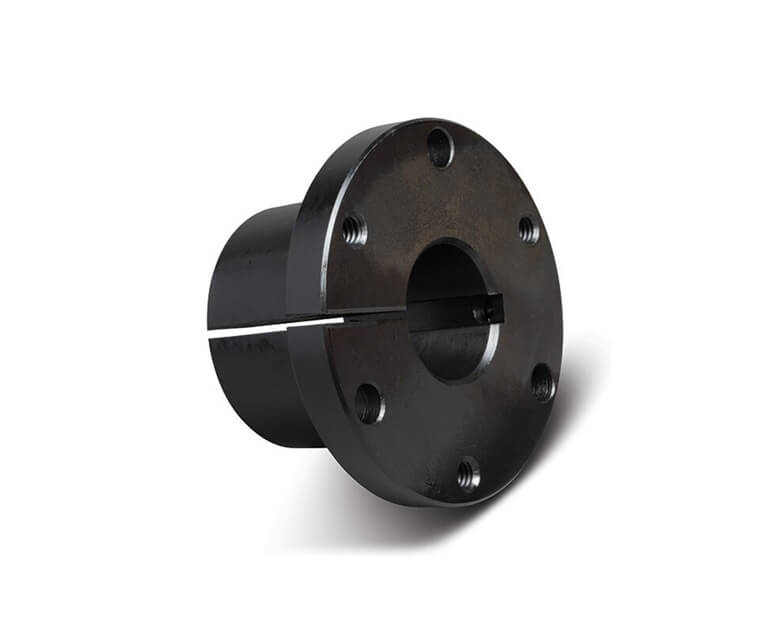

TB WOODS SD178 Quick Detachable Bushing Series Sd Bore 1-7/8 In | AE7JAF 5YLH0

TB WOODS SD178 QD Bushing, Steel, SD Size, 1.875 inch Bore Dia., Shallow Keyway

Item: AE7JAF Model: SD178Cross Ref: 5YLH0
In Stock

Get it by Friday, Jun 13

Flat Shipping at €24.99 + VAT €24.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.

€56.55 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemQuick Detachable Bushing
Bolt Circle Dia.2.688"
Bore Bushing SeriesSD
Bore Dia.1 7/8"
Bore Size1 mm
Bore TypeFinished With Keyway
BushingStandard
Coupling SizeSD
Dimension A11/25"
Dimension B2.188"
Dimension D3.188"
Dimension E1.38"
Dimension F1 1/4"
Dimension L1.81"
HardwareImperial Series
Key Size1/2" x 1/16"
KeywayShallow
Length1.812"
MaterialSteel
Mounting TypeConventional Or Reverse
SeriesSD
SizeSD
Taper3/4"
Torque5000 lbs.-in.
TypeQD Bushing , Standard
Weight1 lbs.
Bolt Circle Diameter2.69"
Bolt Size1/4"-20 x 1 7/8"
Bore Diameter1 7/8"
Bore System Of MeasurementInch
Bushing TypeQuick Detachable
Flange Thickness7/16"
Flange TypeSplit
For Shaft TypeKeyed
Includes(3) Cap Screws
Keyway Depth1/4"
Keyway Width1/2"
Large Barrel Diameter2.188"
Length Less Flange1 3/8"
Maximum Torque5000 lbs.-in.
Overall Diameter3.188"
Overall Length1.813"
Sae Grade5

Shipping Info:

Ship weight (kg) 0.45
Ship height (cm)8.89
Ship length (cm)8.89
Ship width (cm)4.83
HS code8483909500
Country of OriginUS

Product Variants

ProductModelTorqueBore Dia.Bolt Circle Dia.TypeMounting TypeBushingBore SizeKey SizePrice
TB WOODS SD11116 Quick Detachable Bushing Series Sd Bore 1-11/16 Inch | AA2PXJ 10Y298 SD111165000 lbs.-in.1.688"2.688"StandardConventional Or ReverseStandard1 mm3/8" x 3/16"€52.30
TB WOODS SD11516 Quick Detachable Bushing Series Sd Bore 1-15/16 Inch | AA2PXK 10Y299 SD115165000 lbs.-in.1.938"2.688"StandardConventional Or ReverseStandard1 mm1/2" x 1/16"€52.30
TB WOODS SD1316 Quick Detachable Bushing Series Sd Bore 1-3/16 Inch | AA2PXL 10Y301 SD1316-1.187"4.687"-----€52.30
TB WOODS SDS11116 Quick Detachable Bushing Series Sds Bore 1-11/16 Inch | AA2PXM 10Y302 SDS111165000 lbs.-in.1.688"2.688"StandardConventional Or ReverseStandard1 mm3/8" x 3/16"€42.38
TB WOODS SDS11516 Quick Detachable Bushing Series Sds Bore 1-15/16 Inch | AA2PXN 10Y303 SDS115165000 lbs.-in.1.938"2.688"StandardConventional Or ReverseStandard1 mm1/2" x 1/16"€43.31
TB WOODS SDS178 Quick Detachable Bushing Series Sds Bore 1-7/8 Inch | AA2PXP 10Y304 SDS1785000 lbs.-in.1 7/8"2.688"StandardConventional Or ReverseStandard1 mm1/2" x 1/16"€43.39
TB WOODS SDS58 Qd Bushing Series Sds Bore 5/8 Inch | AA2PXQ 10Y305 SDS585000 lbs.-in.5/8"2.688"StandardConventional Or ReverseStandard5/8"3/16" x 3/32"€36.09
