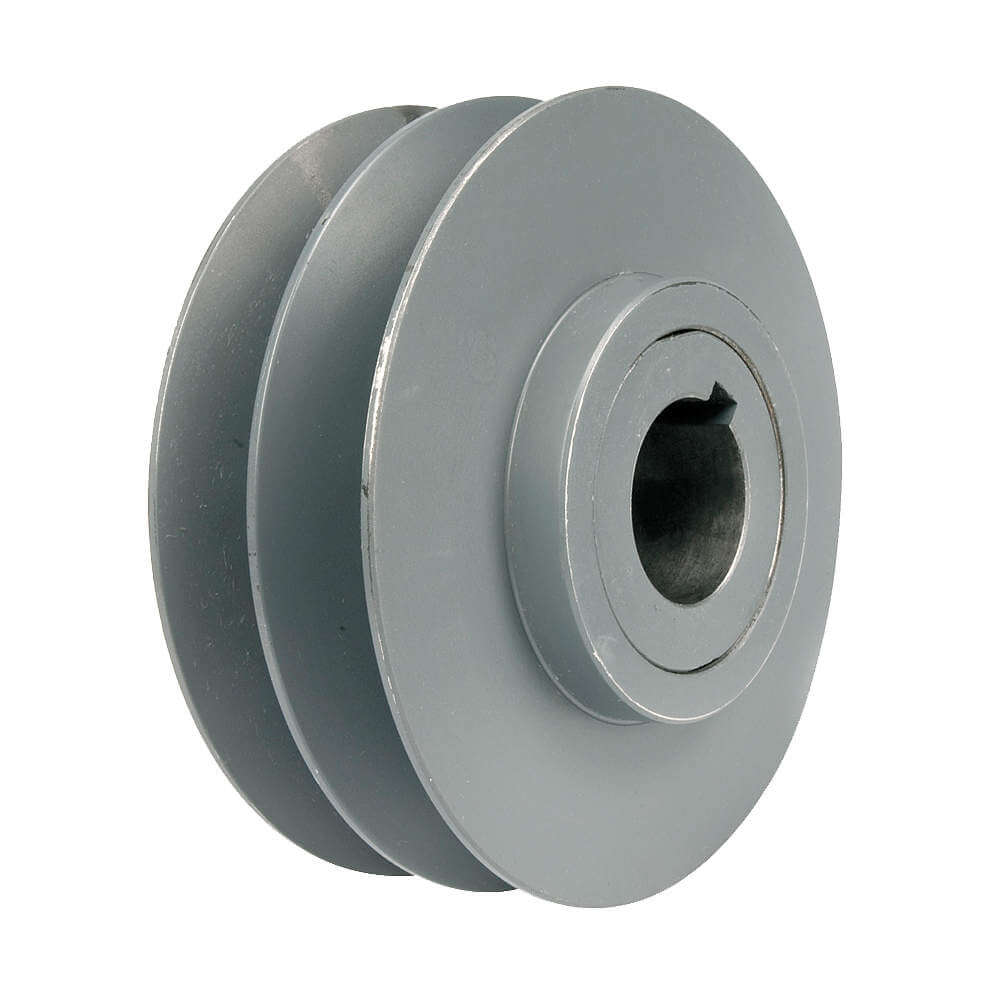

TB WOODS 2VP71138 V-belt Pulley 1-3/8 Variable Pitch 7.1 Outer Diameter Iron | AE6PUG 5UHY7

TB WOODS 2VP71138 V-belt Pulley 1-3/8 Variable Pitch 7.1 Outer Diameter Iron

Item: AE6PUG Model: 2VP71138Cross Ref: 5UHY7
See variants (26)
In Stock
Check Availability

Get it by Thursday, Jun 12

Flat Shipping at €24.99 + VAT €24.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.

€302.17 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemVariable Pitch V-Belt Pulley
4l, A, Or Ax Belt Pitch Dia.5.4" to 6.58"
4la Or A Belt Pitch Dia.5.4" to 6.58"
5l, B, Or Bx Belt Pitch Dia.5.84" to 7.05"
5v Belt Pitch Dia.5.78" to 6.99"
Bore Dia.1 3/8"
Bore TypeFixed Bore
Bushing RequiredNone
ConstructionSolid
Fits Shaft Dia.1.375"
Industry Number2VP71138
Keyway Size0.312"
MaterialCast Iron
No. Of Grooves2
Outside Dia.7.1"
Set Screw IncludedYes
4l Pitch Diameter (maximum)6.3"
4l Pitch Diameter (minimum)5.3"
5l Pitch Diameter (maximum)6 3/5"
5l Pitch Diameter (minimum)5 2/5"
5v Pitch Diameter (maximum)7"
5v Pitch Diameter (minimum)5.8"
5vx Pitch Diameter (maximum)7"
5vx Pitch Diameter (minimum)5.8"
A Pitch Diameter (maximum)6.3"
A Pitch Diameter (minimum)5.3"
Ax Pitch Diameter (maximum)6.3"
Ax Pitch Diameter (minimum)5.3"
B Pitch Diameter (maximum)6 3/5"
B Pitch Diameter (minimum)5.4"
Bore Diameter1 3/8"
Bx Pitch Diameter (maximum)6.6"
Bx Pitch Diameter (minimum)5.4"
FinishAnnealed
For Belt Section4L, 5L, A, AX, B, BX, 5V, 5VX
For V-belt TypeClassical, Wedge, Cogged, Banded
IncludesSet Screw
KeywayYes
Keyway Depth5/32"
Keyway Width5/16"
Length Through Bore3 1/4"
Material FabricationCast
Maximum Face Width2 3/8"
Maximum Pitch Diameter6.3" (4L, A), 6.6" (5L, B), 7" (5V)
Minimum Face Width1.625"
Minimum Pitch Diameter5.3" (4L, A), 5.4" (5L, B), 5.8" (5V)
Number Of Grooves2
Number Of Turns To Fully Open5 (4L, A), 6 (5L, B), 6 (5V)
Outside Diameter7.1"
Overall Width3 1/4"
Pulley ConstructionPlain
Pulley Industry Number2VP71
Pulley SeriesSeries VP
Weight14.6 lbs.

Shipping Info:

Ship weight (kg) 6.57
Ship height (cm)8.64
Ship length (cm)20.07
Ship width (cm)19.81
HS code8483509040
Country of OriginUS

Product Variants

ProductModelOutside Dia.Industry NumberBore Dia.4l, A, Or Ax Belt Pitch Dia.5l, B, Or Bx Belt Pitch Dia.4la Or A Belt Pitch Dia.Fits Shaft Dia.Keyway SizePrice
TB WOODS 2VP3634 V-belt Pulley 3/4 Variable Pitch 3.35 Outer Diameter Iron | AE6PTJ 5UHW6 2VP36343.35"2VP36343/4"2.88" to 3.35"3.13" to 3.41"2.88" to 3.35"3/4"0.187" x 0.093"€131.45
TB WOODS 2VP3658 V-belt Pulley 5/8 Variable Pitch 3.35 Outer Diameter Iron | AE6PTK 5UHW7 2VP36583.35"2VP36585/8"2.88" to 3.35"3.13" to 3.41"2.88" to 3.35"5/8"0.187" x 0.093"€130.86
TB WOODS 2VP3678 V-belt Pulley 7/8 Variable Pitch 3.35 Outer Diameter Iron | AE6PTL 5UHW8 2VP36783.35"2VP36787/8"2.88" to 3.35"3.13" to 3.41"2.88" to 3.35"7/8"0.187" x 0.093"€128.51
TB WOODS 2VP421 V-belt Pulley 1 Variable Pitch 3.95 Outer Diameter Iron | AE6PTM 5UHW9 2VP4213.95"2VP4211"2.81" to 3.95"3.18" to 4.01"2.81" to 3.95"1"1/4" x 1/8"€140.93
TB WOODS 2VP42118 V-belt Pulley 1-1/8 Variable Pitch 3.95 Outer Diameter Iron | AE6PTN 5UHX0 2VP421183.95"2VP421181 1/8"2.81" to 3.95"3.18" to 4.01"2.81" to 3.95"1.125"1/4" x 1/8"€140.93
TB WOODS 2VP4258 V-belt Pulley 5/8 Variable Pitch 3.95 Outer Diameter Iron | AE6PTP 5UHX1 2VP42583.95"2VP42585/8"2.81" to 3.95"3.18" to 4.01"2.81" to 3.95"5/8"0.187" x 0.093"€140.93
TB WOODS 2VP4278 V-belt Pulley 7/8 Variable Pitch 3.95 Outer Diameter Iron | AE6PTQ 5UHX2 2VP42783.95"2VP42787/8"2.81" to 3.95"3.18" to 4.01"2.81" to 3.95"7/8"0.187" x 0.093"€140.93
