STAUFF SP-426.9-ACT-DP-AS-U-W5-K-642012 Beta Clamp, Smooth Bore, 316 Stainless Steel Clamp, Polypropylene Cushion | CU4PJH

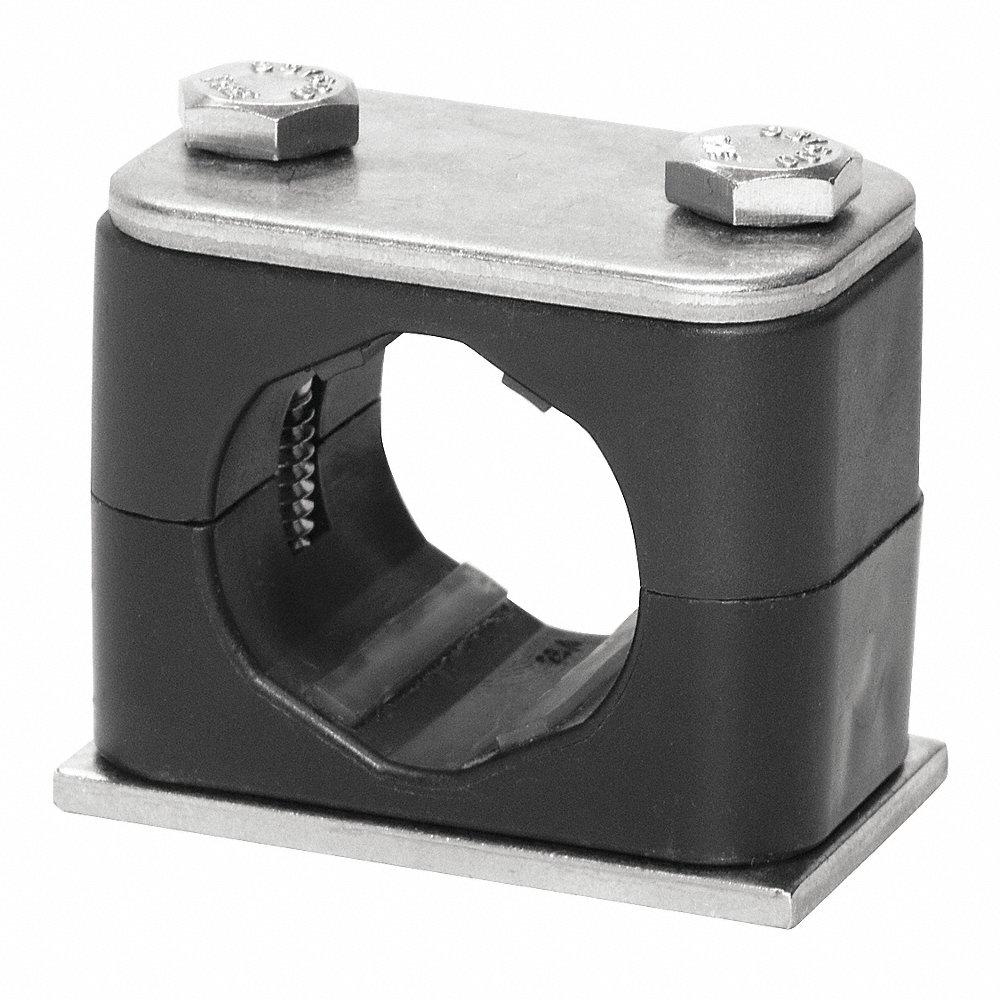

STAUFF SP-426.9-ACT-DP-AS-U-W5-K-642012 Beta Clamp, Smooth Bore, 316 Stainless Steel, Polypropylene Cushion

Item: CU4PJH Model: SP-426.9-ACT-DP-AS-U-W5-K-642012Cross Ref: 49AG14
In Stock

Get it by Wednesday, Jun 11

Flat Shipping at €24.99 + VAT €24.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.

€44.61 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemClamp
Bolt Head Size6.406 mm
Bolt Length47.594 mm
Bore StyleSmooth
Clamp GradeGrade 316
Clamp MaterialStainless Steel
Clamp Material FinishElastomer
Clamp StyleWeld Mount Clamp
Clamp TypeWeld Mount Assembly
Cushion MaterialPolypropylene
For Maximum Outside Diameter26.875 mm
For Number Of Lines1
For Outside Diameter26.875 mm
Height52 mm
Load Capacity1570 lbs.
Max. Operating Pressure2000 psi
Max. Operating Temp.194°F
Mfr. SeriesStandard Series
Min. Operating Temp.-13°F
Mounting TypeWeld On
Overall Length59.906 mm
Overall Width59.906 mm
Resistance PropertiesOil Resistant, Rain Resistant, Seawater Resistant
System Of MeasurementMetric
Maximum Operating Pressure2000 psi
Mount TypeWeld On
Overall Height52 mm
StandardsAPI RP 552, DIN 3015-1, NACE SP 0108-2008

Shipping Info:

Ship weight (kg) 0.135
Ship height (cm)5.2
Ship length (cm)5.99
Ship width (cm)5.99
Country of OriginDE
