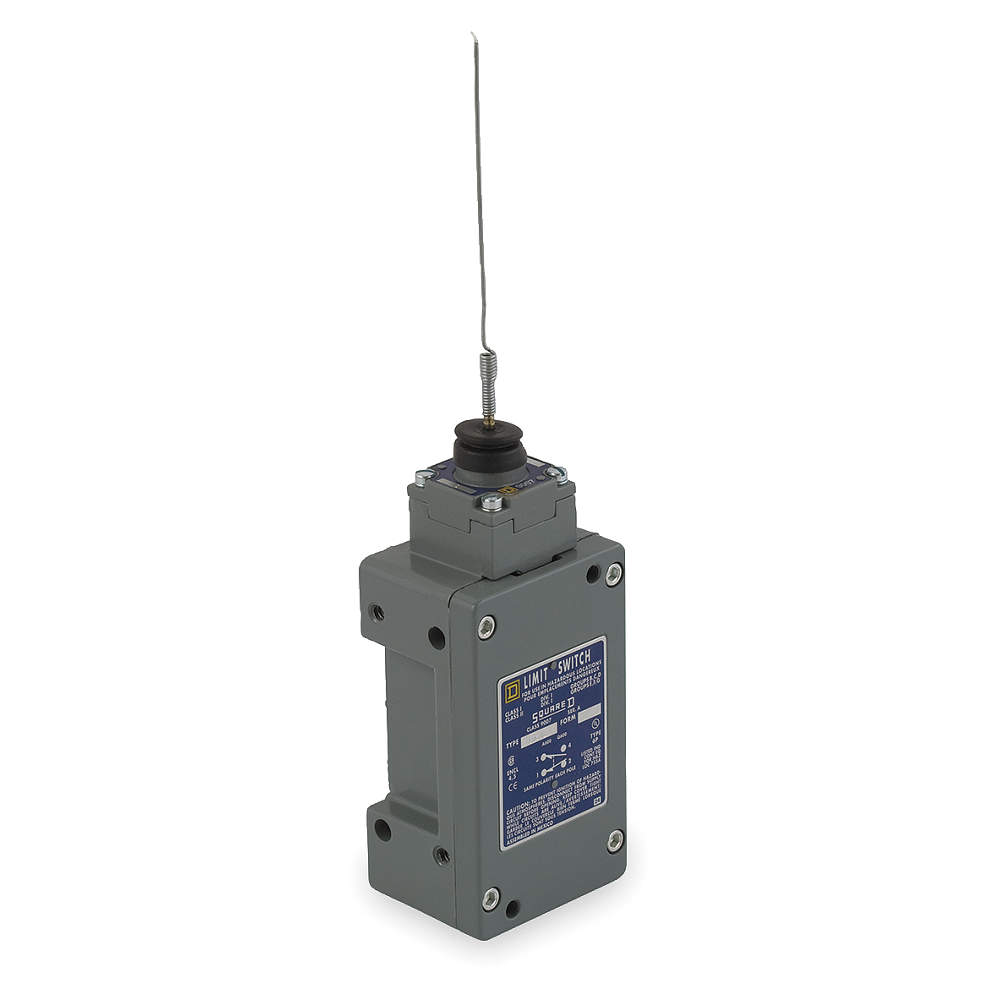

SQUARE D 9007CR53L Heavy Duty Limit Switch Top Actuator 1no/1nc | AF9JYM 2UYP3

SQUARE D 9007CR53L Heavy Duty Limit Switch Top Actuator 1no/1nc

Item: AF9JYM Model: 9007CR53LCross Ref: 2UYP3
Limited Availability

Get it by Tuesday, Jun 17

Request a Quote

Payment

Delivery

Product Specifications:

ItemHeavy Duty Limit Switch
Actuator Length5.05"
Actuator LocationTop
Actuator StyleWobble Stick
Body MaterialAluminum
CertificationUL Class I Groups B, C, D And Class II Groups E, F, G
Depth2.08"
Electrical ConnectionScrew Terminals
Height6.1"
MovementAny Direction
Nema RatingNEMA 1, NEMA 12, NEMA 13, NEMA 2, NEMA 4, NEMA 6, NEMA 6P, NEMA 7, NEMA 9
Operating Temp. Range0°F to +185°F
Travel Length90°
Width2 18/25"
Ac Contact Rating10A @ 600V
Actuator TypeCat Whisker
Body Depth2.08"
Body Height4.25"
Body StyleX
Body Width2.72"
Boot Sealed ActuatorNo Boot Included
Contact Form1NO/1NC
Dc Contact Rating10 A @ 600 V
Directional MovementOmnidirectional
Hazardous Location SpecificationClass I, Div 1, Group B, C, D, Class II, Div 1, Group E, F, G
Ip RatingIP67
Manufacturer Warranty Length18 Months
Mounting Hole Diameter1/5"
Mounting Hole Horizontal Center To Center Distance30 mm
Mounting Hole Vertical Center To Center Distance60 mm
Mounting StyleSurface
Nema Enclosure RatingNEMA 1, NEMA 2, NEMA 4, NEMA 6, NEMA 6P, NEMA 12, NEMA 13
Number Of Mounting Holes2
Operating Temperature - Maximum185°F
Operating Temperature - Minimum-20°F
Operating Torque - Maximum0.44 lbs.-in.
Overall Depth2.08"
Overall Height11 2/5"
Overall Width2 18/25"
Pretravel20°
Resistance PropertiesShock Resistant, Vibration Resistant
Series9007CR Series
StandardsCSA C22.2 NO.14, UL 508
Total Travel90°

Shipping Info:

Ship weight (kg) 1.125
Ship height (cm)16.51
Ship length (cm)41.96
Ship width (cm)6.5
HS code8536509055
Country of OriginMX

Product Variants

ProductModelActuator StyleMovementHeightOperating Temp. RangeDepthBody MaterialTravel LengthOperating ForcePrice
SQUARE D 9007AW12 Heavy Duty Limit Switch Side Actuator 1no/1nc | AF9FWF 2EF40 9007AW12No Lever, Rotary HeadCCW/CW3.9"-65°F to +185°F3"Zinc--€309.93
SQUARE D 9007AW14 Heavy Duty Limit Switch Side Actuator 1no/1nc | AF9FWG 2EF41 9007AW14No Lever, Rotary HeadCW/CCW3.9"-65°F to +185°F3"Zinc--€476.33
SQUARE D 9007AW16 Heavy Duty Limit Switch Side Actuator 1no/1nc | AF9FWH 2EF42 9007AW16No Lever, Rotary HeadCCW/CW3.9"-65°F to +185°F3"Zinc--€586.77
SQUARE D 9007AW36 Heavy Duty Limit Switch Top Actuator 1no/1nc | AF9FWK 2EF46 9007AW36PlungerHorizontal3.9"0°F to +185°F3"Zinc1/4"3 lbs.€552.41
SQUARE D 9007AW46 Heavy Duty Limit Switch Top Actuator 1no/1nc | AF9FWM 2EF49 9007AW46PlungerVertical3.9"0°F to +185°F3"Zinc1/4"3 lbs.€552.41
SQUARE D 9007C52A2 Heavy Duty Limit Switch Side Actuator 1no/1nc | AF9FWQ 2EF73 9007C52A2Rotary Lever ArmCW/CCW/Low Differential3.14"-20°F to +185°F1.79"Zinc90°4 lbs.-in.€272.80
SQUARE D 9007C52D Heavy Duty Limit Switch Top Actuator 1no/1nc | AF9FWT 2EF75 9007C52DPlungerHorizontal3.14"0°F to +185°F1.79"Zinc1/4"4 lbs.€353.42
