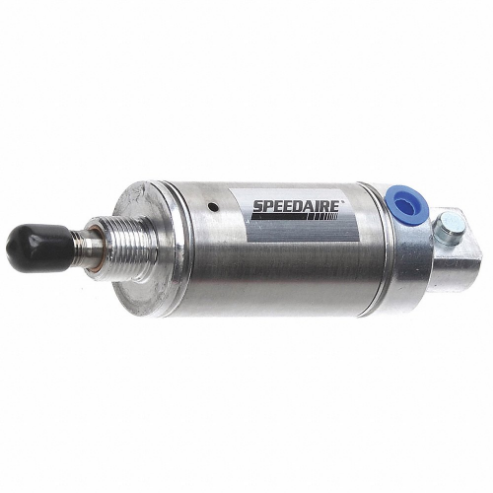

SPEEDAIRE 5ZEN7 Air Cylinder 1 Inch Stroke 5-1/4 Inch Length | AE7MCP

SPEEDAIRE 5ZEN7 Air Cylinder 1 Inch Stroke 5-1/4 Inch Length

Item: AE7MCP Model: 5ZEN7
Limited Availability
Request a Quote

Payment

Delivery

Product Specifications:

ItemAir Cylinder
Actuation TypeAir Extend, Spring Retract
Air Cylinder TypeRound Body
Body MaterialStainless Steel
Body Material FinishSilver Plated
Bore Dia.1 1/2"
Cushion TypeNone
Cylinder ActionSingle Acting
End Cap MaterialAluminum
FeaturesNon-Switch Ready
FinishSilver
For Fluid TypeAir
Inlet GenderFemale
Magnetic PistonNo
Max. Pressure250 psi
Mounting TypePivot
Nose Mount Thread3/4"-16
Overall Length5 1/4"
Piston MaterialAluminum
Piston Rod MaterialStainless Steel
Pivot Hole Dia.0.376"
Port Size0.125"
Rod Dia.7/16"
Rod Thread Length3/4"
Rod Thread Size7/16"-20
Rod Thread TypeFine
Single Acting/double ActingSingle Acting
Spring Retraction Force6 lbs.
Stroke1"
System Of MeasurementInch
Tube MaterialStainless Steel
TypeRound Body
Bore Diameter1 1/2"
Cylinder TypeRound Body
Maximum Operating Pressure250 psi
Maximum Operating Temperature165°F
Minimum Operating Temperature-10°F
Mounting StylePivot
Nose Mount Thread Size3/4"-16
Overall Height6 1/16"
Repairable CylinderNon-Repairable
Rod Diameter7/16"
Stroke Length1"

Shipping Info:

Ship weight (kg) 0.315
Ship height (cm)3.81
Ship length (cm)16.51
Ship width (cm)3.81
HS code8412310080
Country of OriginUS
