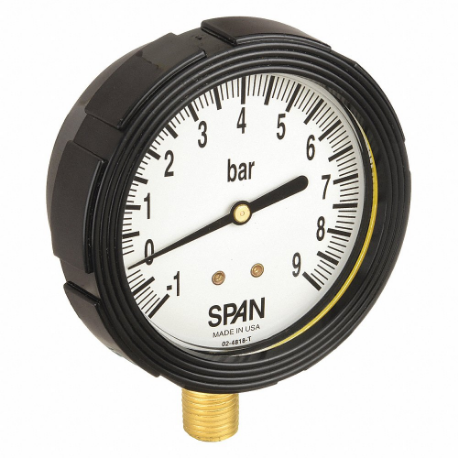

| Item | Compound Gauge |
| Accuracy | -1% to +1% |
| Accuracy Grade | Grade 1A |
| Accuracy Scale | Full Scale |
| Ambient Temp. Range | -40°F to +150°F |
| Application | Fire Monitoring, Hydraulics, Marine, Military, Transportation, Waste Water Or Slurry, Water Purification Or Irrigation , Mobile Hydraulic Equipment, Fire Apparatus, Water Purification/Irrigation, Bulk Transport Trailers, Waste Water/Slurry, Military, Marine |
| Basic Gauge Case Material | Plastic |
| Basic Gauge Sensor Material | Copper |
| Basic Gauge Socket Material | Brass |
| Bezel Material | Zytel Nylon |
| Bezel Mounting Type | Removable |
| Blowout Safety Back | No |
| Calibration Certificate Included | No |
| Case Color | Black |
| Case Construction | Corrosion Resistant |
| Case Depth | 1.41" |
| Case Dia. | 2 4/5" |
| Cleaned For Oxygen Service | No |
| Color | Black |
| Connection Location | Bottom |
| Dial Color | White |
| Dial Face Material | Aluminum |
| Dry Dampening Feature | None |
| Field Fillable | No |
| Freeze Resistant Movement | No |
| Gauge Case Color | Black |
| Gauge Case Liquid | Glycerin |
| Gauge Connection Location | Bottom |
| Gauge Connection Size | 1/4" |
| Gauge Filled With | Glycerin |
| Gauge Nominal Dial Size | 2 1/2" |
| Gauge Panel Mountable | No |
| Gauge Primary Range No.ed Graduations | 2 |
| Gauge Socket Material | Brass Alloy |
| Gauge Wetted Parts | Brass, Bronze |
| Graduations | 2 Bar |
| Hazardous Location Rating | Not Rated |
| Includes Mounting Hardware | No |
| Includes Vent Plug | No |
| Ip Rating, Nema Rating | IP65, NEMA 4X |
| Lens Material | Acrylic , Plastic |
| Liquid Filled | Yes |
| Liquid-filled Case | Yes |
| Mfr. Series | LFS-210 |
| Mounting Hardware Included | No |
| Mounting Type | Stem Mount |
| Movement Material | Copper Alloy |
| Movement Type | Swiss |
| Nominal Dial Size | 2 1/2" |
| Non-sparking | No |
| Panel-mountable | No |
| Pointer Color | Black |
| Pointer Material | Aluminum |
| Pressure And Vacuum Gauge Type | Compound Gauge |
| Pressure Gauge Type | Industrial Pressure Gauge |
| Pressure Range | 1 Bar to 0 Bar to 9 Bar |
| Pressure Range Type | Compound |
| Primary Scale Minor Graduations | 0.2 |
| Primary Scale Numeric Increments | 2 , 2.0 |
| Primary Scale Units | Bar |
| Process Connection Gender | Male |
| Process Connection Location | Bottom |
| Process Connection Size | 1/4" |
| Process Connection Type | NPT |
| Removable Bezel | Yes |
| Scale Type | Single |
| Sensor Material | Phosphor Bronze |
| Sensor Type | Bourdon Tube |
| Smallest Graduation | 0.2 Bar |
| Socket Material | Brass |
| Vibration Resistance | Liquid Filled |
| Ambient Operating Temperature Range | -40°F to +150°F |
| Case Diameter | 2.8" |
| Case Material | Nylon |
| Dial Face Color | White |
| Gauge Accuracy Grade | Grade 1A Industrial |
| Gauge Case Material | Zytel Nylon |
| Includes Calibration Certificate | No |
| Ip/nema Rating | IP65, NEMA 4X |
| Lens Material - Gauge | Plastic |
| Primary Pressure Range | 0 to 9 |
| Process Connection | 1/4" NPT Male |
| Series | LFS-210 Series |
| Standards | ANSI/ASME |
| Wetted Parts Material | Brass, Phosphor Bronze |
