SIEMENS 52BR8JRG Illuminated Push Button, Turn To Release, Red, 6V Ac, Incandescent | CU2ULG

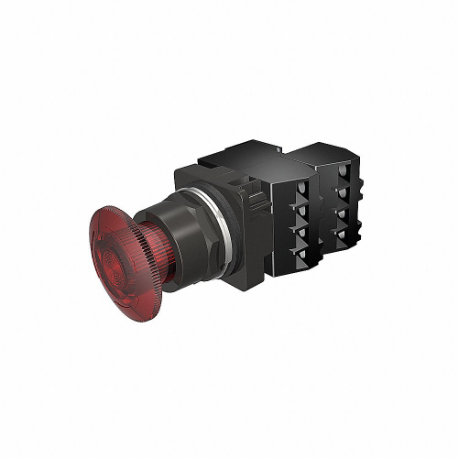

SIEMENS 52BR8JRG Illuminated Push Button, Turn To Release, Red, 6V Ac, Incandescent

Item: CU2ULG Model: 52BR8JRGCross Ref: 22KM95
In Stock

Get it by Tuesday, Jun 17

Flat Shipping at €24.99 + VAT €24.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.

€243.17 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemIlluminated Push Button
Action TypeTurn To Release
Basic MaterialEpoxy
Bezel MaterialDie Cast Zinc
Contact Form2NC
Contact Rating10A @ 600V AC
FinishEpoxy Coat
Head MaterialPlastic
Head Size45 mm
Head TypeMushroom
Lamp Module TypeTransformer
Lamp Module Voltage480V AC
Lamp TypeIncandescent
Lamp Voltage6V AC
Nema Contact Rating DesignationA600/P600
Nema RatingNEMA 1, NEMA 12, NEMA 13, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X
Number Of Operators1
Replacement LampsMFR. NO. 52AABN
Terminal ConnectionPressure Plate
Ac Contact Rating10A @ 600V
ActionMaintained
Dc Contact RatingNot Rated
Display Qty1
FeaturesBifurcated Movable Contacts, Boots Not Required, NEMA A600/P600 Contacts, Octagonal Mounting Nuts, Positive Indexing Selectors, Positively Driven Contacts, Touchsafe Terminals
Head/lens ColorRed
Ip RatingIP10, IP11, IP14, IP52, IP54, IP56, IP66
Lamp Bulb TypeIncandescent
Lamp Voltage - Maximum480V AC
Maintained Action ReleaseTwist
Manufacturer Warranty Length1 yr.
Mechanical Operating Durability3 x 10^5
Mushroom Head Diameter45.47 mm
Nema Enclosure RatingNEMA 1, NEMA 3, NEMA 3R, NEMA 4, NEMA 4X, NEMA 12, NEMA 13
Number Of Indicator Lights0
Operating Temperature - Maximum158°F
Operating Temperature - Minimum31°F
Operator IlluminationIlluminated
Operator MaterialEpoxy Coated Metal
Operator Voltage Rating - Maximum600V AC
Panel Mounting Hole Diameter30 mm
Product TypePush Button Operators
Push Button StyleMushroom Head
Resistance PropertiesCorrosion Resistant
Series52 Series
StandardsCSA, REACH, UL LISTED

Shipping Info:

Ship weight (kg) 0.2295
Ship height (cm)2.54
Ship length (cm)2.54
Ship width (cm)2.54
Country of OriginMX

Product Variants

ProductModelContact FormLamp Module TypeLamp VoltageLamp Module VoltageLamp TypeContact RatingNema Contact Rating DesignationBezel MaterialPrice
SIEMENS 52BT6D9JV Illuminated Push Button, Maintained/Momentary, Amber, 24V Ac/Dc | CU2TPZ 52BT6D9JV1NCFull Voltage24V AC/DC24V AC/DCIncandescent10A @ 600V ACA600/P600Die Cast Zinc€144.90
SIEMENS 52BT6D9J Illuminated Push Button, Maintained/Momentary, Amber, 24V Ac/Dc | CU2TQA 52BT6D9J1NCFull Voltage24V AC/DC24V AC/DCIncandescent10A @ 600V ACA600/P600Die Cast Zinc€108.67
SIEMENS 52BT6D9JBV Illuminated Push Button, Maintained/Momentary, Amber, 24V Ac/Dc | CU2TQB 52BT6D9JBV1NCFull Voltage24V AC/DC24V AC/DCLED10A @ 600V ACA600/P600Die Cast Zinc€153.76
SIEMENS 52BT6D9K Illuminated Push Button, Maintained/Momentary, Amber, 24V Ac/Dc | CU2TQC 52BT6D9K1NOFull Voltage24V AC/DC24V AC/DCIncandescent10A @ 600V ACA600/P600Die Cast Zinc€108.67
SIEMENS 52BT6D9JB Illuminated Push Button, Maintained/Momentary, Amber, 24V Ac/Dc | CU2TQD 52BT6D9JB1NCFull Voltage24V AC/DC24V AC/DCLED10A @ 600V ACA600/P600Die Cast Zinc€134.47
SIEMENS 52BT6D9KBV Illuminated Push Button, Maintained/Momentary, Amber, 24V Ac/Dc | CU2TQE 52BT6D9KBV1NOFull Voltage24V AC/DC24V AC/DCLED10A @ 600V ACA600/P600Die Cast Zinc€153.76
SIEMENS 52BT6D9AB Illuminated Push Button, Maintained/Momentary, Amber, 24V Ac/Dc | CU2TQF 52BT6D9AB1NO/1NCFull Voltage24V AC/DC24V AC/DCLED10A @ 600V ACA600/P600Die Cast Zinc€156.44
