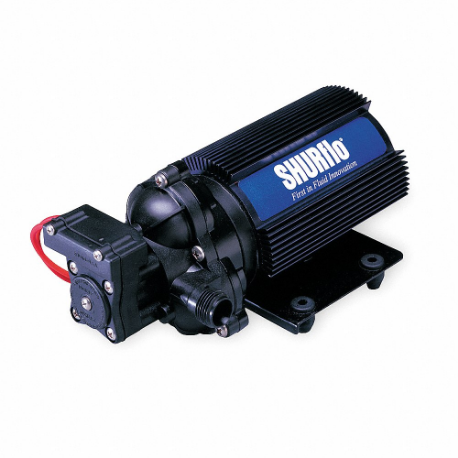

SHURFLO 2088-313-145 Diaphragm Pump, Electric, 2088-313-145, Demand Pressure Switch, Polypropylene, Santoprene

Item: CU2QVJ Model: 2088-313-145Cross Ref: 4UN18
In Stock

Get it by Thursday, Jun 12

Flat Shipping at €24.99 + VAT €24.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.

€431.12 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemDiaphragm Pump
Amps6A
Check Valve MaterialViton
Current6A
Demand Pressure SwitchYes
Diaphragm Chamber Design3
Diaphragm DesignThree Chamber
Diaphragm MaterialSantoprene
Discharge Connection Size1/2"
Discharge Connection TypeNPSM
Duty CycleContinuous
Feet Of Head (maximum)104 ft.
Flow Rate (maximum)3.6 GPM
Flow Rate @ 0 Psi3.6 GPM
Flow Rate @ 20 Psi2.82 GPM
Flow Rate @ 40 Psi2.15 GPM
Flow Rate @ 60 PsiNot Applicable
Fuse Amps15A
Gpm @ 0 Psi3.6 GPM
Gpm @ 20 Psi2.82 GPM
Height4 2/5"
Housing MaterialPolypropylene
Housing Material - PumpsPolypropylene
Intake Connection Size1/2"
Intake Connection TypeNPSM
Length9 4/5"
Manufacturer Warranty LengthLimited Warranty
Max. Discharge Pressure45 psi
Max. Flow3.6 GPM
Max. Flow Rate3.6 GPM
Max. Ft.104 ft.
Max. Media Temp.130°F
Max. Pressure - Pumps45 psi
No. Of Diaphragms3
Operating Pressure (maximum)45 psi
Overall Height4 2/5"
Overall Length9 4/5"
Overall Width5"
Power SourceElectric
Pressure SwitchYes
Pump Operation TypeElectric
Self PrimingYes
Self-primingYes
Suction Port Size1/2"
Suction Port TypeNPSM
Voltage12V DC
Width5"
Discharge Port1/2" NPSM
Manufacturers Warranty LengthLimited Warranty
Max. Feet Of Head104 ft.
Max. Media Temperature130°F
Maximum Flow Rate3.6 GPM
Nameplate Voltage12V DC
Number Of Diaphragms3
PrimingSelf Priming
Series2088 Series
StandardsCSA CERTIFIED, UL LISTED
Suction Port1/2" NPSM

Shipping Info:

Ship weight (kg) 3.3075
Ship height (cm)11.18
Ship length (cm)24.89
Ship width (cm)12.7
Country of OriginMX
