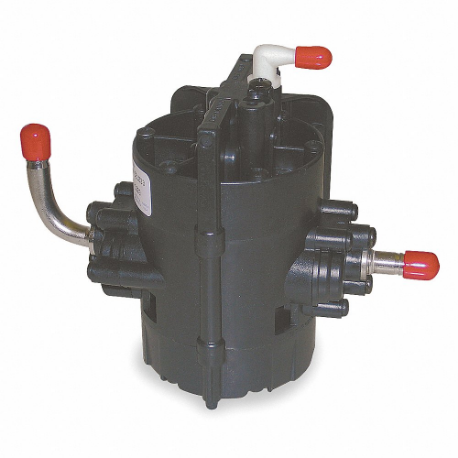

SHURFLO 166-200-57 Diaphragm Pump, Air, 60 PSI

Item: CU2QVG Model: 166-200-57Cross Ref: 4UN15
In Stock

Get it by Thursday, Jun 12

Flat Shipping at €24.99 + VAT €24.99 flat shipping is applicable on orders with an aggregate weight less than 10kg. Orders exceeding 10kg will be charged default shipping rates.

€277.46 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

ItemDiaphragm Pump
Air Consumption0.48 CFM
Air Consumption (maximum)0.48 CFM
Body MaterialPolypropylene
Check Valve MaterialSantoprene
Diaphragm Chamber Design2
Diaphragm MaterialSantoprene
Discharge Connection Size3/8"
Discharge Connection TypeBarbed
Discharge Port Size3/8"
Discharge Port TypeBarbed
Duty CycleContinuous
Feet Of Head (maximum)Not Applicable
Flow Rate (maximum)0.6 GPM
Flow Rate @ 0 PsiNot Applicable
Flow Rate @ 20 PsiNot Applicable
Flow Rate @ 40 PsiNot Applicable
Flow Rate @ 60 Psi0.6 GPM
Fluid Intake Connection Size3/8"
Fluid Intake Connection TypeBarbed
Housing MaterialPolypropylene
IncludesPiston/Diaphragm Assemblies, Valve Seat O-Rings, Valves
Intake Connection Size3/8"
Intake Connection TypeBarbed
Max. Discharge Pressure60 psi
Max. Flow Rate0.6 GPM
Max. Fluid Temp.130°F
Max. Pressure - Pumps60 psi
Operating Pressure (maximum)60 psi
Operation TypeAir Operated
Overall Height6.3"
Overall Length5 4/5"
Overall Width3 4/5"
Pressure SwitchYes
Pump Operation TypeAir
Suction Port Size3/8"
Suction Port TypeBarbed
Fluid Connection Size3/8"
Manufacturers Warranty LengthLimited Warranty
Maximum Air Consumption0.48 CFM
Maximum Flow Rate0.6 GPM
Pump Operation Type - NewAir

Shipping Info:

Ship weight (kg) 0.6885
Ship height (cm)16
Ship length (cm)14.73
Ship width (cm)9.65
Country of OriginMX
