SEALMASTER SFT-26T | BE2GGN

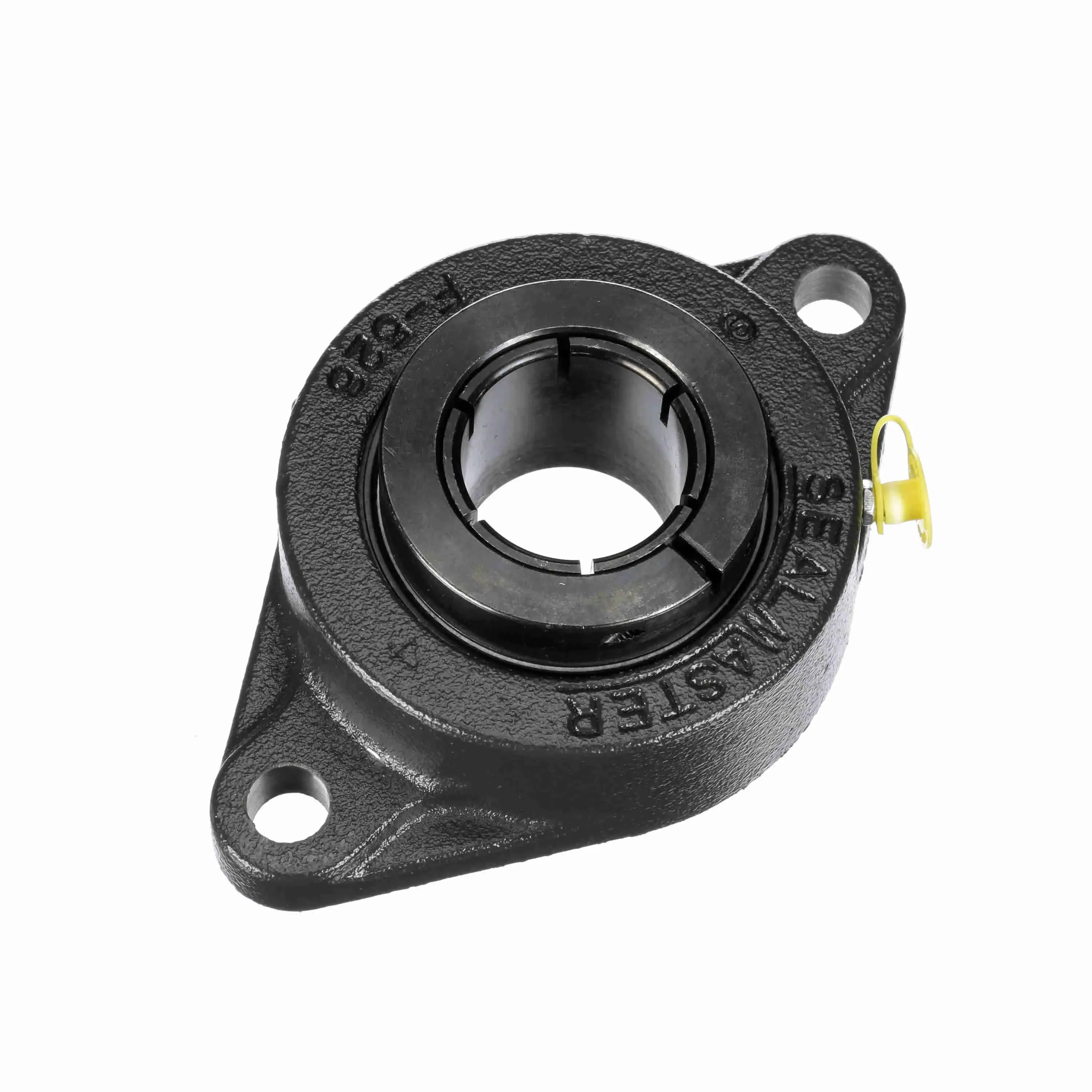

SEALMASTER SFT-26T Mounted Cast Iron Two Bolt Flange Ball Bearing

Item: BE2GGN Model: SFT-26TCross Ref: 705486
In Stock

Get it by Wednesday, Jun 11

€351.71 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Ability To RelubricateYes
Bearing Insert FinishBlack Oxide
Bearing Insert MaterialSteel
Bearing Insert Material Grade52100
Bearing Insert TypeStandard Duty
Bolt Size9/16"
Bolt Spacing5.8438"
Bore Dia.1 5/8"
Bore ShapeStraight
Cage MaterialPolyphenylene Sulfide
Cage TypeLand Riding Retainer
Dynamic Load Capacity7901 lbs.
End CapNo
Fixed Vs. ExpansionFixed
Foot Height14/25"
Grease Fitting Thread Size1/4"-28
Housing CoatingPowder Coated
Housing ColorBlack
Housing ConstructionOne Piece
Housing MaterialCast Iron
Housing StyleFlange Block
Housing TypeFlange, Two Bolt
Htc8483.20.4040
Inner Race Heat Treat MethodZone Hardened
Inner Ring Outside Diameter2.307"
Insert2-110T
Length Through Bore2"
Locking Collar Outside Diameter2.81"
Lubrication TypeLithium Complex NLGI 2 Grease
Max. Operating Temperature220°F
Max. Speed5300 RPM
Misalignment Capability-2° to +2°
Misalignment TypeStatic Only
Outer Ring Land ProfileStandard
Overall Height2.109"
Overall Length7.06"
Overall Width4.38"
Pilot ConfigurationNo Pilot
Radial ClearanceStandard
Rolling ElementBall Bearing
Seal TypeFelt Labyrinth Seal
Shaft Locking TypeConcentric
Size Code2-111
Static Load Rating5139 lbs.

Shipping Info:

Ship weight (kg) 2.385
Ship height (cm)5.87
Ship length (cm)11.76
Ship width (cm)19.05
