SEALMASTER SFC-25C | BD9EWX

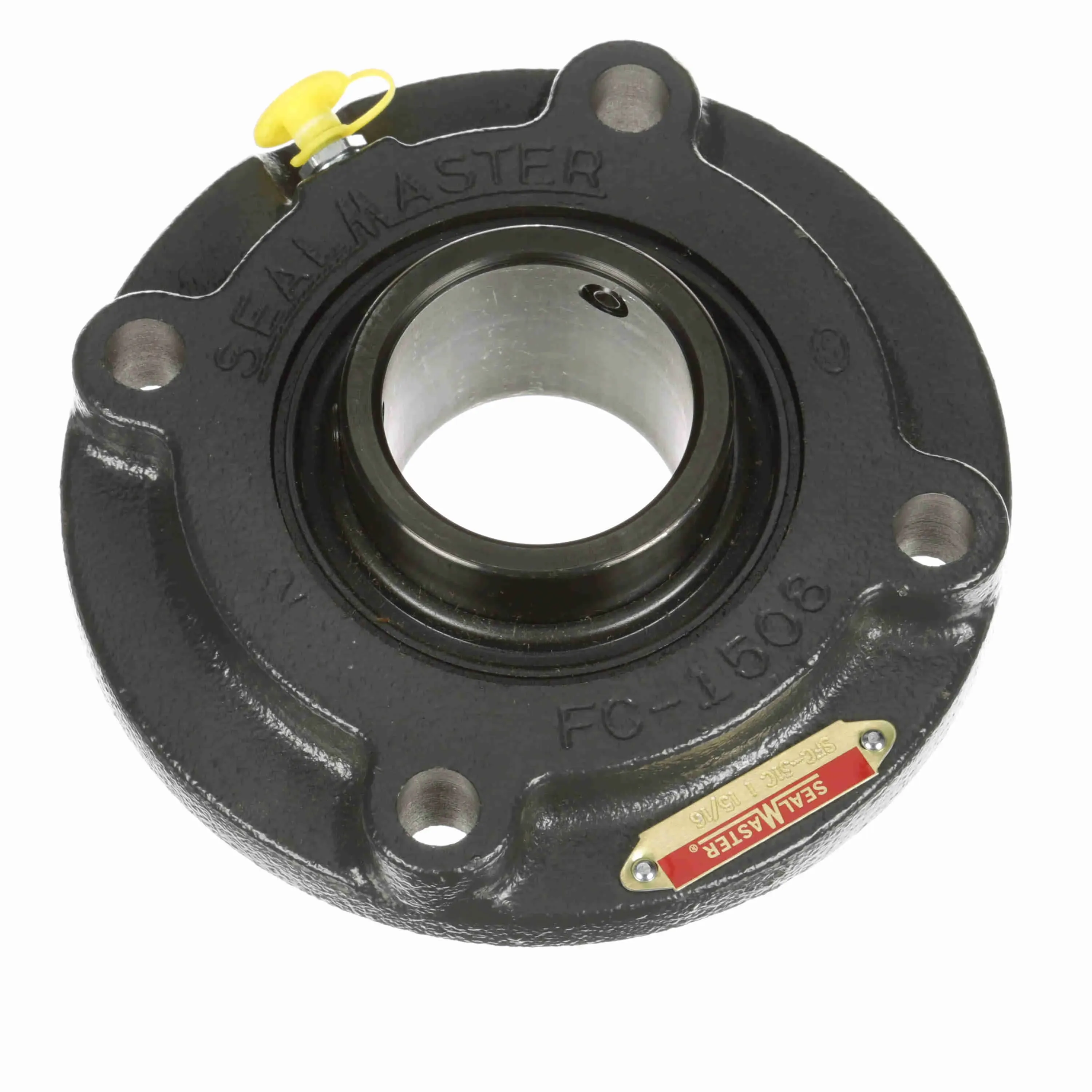

SEALMASTER SFC-25C 703499 Flange-Mount Ball Bearing Unit, 1-9/16 Inch Bore

Item: BD9EWX Model: SFC-25CCross Ref: 703499
In Stock

Get it by Tuesday, Jun 17

€361.39 /unit
Add To Cart
Request a Quote

Payment

Delivery

Product Specifications:

Ability To RelubricateYes
Bearing Insert FinishBlack Oxide
Bearing Insert MaterialSteel
Bearing Insert Material Grade52100
Bearing Insert TypeStandard Duty
Bolt Circle4 3/8"
Bolt Size3/8"
Bore Dia.1 9/16"
Bore ShapeStraight
Cage MaterialPolyphenylene Sulfide
Cage TypeLand Riding Retainer
Dynamic Load Capacity7340 lbs.
End CapNo
Fixed Vs. ExpansionFixed
Foot Height11/25"
Grease Fitting Thread Size1/4"-28
Housing CoatingPowder Coated
Housing ColorBlack
Housing ConstructionOne Piece
Housing MaterialCast Iron
Housing Outside Diameter5 1/4"
Housing StyleFlange Block
Housing TypeFlange, Piloted
Htc8483.20.4040
Inner Race Heat Treat MethodZone Hardened
Inner Ring Outside Diameter2.063"
Insert2-19C SFB ATO
Length Through Bore1.935"
Lubrication TypeLithium Complex NLGI 2 Grease
Max. Operating Temperature220°F
Max. Speed4150 RPM
Misalignment Capability-2° to +2°
Misalignment TypeStatic Only
Outer Ring Land ProfileStandard
Overall Height1.94"
Overall Length5 1/4"
Overall Width5 1/4"
Pilot ConfigurationPIloted
Pilot Depth0.41"
Pilot Diameter3 5/8"
Radial ClearanceStandard
Rolling ElementBall Bearing
Seal TypeSingle Lip Contact Seal
Shaft Locking TypeSet Screw
Size Code2-19
Static Load Rating4467 lbs.
Vibration Frequency Fundamental Train0.0066 cPS
Vibration Frequency Inner Ring Defect0.0909 cPS
Vibration Frequency Outer Ring Defect0.0591 cPS
Vibration Frequency Roller Spin0.0376 cPS

Shipping Info:

Ship weight (kg) 2.115
Ship height (cm)5.41
Ship length (cm)13.97
Ship width (cm)13.97
